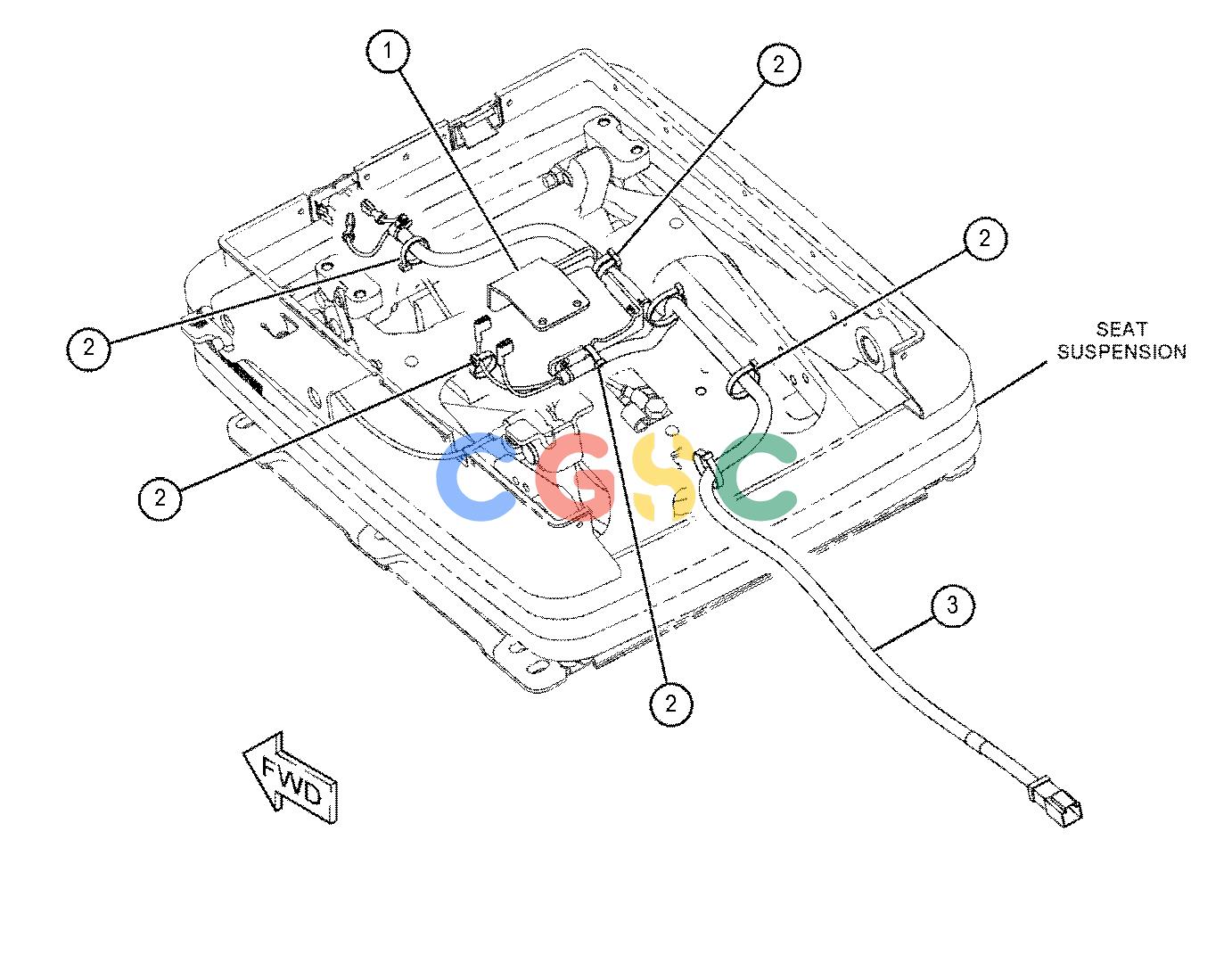

卡特零件查询（730） 467-8080: WIRING GP-SEAT
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 192-7805 | [1] | HARNESS AS-VALVE(SEAT AIR COMPRESSOR) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 5P-4571 | [2] | TERMINAL-BLADE(14-GA TO 16-GA) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 211-5358E | | CONDUIT-FLEXIBLE(64-CM) | |
| 2. | 387-0317 | [1] | WIRE AS(16-GA, BLACK) | |
| 3. | 211-5358E | | CONDUIT-FLEXIBLE(15-CM) | |
| 4. | 3S-2093 | [4] | STRAP-CABLE | |
| 5. | 332-7865 | [1] | TIE-CABLE | |
| | E | | ORDER BY THE CENTIMETER |
