纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-025[02]) - CONTROLS, OPERATOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
218 次

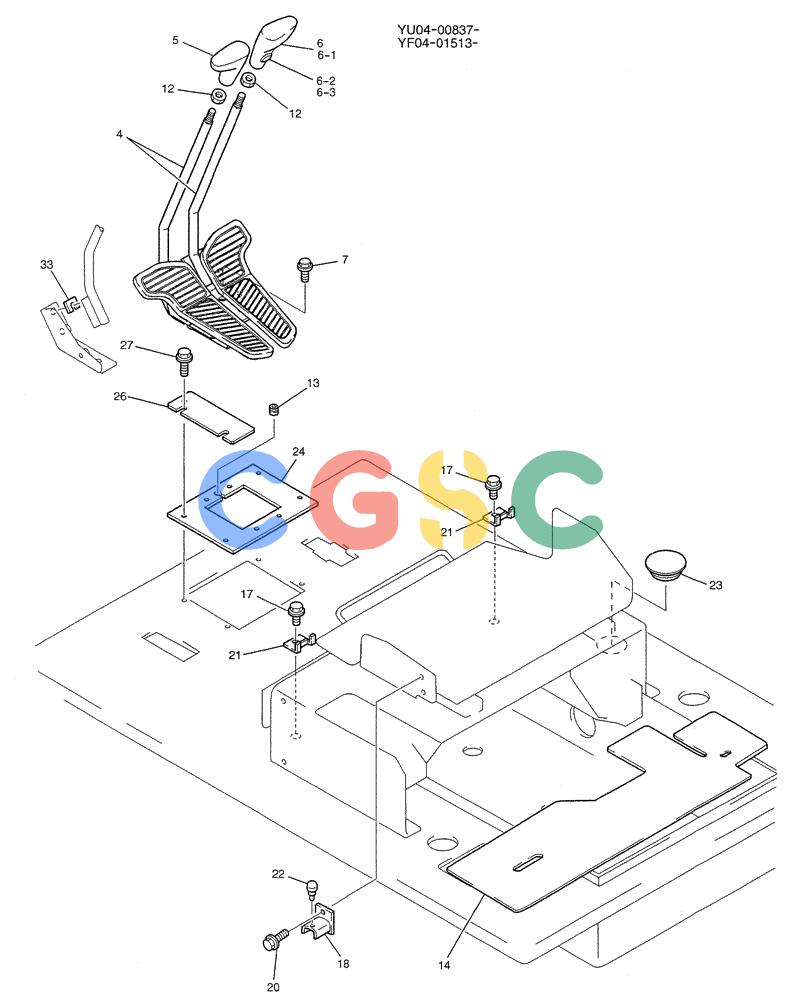

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV03M00009F3 | [1] | CONTROLS, OPERATORS (STD) | |
| . . | YV03M00009F4 | [1] | CONTROLS,OPERATORS (DOZER) | |
| 4. | YV50M00003F1 | [1] | LEVER ASSY. | KOBPROPEL, SEE FIG 01-028 |
| 5. | YN03M01040P1 | [1] | GRIP | KOBASSY |
| 6. | YN03M01286F1 | [1] | GRIP | KOBASSY (TRAVEL SPEED SELECT SWITCH) |
| 6-1. | YN03M01286S001 | [1] | GRIP | KOB |
| 6-2. | YN03M01286S002 | [1] | SWITCH | KOB(Used for 2-speed Select) Superseded by part number: 2479Z1811 |
| 6-3. | YN03M01286S003 | [1] | CAP | KOB |
| 7. | ZM22C10020 | [4] | BOLT | KOBSEMS |
| 12. | 2420Z1232 | [2] | NUT | KOB |
| 13. | YN03M01159P1 | [1] | GROMMET | KOB |
| 14. | YT03M01165P1 | [1] | RUBBER | KOB |
| 17. | ZM22C08020 | [2] | BOLT | KOBSEMS |
| 18. | YT03M01174P1 | [1] | BRACKET | KOB |
| 19. | YT03M01074P2 | [1] | SUPPORT | KOB |
| 20. | ZM61C06016 | [4] | BOLT | KOBSEMS, (M6X16) |
| 21. | YT03M01146P1 | [2] | SUPPORT | KOB |
| 22. | PA03M01013P1 | [1] | RUBBER | KOB |
| 23. | YT03M01115P1 | [1] | PLUG | KOB(FOR F3 ONLY) |
| 24. | YV03M01005P1 | [1] | PLATE | KOB |
| 27. | ZM22C10030 | [4] | BOLT | KOBM10x1.50x30mm (Incls. Washer & Lockwasher) |
| 33. | YT03M01144P1 | [2] | SHIM | KOB |
