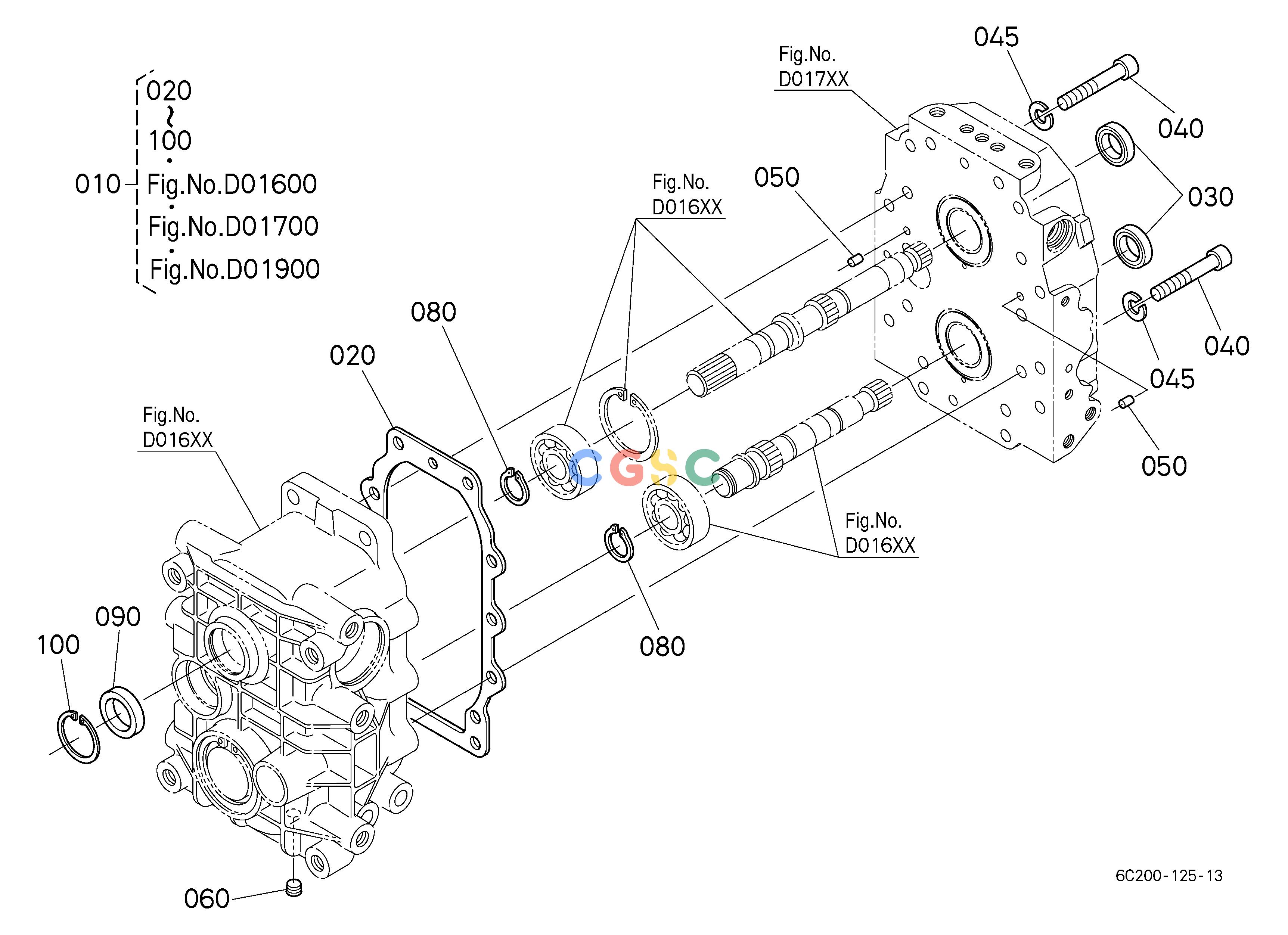

久保田零件查询D01800 HST (GASKET) [COMPONENT PARTS] 3 TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20011604
|
[1] |
ASSY,HST
|
46.7720(lbs); 21.260
|
| 020. |
6A71011622
|
[1] |
GASKET
|
0.0330(lbs); 0.015
|
| 030. |
3272135380
|
[2] |
SEAL,OIL
|
0.0044(lbs); 0.002
|
| 040. |
0131111060
|
[9] |
BOLT,SOCKET HEAD
|
0.0990(lbs); 0.045
|
| 045. |
6641539560
|
[9] |
WASHER,SPRING
|
0.0066(lbs); 0.003
|
| 050. |
K756111180
|
[2] |
PIN,STRAIGHT 8X14
|
0.0044(lbs); 0.002
|
| 060. |
3272135450
|
[1] |
PLUG,R1/8
|
0.0044(lbs); 0.002
|
| 080. |
0461200200
|
[2] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
6636339560
|
[1] |
SEAL,OIL
|
0.0220(lbs); 0.010
|
| 100. |
0461100350
|
[1] |
CIR-CLIP,INTERNAL
|
0.0066(lbs); 0.003
|
