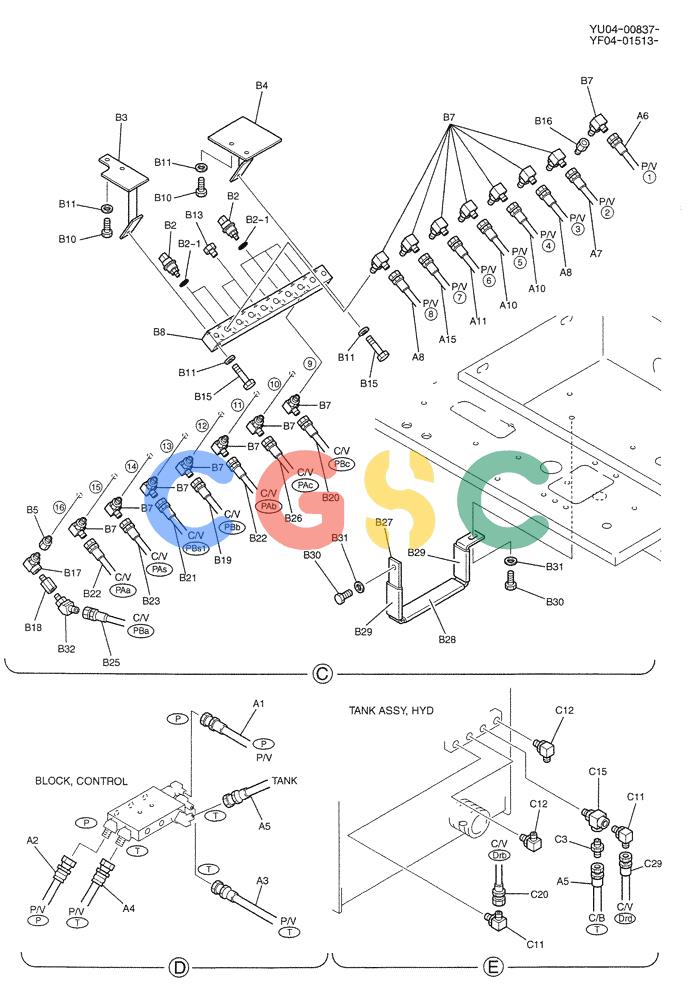

| . . | YF68H00004F1 | [1] | CONTROL LINES, REMOTE | |
| A1. | 2420R349D145 | [1] | HOSE | KOB Superseded by part number: HX21E04145DX |
| A2. | 2420R349D175 | [1] | HOSE,6.35mm ID x 1750mm L | KOB |
| A3. | 2444R1119D140 | [1] | HOSE | KOB |
| A4. | 2444R1119D175 | [1] | FLEXIBLE HOSE | KOB |
| A5. | 2444R1119D300 | [1] | FLEXIBLE HOSE | KOB |
| A11. | YN68H01054D1 | [1] | FLEXIBLE HOSE | KOB |
| A12. | YF68H01005P1 | [2] | INSULATING PANEL | KOBRUBBER |
| A14. | YR68H01016D1 | [2] | HOSE | KOB |
| A16. | PY01P01043D6 | [4] | CABLE TIE,4.80mm W x 383mm L | KOB |
| A17. | ZH22X06000 | [10] | HYD CONNECTOR | KOB |
| A18. | HH25X04004G2 | [2] | HYD CONNECTOR | KOB |
| A19. | PH03M01250P1 | [2] | BOOT | KOB |
| A20. | YN30V00095F1 | [2] | PILOT VALVE | KOBASSY |
| A21. | ZS28C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBCAP |
| A22. | ZW16X06000 | [8] | WASHER | KOB Superseded by part number: 86588450 |
| . . | YF64H00009F1 | [1] | CONTROL LINES,BLOCK | |
| B1. | 2420Z2185 | [3] | GROMMET | KOB |
| B2. | LC52S00011P1 | [6] | SENSOR | KOBPRESS (LP.) Superseded by part number: LC52S00019P1 |
| B2-1. | ZD12P01100 | [1] | O-RING | KOB |
| B5. | 2444T2505 | [1] | HYD CONNECTOR | KOB |
| B7. | ZH32X06000 | [15] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| B8. | YN64H01075P1 | [1] | BLOCK | KOB |
| B9. | YN64H01068D1 | [1] | RUBBER | KOB |
| B10. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOB |
| B11. | ZW16H08000 | [6] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B12. | YN64H01079P1 | [1] | GROMMET | KOB |
| B13. | ZE72X04000 | [2] | PLUG | KOB |
| B15. | ZS18C08055 | [2] | CAPSCREW,Hex, M8 x 55mm | KOBSCREW CAP |
| B16. | 2444Z2891 | [1] | HYD CONNECTOR | KOB |
| B17. | 2444Z2894 | [1] | 90 ELBOW | KOBELBOW |
| B19. | 2420R537D260 | [1] | HOSE,9.60mm ID x 2600mm L | KOB |
| B20. | 2420R537D280 | [1] | HOSE,9.60mm ID x 2800mm L | KOB Superseded by part number: HX21E06280DX |
| B21. | 2420R537D300 | [1] | HOSE,9.60mm ID x 3000mm L | KOB Superseded by part number: HX21E06300DX |
| B22. | 2420R537D410 | [2] | FLEXIBLE HOSE,9.60mm ID x 4100mm L | KOB |
| B23. | 2420R537D370 | [1] | FLEXIBLE HOSE,9.60mm ID x 3700mm L | KOB |
| B24. | PU13E01010DP | [1] | TUBE | KOB |
| B25. | 2420R537D270 | [1] | FLEXIBLE HOSE,9.60mm ID x 2700mm L | KOB |
| B28. | YX32H01012D1 | [1] | RUBBER | KOB |
| B30. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOB |
| B31. | ZW16H10000 | [2] | WASHER | KOB |
| B32. | 2444T3288 | [1] | ELBOW | KOB |
| . . | YF06H00004F4 | [1] | CONTROL LINES, MAIN | |
| C2. | ZH22X04006 | [6] | HYD CONNECTOR | KOB |
| C5. | 2444T2524 | [1] | HYD CONNECTOR | KOB |
| C6. | YN21V00005F2 | [2] | CHECK VALVE | KOBASSY, CHECK |
| C7. | 2444Z3711 | [2] | HYD CONNECTOR | KOB |
| C8. | YN06H01006P1 | [1] | CONNECTION | KOB |
| C9. | YN06H01017P1 | [2] | HYD CONNECTOR | KOB |
| C10. | ZH32X04000 | [8] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBELBOW |
| C11. | ZH32X04006 | [8] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| C13. | 2444Z3155 | [2] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB Superseded by part number: YT42H01128P1 |
| C14. | HH55Q04004G1 | [2] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB |
| C15. | HH55Q06006G1 | [6] | TEE | KOB |
| C18. | PU13E01010D8 | [1] | RIGID TUBE | KOB |
| C19. | 2444R1120D100 | [1] | HOSE | KOB |
| C20. | 2444R1120D040 | [1] | HOSE | KOB |
| C22. | 2420R349D046 | [1] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2420R349D050 |
| C23. | 2420R349D050 | [1] | HOSE,500.00 mm | KOB |
| C24. | 2420R349D064 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: HX21E04065DX |
| C25. | 2420R349D070 | [1] | HOSE,700.00 mm | KOB |
| C26. | 2420R349D090 | [1] | HOSE,6.35mm ID x 900mm L | KOB |
| C27. | 2420R349D100 | [1] | HOSE | KOB Superseded by part number: HX21E04100DX |
| C28. | YN21V00005F4 | [1] | CHECK VALVE | KOBASSY |
| C30. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| C31. | ZH42X04006 | [1] | 45 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| C32. | ZH42X06000 | [2] | 45 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOB |
| C35. | PU13E01002D9 | [1] | TUBE | KOB |
| C37. | 2444Z2336 | [1] | HYD CONNECTOR | KOBTEE |
| C38. | 2444R596D1 | [1] | ELBOW | KOB |
| C39. | ZE72X06000 | [4] | PLUG | KOB |
