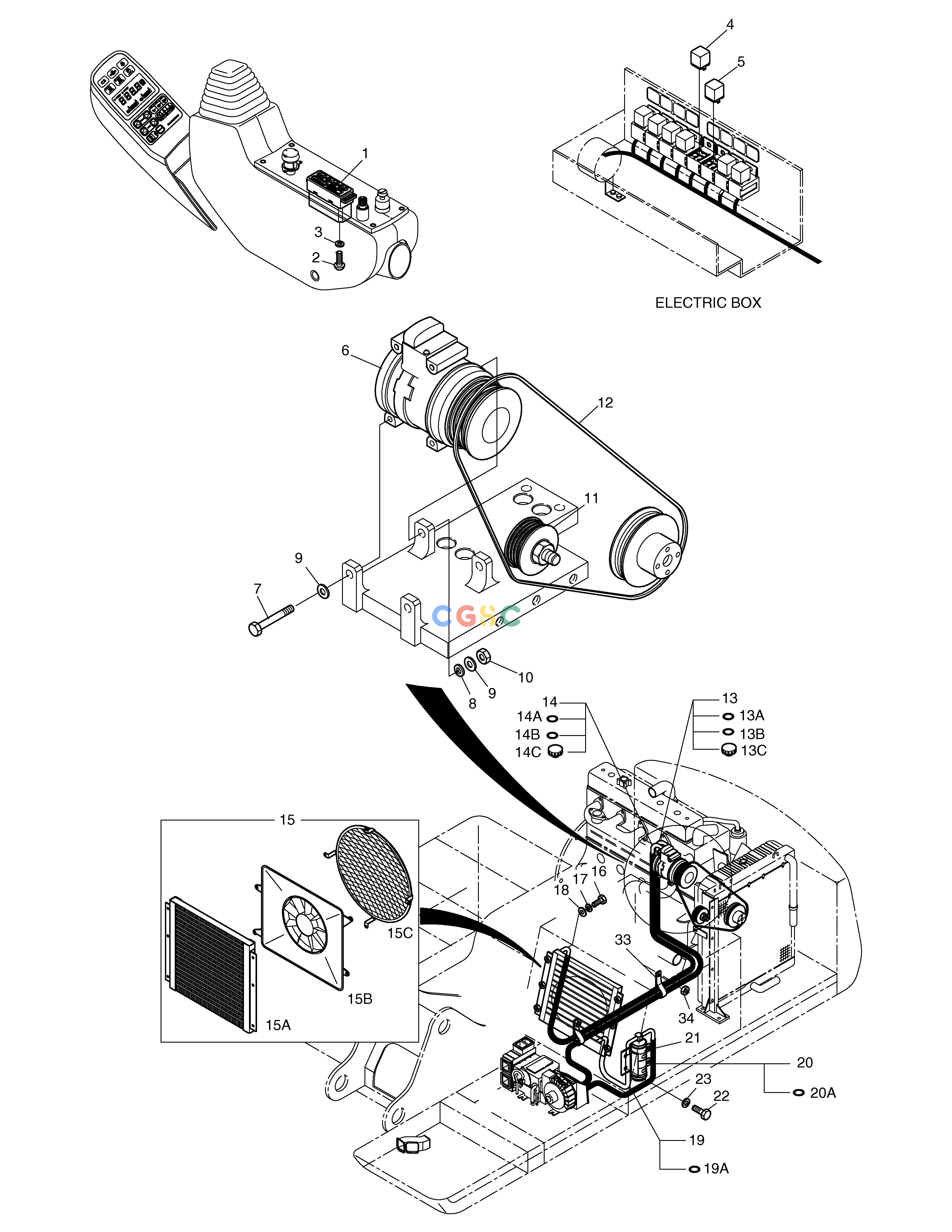

斗山零件查询AIRCONDITIONER(1) SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
212 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2920-1077
|
[-] |
COOLER & HEATER ASS'Y
|
|
| 1. |
2543-9031
|
[1] |
PANEL;AIRCON CONTROL
|
2543-9031A
|
| 1. |
2543-9031A
|
[1] |
PANEL;AIRCON CONTROL
|
|
| 10. |
S4012533
|
[2] |
NUT
|
|
| 11. |
2107-6004A
|
[1] |
IDLE PULLEY ASS'Y 4PK
|
|
| 11. |
2107-6004B
|
[1] |
PULLEY ASS'Y;IDLE 4PK
|
|
| 12. |
2106-1019D2
|
[1] |
V-BELT
|
|
| 13. |
2185-1700
|
[1] |
HOSE;DISCHARGE
|
|
| 13A. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 13B. |
2180-6089
|
[1] |
O-RING(COND)
|
|
| 13C. |
1.161-00018
|
[1] |
CAP;CHECK PORT(H)
|
|
| 14. |
2185-1699
|
[1] |
HOSE;SUCTION
|
|
| 14A. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 14B. |
2180-6087
|
[1] |
O-RING(EVA)
|
|
| 14C. |
1.161-00019
|
[1] |
CAP;CHECK PORT(L)
|
|
| 15. |
2520-6004
|
[1] |
CONDENSER ASS'Y
|
|
| 15A. |
2520-6005
|
[1] |
CONDENSER CORE ASS'Y
|
|
| 15B. |
2538-6018
|
[1] |
FAN MOTOR ASS'Y
|
|
| 15C. |
2520-6006
|
[1] |
NET;CONDENSER
|
|
| 16. |
S0512053
|
[6] |
BOLT
|
|
| 17. |
S5102603
|
[6] |
. WASHER
|
|
| 18. |
S5010613
|
[6] |
WASHER
|
|
| 19. |
2185-1697D1
|
[1] |
HOSE;LIQUID(1) 610L
|
|
| 19A. |
2180-6090
|
[2] |
O-RING
|
|
| 2. |
S3450583
|
[4] |
SCREW
|
|
| 20. |
2185-1698D1
|
[1] |
HOSE;LIQUID(2)
|
|
| 20A. |
2180-6090
|
[2] |
O-RING
|
|
| 21. |
2204-6039
|
[1] |
RECEIVER DRIER
|
2204-6039A
|
| 21. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
|
| 22. |
S0508653
|
[2] |
BOLT
|
|
| 23. |
S5102503
|
[2] |
. WASHER
|
|
| 3. |
S5000113
|
[4] |
WASHER
|
|
| 33. |
2124-1509D6
|
[2] |
CLIP D42/M8
|
|
| 34. |
2121-1305
|
[2] |
NUT
|
|
| 4. |
2544-9029
|
[1] |
RELAY;ENGINE STOP
|
2544-9033
|
| 4. |
2544-9033
|
[1] |
RELAY
|
|
| 5. |
2544-9029
|
[1] |
RELAY;ENGINE STOP
|
2544-9033
|
| 5. |
2544-9033
|
[1] |
RELAY
|
|
| 6. |
2208-6013
|
[1] |
COMPRESSOR 10PA-15C
|
|
| 6. |
2208-6013A
|
[1] |
COMPRESSOR
|
2208-6013B
|
| 6. |
2208-6013B
|
[1] |
COMPRESSOR
|
|
| 7. |
S0557353
|
[2] |
BOLT M8X1.25X100
|
|
| 7. |
S0557763
|
[2] |
BOLT M8X1.25X120
|
|
| 8. |
S5102503
|
[2] |
. WASHER
|
|
| 9. |
S5010513
|
[2] |
WASHER
|
|
| 9. |
S5010513
|
[4] |
WASHER
|
|
