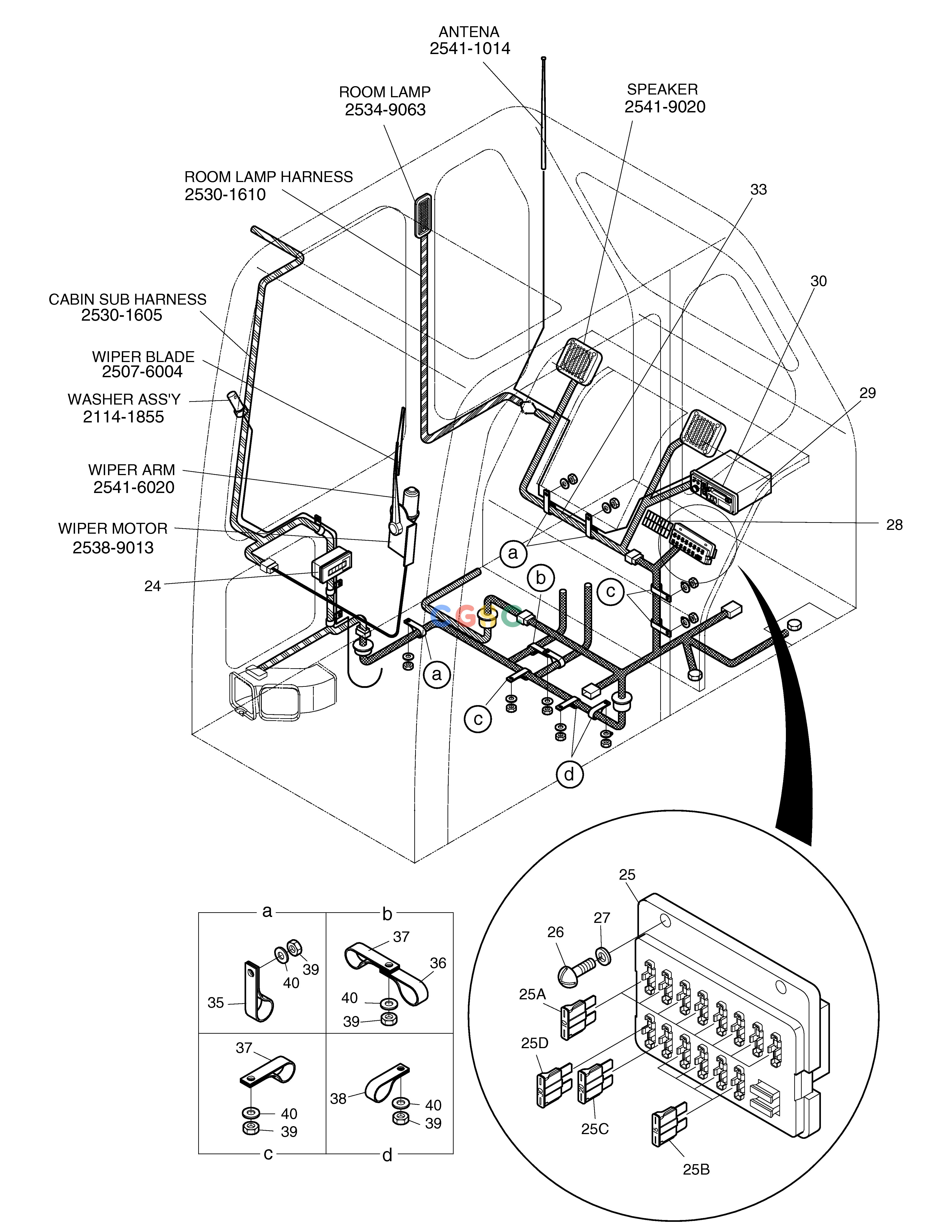

斗山零件查询ELECTRIC PARTS(3)-CABIN SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
890 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1166A
|
[-] |
ELECTRIC PARTS
|
|
| -. |
2500-1166B
|
[-] |
ELECTRIC PARTS
|
|
| -. |
2500-1166E
|
[-] |
ELECTRIC PARTS
|
|
| -. |
2500-1166G
|
[-] |
ELECTRIC PARTS
|
|
| 24. |
2528-9040
|
[1] |
METER;HOUR
|
|
| 25. |
2510-1010
|
[1] |
BOX ASS'Y;FUSE (1)
|
|
| 25A. |
2527-1016
|
[8] |
FUSE,BLADE 10A
|
|
| 25B. |
2527-1017
|
[4] |
FUSE,BLADE 15A
|
|
| 25C. |
2527-1018
|
[1] |
FUSE,BLADE 20A
|
|
| 25D. |
2527-1025
|
[1] |
FUSE,BLADE 30A
|
|
| 26. |
S3450983
|
[2] |
SCREW
|
|
| 27. |
S5102303
|
[2] |
. WASHER
|
|
| 28. |
2190-3244D1
|
[1] |
PLATE;NAME(FUSE BOX)
|
|
| 29. |
2541-9019
|
[1] |
CAR STEREO
|
2541-9019A
|
| 29. |
2541-9019A
|
[1] |
CAR STEREO
|
|
| 30. |
2541-6009
|
[1] |
FRAME;CAR STEREO
|
|
| 33. |
2530-1606
|
[1] |
HARNESS;STEREO
|
|
| 35. |
2124-1509D2
|
[3] |
CLIP
|
|
| 36. |
2124-1509D3
|
[1] |
CLIP D24/M8
|
|
| 37. |
2124-1509D4
|
[4] |
CLIP D30/M8
|
|
| 38. |
2124-1509D5
|
[2] |
CLIP D36/M8
|
|
| 39. |
S4012533
|
[9] |
NUT
|
|
| 40. |
S5102503
|
[9] |
. WASHER
|
|
