神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (05-001) - EXTINGUISHER INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
564 次

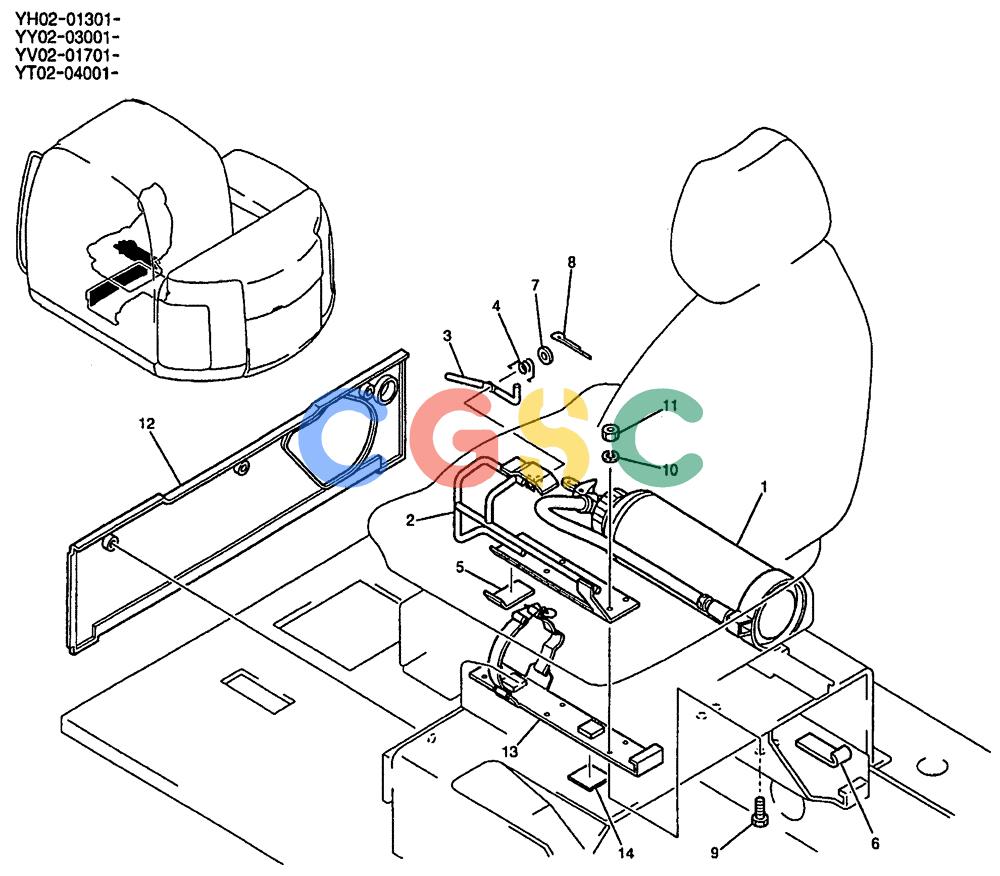

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT71M00001F1 | [1] | FIRE EXTINGUISHER | KOB |
| 1. | YT71M00002P1 | [1] | FIRE EXTINGUISHER | KOB |
| 2. | YT71M01001P2 | [1] | BRACKET | KOB |
| 3. | YT25M01025P2 | [1] | ROD | KOB |
| 4. | YT25M01032P1 | [1] | SPRING | KOB |
| 5. | YT25M01033P1 | [1] | RUBBER | KOB |
| 6. | YT25M01034P1 | [1] | RUBBER | KOB |
| 7. | ZW16X08000 | [1] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 8. | 2419R9D2 | [1] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| 9. | ZS68C06014 | [4] | CAPSCREW | KOBSCREW |
| 10. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 11. | ZN18C06005 | [4] | NUT | KOBM06x1.0mm |
| 12. | YT03M01129P1 | [1] | COVER | KOB |
| 13. | YT71M01003P1 | [1] | BRACKET | KOB |
| 14. | YT71M01004P1 | [1] | RUBBER | KOB |
