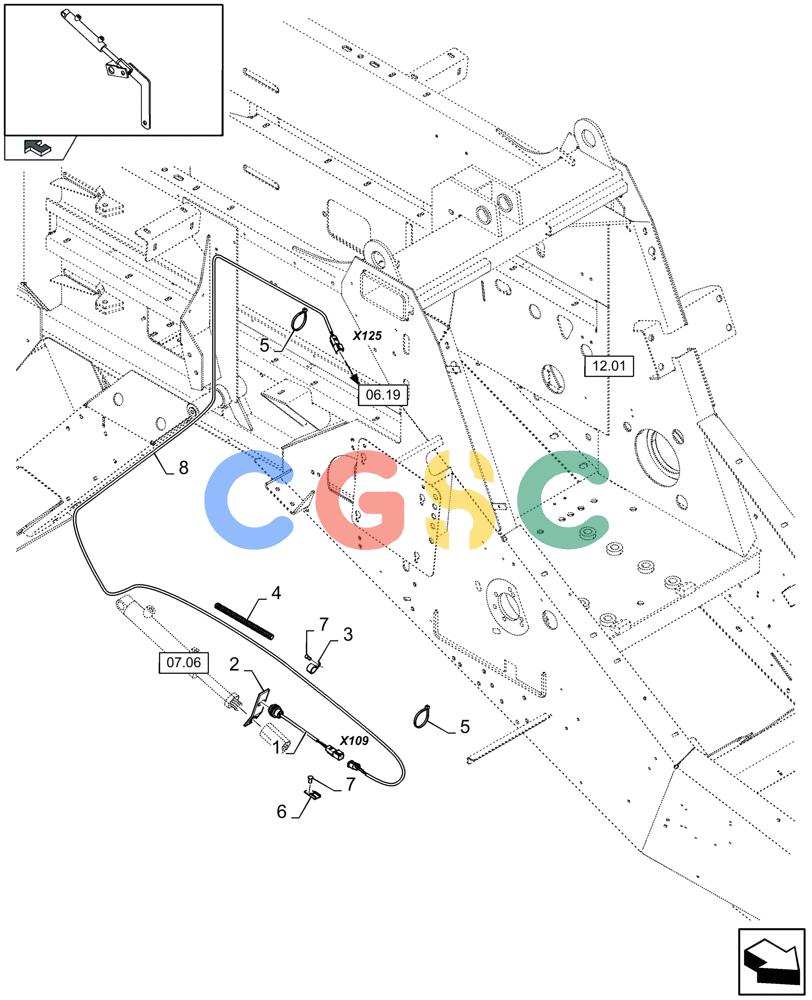

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (06.10[01]) - HYDRAULICS KNIVES CROPCUTTER, ELECTRICITY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
234 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84058863
|
[1] |
SENSOR
|
ZED
B10 - STATUS CUTTER, Serial Range: -C867
|
| 1. |
87680717
|
[1] |
SENSOR
|
ZED
B10 - STATUS CUTTER, Serial Range: -F868915 Superseded by part number: 84391774
|
| 1. |
87342073
|
[1] |
SENSOR
|
GI
B10 - STATUS CUTTER, Start Serial: D916
|
| 2. |
84078953
|
[1] |
COVER PLATE
|
ZED
|
| 3. |
84818441
|
[4] |
CLAMP,12.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 4. |
NS
|
[1] |
NOT SERVICED
|
BAS
M= 500 MM
|
| 5. |
323597
|
[9] |
CABLE TIE,165mm OAL x 9mm Thk
|
NH
CABLE STRAP Superseded by part number: 14560287
|
| 6. |
84058832
|
[1] |
CLIP
|
ZED
|
| 7. |
445395
|
[2] |
RIVET,Pop, 4.8mm OD x 18.1mm L
|
IH
|
| 8. |
84073235
|
[1] |
WIRE HARNESS
|
ZED
|
