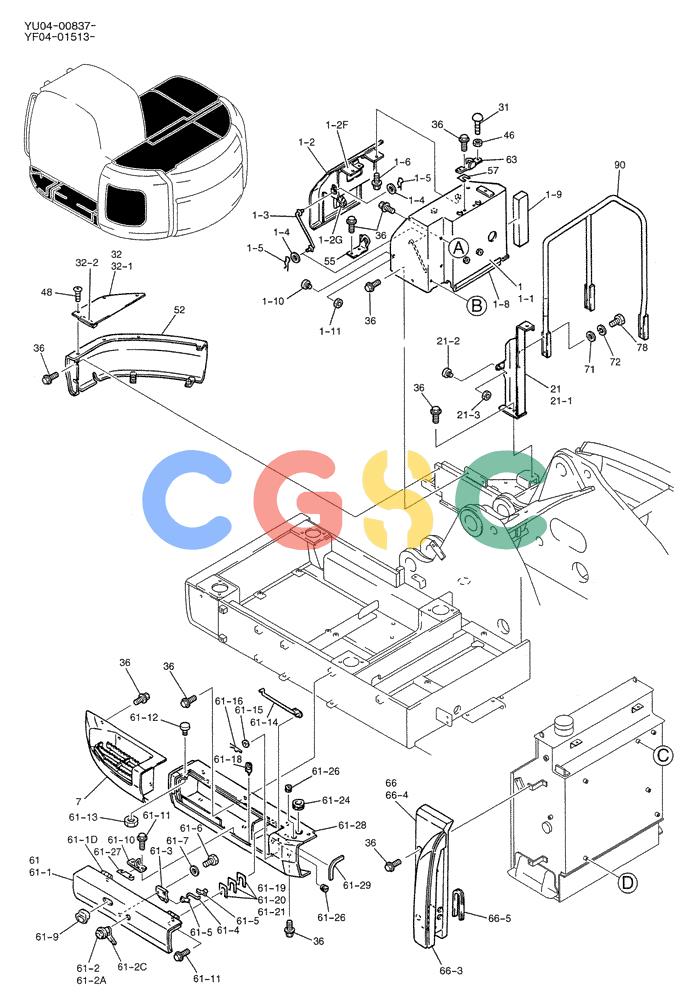

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-043[01]) - GUARD INSTAL, P/N YF21C00003F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
864 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF21C00003F1 | [1] | GUARD INSTAL (REQUIRED) | |
| 1-2F. | YX21C01056P1 | [2] | HINGE | KOB |
| 1-3. | YN21C01552P1 | [1] | STAY | KOBSTAY |
| 1-4. | HY25X10027G1 | [2] | WASHER,10mm ID x 27mm OD x 3.2mm Thk | KOB |
| 1-5. | 2419R9D2 | [2] | COTTER PIN | KOBSNAP |
| 1-6. | ZM32C12025 | [2] | BOLT | KOBSEMS |
| 1-9. | YN21C01704P1 | [1] | INSULATING PANEL | KOB |
| 1-10. | PY06C01040P1 | [1] | STOP | KOB |
| 1-11. | ZN18F10008 | [1] | NUT | KOB |
| 2-1. | YN21C01616P2 | [1] | PANEL | KOB |
| 2-2. | YN21C01705P1 | [1] | FOAM INSULATION | KOB |
| 2-3. | YF21C01011P1 | [1] | FOAM INSULATION | HIT |
| 3. | YN21C01691F1 | [1] | PANEL | KOBASSY |
| 3-1. | YN21C01613P4 | [1] | COWLING | KOBPANEL |
| 3-1H. | YN21C01707P1 | [2] | HINGE | KOB |
| 3-2. | PH21C01021D8 | [1] | RUBBER WEATHERSTRIP | KOB |
| 3-3. | YX21C01204P1 | [1] | STAY | KOBSTAY |
| 3-4. | YR21C01123P1 | [1] | COLLAR | KOBCLIP |
| 11-2. | YT21C01034P2 | [1] | CATCH | KOB |
| 11-3. | ZM61C06016 | [2] | BOLT | KOBSEMS |
| 11-4. | YN21C01438F2 | [1] | LOCK | KOBASSY |
| 11-4A. | YR22C01025P2 | [1] | LOCK | KOB |
| 11-4C. | YN21C01702P1 | [1] | PLATE | KOB |
| 11-5. | YT21C01143P1 | [2] | RUBBER SLEEVE | KOB |
| 11-6. | YN21C01572P1 | [1] | ROD | KOB |
| 11-7. | YT21C01053P1 | [2] | CLIP | KOB |
| 11-8. | YW21C01057D4 | [1] | WEATHERSEAL STRIP | KOBSTRIP,WEATHER |
| 11-9. | YN21C01181P1 | [1] | HANDLE | KOB |
| 11-10. | ZM12C08020 | [2] | BOLT | KOBSEMS |
| 11-11. | ZW16X08000 | [2] | WASHER | KOB |
| 11-12. | PY01P01019D9 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 13-2. | YJ21C01146D7 | [1] | STRIP | KOBTRIM |
| 13-4. | YA21C01019D2 | [1] | CAP | KOBTRIM |
| 14-3. | LE21C01070DG | [2] | RUBBER WEATHERSTRIP | KOB |
| 14-4. | YN21C01687P1 | [1] | GRIP | KOB |
| 15-2. | YT21C01159D2 | [1] | INSULATING PANEL | KOBSTRIP, WEATHER |
| 15-4. | PY21C01007DN | [1] | INSULATING PANEL | KOBSTRIP, WEATHER |
| 20-3. | YA21C01036D4 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 20-4. | LE21C01070DK | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 20-5. | PM22C01020DE | [1] | INSULATING PANEL | KOBSTRIP, WEATHER |
| 21. | YN21C01751F1 | [1] | BRACKET | KOBASSY |
| 21-1. | YN21C01743P1 | [1] | BRACKET | KOB |
| 22. | YN21C01440P1 | [2] | HINGE | KOB |
| 23. | YN21C01434P2 | [1] | STAY | KOBSTAY |
| 25-2. | YN21C01688D1 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 25-3. | PH03M01281P1 | [1] | GROMMET | KOB |
| 26. | YW21C01302P1 | [1] | GAS STRUT | KOBSPRING, GAS |
| 30-2. | YN21C01528D8 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 30-4. | YJ21C01079D1 | [2] | INSULATING PANEL | KOBSTRIP, WEATHER |
| 30-5. | YJ21C01079D6 | [2] | INSULATING PANEL | KOBSTRIP, WEATHER |
| 31. | YN21C01321P1 | [4] | STOP | KOB Superseded by part number: YN21C03212P1 |
| 33. | YN21C01748P1 | [1] | STRIKER PLATE | KOBSTRIKER |
| 36. | ZM32C12030 | [34] | BOLT | KOBSEMS |
| 37. | HS18C10025G1 | [2] | SCREW | KOBCAP Superseded by part number: ZS18C10025 |
| 38. | HY25X11024G1 | [2] | WASHER | KOB |
| 39. | YT21C01172P1 | [2] | LOCK WASHER | KOB |
| 41. | YW21C01180P1 | [2] | GAS STRUT | KOBGAS |
| 42. | YN21C01467P2 | [1] | STRIKER PLATE | KOB |
| 43. | YN21C01174D1 | [1] | SPACER | KOB |
| 44. | YN21C01174D2 | [1] | SPACER | KOB |
| 47-3. | YT21C01163DG | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 47-5. | YN21C01528D1 | [1] | INSULATING PANEL | KOBSTRIP, WEATHER |
| 47-7. | LE21C01070DL | [1] | WEATHERSTRIP | KOBSTRIP, WEATHER |
| 47-8. | YT21C01163D5 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 56. | YN21C01752P1 | [2] | BOLT | KOB |
| 57. | YT21C01179D1 | [1] | SHIM | KOB(1.2) |
| 63. | YN21C01694P1 | [1] | STRIKER PLATE | KOB |
| 64. | ZS18C12025 | [9] | SCREW,Hex, M12 x 25mm | KOBCAP |
| 65. | YN21C01685P1 | [1] | STAY | KOBSTAY |
| 67. | YT21C01187P2 | [2] | WASHER | KOB |
| 70. | ZN18C12010 | [2] | NUT | KOB |
| 71. | 2418T10357 | [11] | WASHER | KOB Superseded by part number: 2418T12345 |
| 72. | ZW26X12000 | [12] | WASHER | KOB |
| 73. | YN21C01175D1 | [1] | SHIM | KOB(1.6) |
| 74. | YN21C01175D2 | [2] | SHIM | KOB(2.3) |
| 76. | YR21C01159P1 | [7] | BOLT | KOBSEMS |
| 77. | YN21C01713P1 | [1] | U-BRACKET | KOB |
| 79. | 2418T17912D1 | [1] | WASHER | KOB |
| 80. | ZS18C12030 | [1] | SCREW,Hex, M12 x 30mm | KOBCAP |
| 81-3. | PM21C01136DG | [1] | WEATHERSTRIP | KOB |
| 81-5. | YX21C01217D1 | [1] | INSULATING PANEL | KOBSTRIP, WEATHER |
| 81-6. | 2427P1836D3 | [1] | INSULATING PANEL | KOBSTRIP, WEATHER |
| . . | YF21C00003F2 | [1] | GUARD INSTAL | |
| 58. | YN21C02138P1 | [1] | WASHER | KOB |
| 83. | YN21C02147P1 | [1] | WASHER | KOB |
| . . | YF21C00003F4 | [1] | GUARD INSTAL | |
| 75-3. | YT21C01163D3 | [1] | WEATHERSTRIP | KOB |
| 75-5. | YT21C01037D8 | [1] | TRIM PANEL | KOB |
| . . | YF21C00003F5 | [1] | GUARD INSTAL | |
| . . | YF21C00003F6 | [1] | GUARD INSTAL | |
| 17-4. | YN21C01530P1 | [1] | INSULATING PANEL | KOB |
| 17-5. | YN21C01136D1 | [1] | WEATHERSTRIP | KOB |
| 17-13. | 2418T8864 | [13] | WASHER | KOB |
| . . | YF21C00003F7 | [1] | GUARD INSTAL | |
| 18-2. | YT21C01163DE | [1] | INSULATING PANEL | KOBSTRIP, WEATHER |
| 18-3. | YN21C01460D1 | [1] | INSULATING PANEL | KOBRUBBER |
| 18-4. | YF21C00041P1 | [1] | COVER | |
| . . | YF21C00003F9 | [1] | GUARD INSTAL | |
| 7. | YN21C01749P2 | [1] | COVER | KOB |
| . . | YF21C00003FC | [1] | GUARD INSTAL | |
| 61. | YN21C01535F4 | [1] | GUARD | KOBCOVER ASSY |
| 61-1. | YN21C01754P2 | [1] | COVER | KOBCOVER |
| 61—1D. | YN21C01725P2 | [2] | HINGE | KOB |
| 61-4. | YN21C01756P1 | [1] | ROD | KOB |
| 61-6. | ZM11C06014 | [2] | SCREW | KOBSEMS-BOLT |
| 61-7. | ZW16X06000 | [2] | WASHER | KOB Superseded by part number: 86588450 |
| 61-10. | YN21C01567P1 | [1] | STRIKER PLATE | KOB |
| 61-14. | YN21C01734P2 | [1] | STAY | KOBSTAY |
| 61-15. | HY25X1002761 | [1] | WASHER | |
| 61-19. | YN21C01757D1 | [1] | SHIM | KOB(1.2) |
| 61-20. | YN21C01757D2 | [1] | SHIM | KOB(2.0) |
| 61-21. | YN21C01757D3 | [1] | SHIM | KOB(3.2) |
| 61-24. | 2420Z1341 | [1] | GROMMET | KOB |
| 61-26. | YX14E01004P1 | [2] | GROMMET | KOB |
| 61-28. | YF21C01001P1 | [1] | GUARD | KOBCOVER |
| 61-29. | PM22C01020DH | [1] | INSULATING PANEL | KOBTRIM |
| . . | YF21C00003FF | [1] | GUARD INSTAL | |
| 66-3. | YF21C01051P1 | [1] | FOAM INSULATION | KOB |
| 66-4. | YN21C01815P1 | [1] | COVER | KOB |
| 66-5. | YN21C01692D4 | [1] | SOFT TRIM | KOB Superseded by part number: YN21C01692D8 |
| . . | YF21C00003FH | [1] | GUARD INSTAL | |
| 78. | ZS18C12055 | [6] | SCREW,Hex, M12 x 55mm | KOBCAP |
