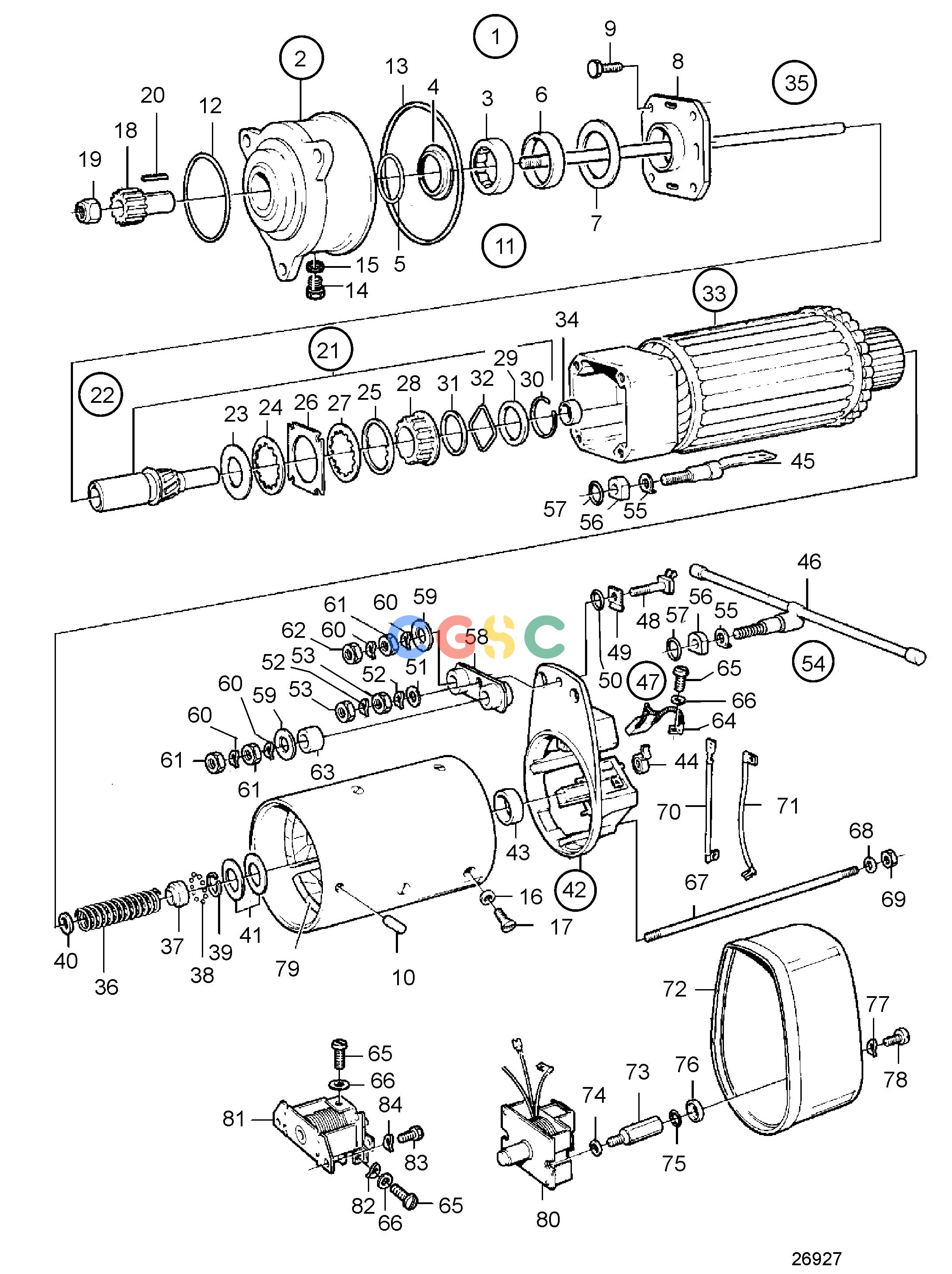

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AElectrical SystemStarter Motor, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
395 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
847307
|
[1] |
Starter motor
|
24V, E.U=3803079
|
| 2. |
240449
|
[1] |
Bearing shield
|
|
| 3. |
240453
|
[1] |
Needle bearing
|
|
| 4. |
240450
|
[1] |
Sealing ring
|
|
| 5. |
240451
|
[1] |
Spring
|
|
| 6. |
240455
|
[1] |
Bearing bushing
|
|
| 7. |
240457
|
[1] |
Spacer washer
|
|
| 8. |
240456
|
[1] |
Bearing shield
|
|
| 9. |
848095
|
[4] |
Screw
|
|
| 10. |
|
|
|
|
| 11. |
273517
|
[1] |
Small parts kit
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
| 17. |
847984
|
[8] |
Hex. socket sunk scr
|
|
| 18. |
11994396
|
[1] |
Starter pinion
|
(6643675)
|
| 19. |
1696396
|
[1] |
Nut
|
|
| 20. |
240473
|
[1] |
Key
|
|
| 21. |
244539
|
[1] |
Disc clutch
|
|
| 22. |
6644414
|
[1] |
Small parts kit
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
|
|
|
|
| 26. |
|
|
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
|
|
|
|
| 30. |
|
|
|
|
| 31. |
|
|
|
|
| 32. |
|
|
|
|
| 33. |
6212614
|
[1] |
Anchor
|
|
| 34. |
243091
|
[1] |
Needle bearing
|
|
| 35. |
6643680
|
[1] |
Rotor shaft
|
|
| 36. |
6212617
|
[1] |
Compression spring
|
|
| 37. |
6212622
|
[1] |
Stop ring
|
|
| 38. |
184453
|
[11] |
Ball
|
(844412)
|
| 39. |
240471
|
[1] |
Lock ring
|
|
| 40. |
844410
|
[1] |
Washer
|
|
| 41. |
241904
|
[1] |
Shim
|
TH=0,20mm
|
| 41. |
240486
|
[1] |
Shim
|
TH=0,30mm
|
| 41. |
240487
|
[1] |
Shim
|
TH=0,50mm
|
| 42. |
844408
|
[1] |
Bearing shield
|
|
| 43. |
240481
|
[1] |
Bearing bushing
|
|
| 44. |
240478
|
[4] |
Brush spring
|
|
| 45. |
240479
|
[1] |
Terminal screw
|
|
| 46. |
240480
|
[1] |
Electric cable
|
|
| 47. |
6643672
|
[1] |
Small parts kit
|
|
| 48. |
|
|
|
|
| 49. |
|
|
|
|
| 50. |
|
|
|
|
| 51. |
|
|
|
|
| 52. |
|
|
|
|
| 53. |
|
|
|
|
| 54. |
3094494
|
[2] |
Small parts kit
|
(6212792)
|
| 55. |
|
|
|
|
| 56. |
|
|
|
|
| 57. |
|
|
|
|
| 58. |
|
|
|
|
| 59. |
|
|
|
|
| 60. |
|
|
|
|
| 61. |
|
|
|
|
| 62. |
|
|
|
|
| 63. |
|
|
|
|
| 64. |
3094854
|
[1] |
Brush set
|
(6212621)
|
| 65. |
6643679
|
[4] |
Screw
|
|
| 65. |
244218
|
[4] |
Screw
|
|
| 66. |
941905
|
[8] |
Spring washer
|
|
| 67. |
6643677
|
[1] |
Bolt
|
|
| 67. |
6643678
|
[3] |
Bolt
|
|
| 68. |
955892
|
[4] |
Washer
|
|
| 69. |
955781
|
[4] |
Hexagon nut
|
|
| 70. |
847987
|
[1] |
Cable
|
|
| 71. |
847988
|
[1] |
Cable
|
|
| 72. |
240496
|
[1] |
Protecting casing
|
|
| 73. |
243713
|
[2] |
Bolt
|
|
| 74. |
6212619
|
[2] |
Washer
|
(240498)
|
| 75. |
72202
|
[2] |
Gasket
|
|
| 76. |
72201
|
[2] |
Washer
|
|
| 77. |
941906
|
[2] |
Spring washer
|
|
| 78. |
956094
|
[2] |
Cross recessed screw
|
|
| 79. |
6212612
|
[1] |
Field winding
|
|
| 80. |
241898
|
[1] |
Starter solenoid
|
|
| 81. |
241897
|
[1] |
Actuator solenoid
|
|
| 82. |
940090
|
[3] |
Washer
|
|
| 83. |
955294
|
[2] |
Hexagon screw
|
|
| 84. |
941907
|
[2] |
Spring washer
|
|
