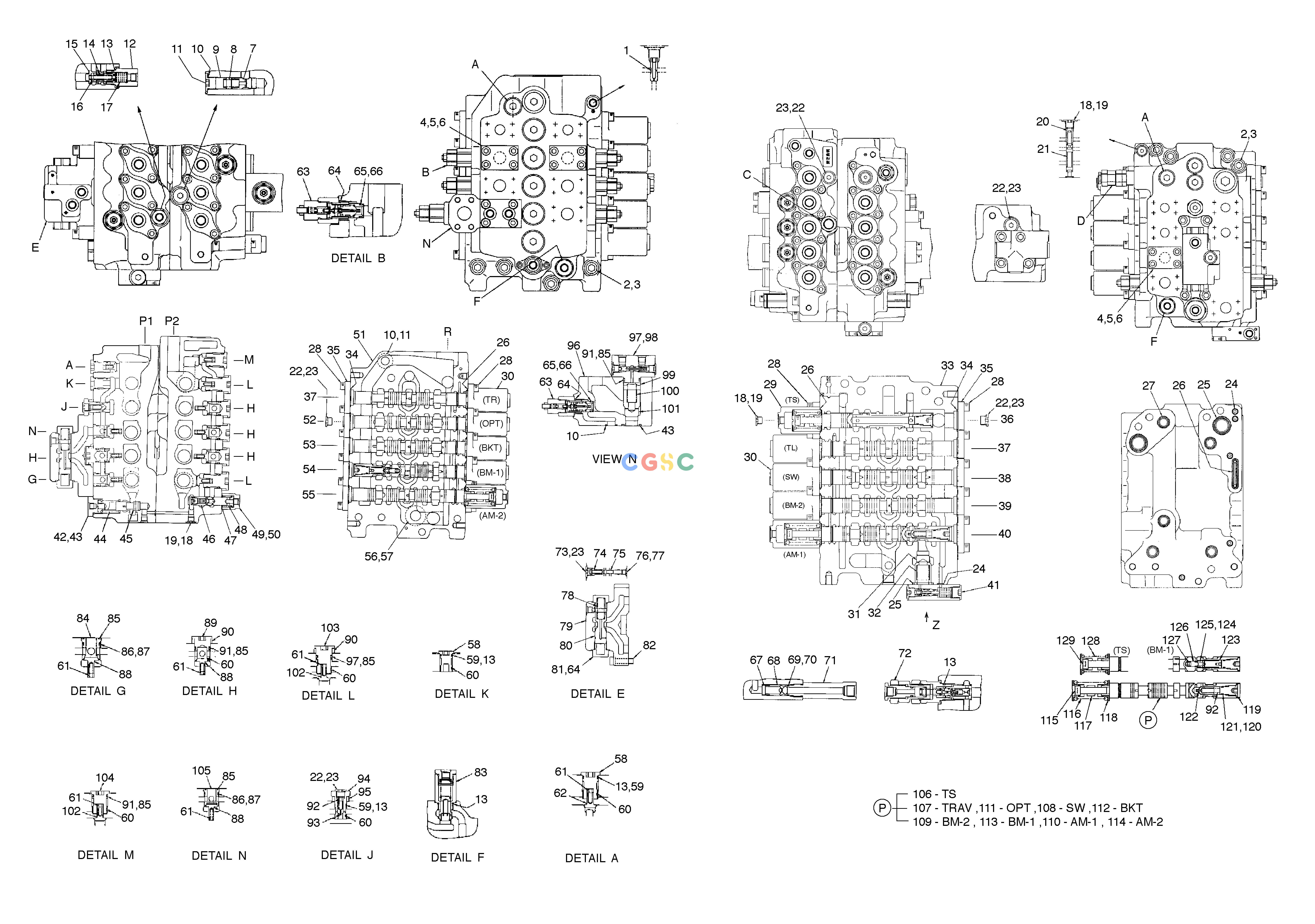

斗山零件查询CONTROL VALVE(A) SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
772 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2420-9503
|
[1] |
CONTROL VALVE
|
|
| 1. |
3518-029
|
[1] |
ORIFICE
|
2415-1012
|
| 10. |
8202-014
|
[3] |
O-RING
|
S8000181
|
| 100. |
3590-471
|
[1] |
SPRING
|
|
| 101. |
3513-277
|
[1] |
POPPET
|
|
| 102. |
3513-207
|
[3] |
CHECK
|
2420-1139
|
| 103. |
3526-514
|
[2] |
CAP
|
2430-1045
|
| 104. |
3526-435
|
[1] |
CAP
|
2430-1049
|
| 105. |
3516-231
|
[1] |
SLEEVE
|
2425-1031
|
| 106. |
3510-672
|
[1] |
PLUNGER;G2(TRAVEL S)
|
|
| 107. |
3610-001
|
[2] |
PLUNGER;M2(TRAVEL L.R)
|
2424-1253
|
| 108. |
3610-002
|
[1] |
PLUNGER;T7 SWING
|
2424-1252
|
| 109. |
3610-003
|
[1] |
PLUNGER;D10(BOOM-2)
|
|
| 11. |
0824-053
|
[2] |
CAP
|
2430-1050
|
| 110. |
3610-004
|
[1] |
PLUNGER A16 ARM-1
|
|
| 111. |
3510-677
|
[1] |
PLUNGER;D10(OPTION)
|
|
| 112. |
3610-005
|
[1] |
PLUNGER;C7 BUCKET
|
2424-1251
|
| 113. |
3610-006
|
[1] |
PLUNGER B11 BOOM-1
|
|
| 114. |
3610-007
|
[1] |
PLUNGER;D11 ARM-2
|
2424-1250
|
| 115. |
3526-592
|
[9] |
CAP
|
2430-1104
|
| 116. |
3590-508
|
[9] |
SPRING
|
2129-1468
|
| 117. |
3597-237
|
[9] |
SPACER
|
2114-1913
|
| 118. |
3531-118
|
[20] |
GUIDE
|
2429-1043A
|
| 119. |
3526-432
|
[3] |
CAP
|
2430-1059
|
| 12. |
3526-609
|
[1] |
CAP
|
2430-1103
|
| 120. |
0859-194
|
[3] |
RING;BACK-UP
|
S8060121
|
| 121. |
8202-010
|
[3] |
O-RING
|
S8000121
|
| 122. |
3513-209
|
[1] |
CHECK
|
|
| 123. |
3516-200
|
[1] |
SLEEVE
|
|
| 124. |
0859-243
|
[1] |
RING;BACK UP P10A
|
|
| 125. |
8202-008
|
[1] |
O-RING P10A
|
|
| 126. |
3513-275
|
[1] |
CHECK
|
|
| 127. |
3590-284
|
[1] |
SPRING
|
|
| 128. |
3590-426
|
[1] |
SPRING
|
2129-1385
|
| 129. |
3526-512
|
[1] |
CAP;PLUNGER
|
2430-1060
|
| 13. |
8202-016
|
[9] |
O-RING P21 HS90
|
S8000211
|
| 14. |
3510-986
|
[1] |
SPOOL
|
2424-1265
|
| 15. |
3516-230
|
[1] |
SLEEVE
|
2425-1032
|
| 16. |
3590-529
|
[1] |
SPRING
|
2129-1467
|
| 17. |
3512-114
|
[1] |
PISTON
|
2409-1059
|
| 18. |
0824-051
|
[3] |
CAP
|
2430-1051
|
| 19. |
8202-009
|
[3] |
O-RING
|
S8000111
|
| 2. |
0576-085
|
[8] |
BOLT;SOCKET M14X100
|
|
| 20. |
3590-436
|
[1] |
SPRING
|
2129-1389
|
| 21. |
3510-685
|
[1] |
SPOOL;TS
|
2424-1100
|
| 22. |
0824-052
|
[5] |
CAP
|
2430-1058
|
| 23. |
8202-011
|
[6] |
O-RING
|
S8000141
|
| 24. |
8202-007
|
[7] |
O-RING
|
S8000101
|
| 25. |
8202-026
|
[3] |
O-RING P34,HS90
|
S8000341
|
| 26. |
0201-067
|
[11] |
O-RING
|
2180-1217D67
|
| 27. |
8202-017
|
[5] |
O-RING
|
S8000221
|
| 28. |
8072-102
|
[40] |
BOLT M10X25
|
|
| 29. |
3503-182
|
[1] |
COVER
|
2430-1068A
|
| 3. |
8131-011
|
[8] |
WASHER;SPRING
|
|
| 30. |
3503-241
|
[9] |
COVER
|
2430-1105
|
| 31. |
3513-269
|
[1] |
POPPET
|
2426-1165
|
| 32. |
3590-457
|
[1] |
SPRING
|
2129-1412
|
| 33. |
3501-783
|
[1] |
HOUSING(L)
|
2423-1491
|
| 34. |
0201-063
|
[10] |
O-RING
|
2180-1217D63
|
| 35. |
3505-061
|
[10] |
RETAINER
|
|
| 36. |
3511-595
|
[1] |
PLUNGER;G1
|
2424-1274
|
| 37. |
3511-852
|
[2] |
PLUNGER;M2(TRAVEL L.R)
|
2424-1273
|
| 38. |
3511-853
|
[1] |
PLUNGER;T7 SWING
|
2424-1272
|
| 39. |
3511-854
|
[1] |
PLUNGER;D10(BOOM-2)
|
2424-1268
|
| 4. |
0879-019
|
[3] |
FLANGE
|
2181-2434
|
| 40. |
3511-855
|
[1] |
PLUNGER;A16 ARM-1
|
2424-1269
|
| 41. |
3535-060
|
[1] |
COVER ASS'Y
|
2430-1064
|
| 42. |
3526-372
|
[1] |
CAP
|
2430-1038
|
| 43. |
8202-023
|
[2] |
O-RING
|
S8000291
|
| 44. |
3590-435
|
[1] |
SPRING
|
2129-1388
|
| 45. |
3510-760
|
[1] |
SPOOL;CB
|
2424-1156A
|
| 46. |
3537-422
|
[1] |
SPOOL;BP
|
2420-1224
|
| 47. |
0201-024
|
[1] |
O-RING
|
2180-1217D24
|
| 48. |
3590-520
|
[1] |
SPRING
|
2129-1465
|
| 49. |
3503-247
|
[1] |
COVER
|
2430-1102
|
| 5. |
0201-109
|
[3] |
O-RING MS9021-219,HS90
|
2180-1217D109
|
| 50. |
8072-065
|
[2] |
BOLT;SOCKET
|
|
| 51. |
3501-784
|
[1] |
HOUSING(R)
|
2423-1483A
|
| 52. |
3511-856
|
[1] |
PLUNGER;D(OPTION)
|
2424-1275
|
| 53. |
3511-857
|
[1] |
PLUNGER;C7 BUCKET
|
2424-1271
|
| 54. |
3511-858
|
[1] |
PLUNGER;B11 BOOM-1
|
2424-1267
|
| 55. |
3511-859
|
[1] |
PLUNGER;D11 ARM-2
|
2424-1270
|
| 56. |
0824-054
|
[1] |
CAP
|
2430-1067
|
| 57. |
0207-001
|
[1] |
O-RING
|
S8000231
|
| 58. |
3526-337
|
[4] |
CAP
|
2430-1040
|
| 59. |
0859-181
|
[5] |
RING;BACK UP P21 B1AS
|
S8060211
|
| 6. |
8070-104
|
[12] |
BOLT;SOCKET M10X35
|
|
| 60. |
1099-000
|
[12] |
CHIP;NYLON
|
2420-1138
|
| 61. |
3390-101
|
[12] |
SPRING
|
2129-1374
|
| 62. |
3513-108
|
[3] |
CHECK
|
2420-1136
|
| 63. |
3537-357-360-20
|
[8] |
OVER LOAD RELIEF V/V
|
|
| 64. |
0202-008
|
[10] |
O-RING
|
|
| 65. |
0859-172
|
[8] |
RING;BACK UP
|
|
| 66. |
8202-013
|
[8] |
O-RING
|
|
| 67. |
3590-358
|
[1] |
SPRING
|
2129-1383
|
| 68. |
3513-211
|
[1] |
CHECK
|
2420-1133
|
| 69. |
0201-050
|
[1] |
O-RING MS9021-114
|
2180-1217D50
|
| 7. |
3513-212
|
[1] |
CHECK
|
2420-1156
|
| 70. |
0859-251
|
[1] |
RING;BACK UP
|
2180-1208
|
| 71. |
3526-517
|
[1] |
CAP
|
2430-1052
|
| 72. |
3537-358
|
[1] |
MAIN RELIEF ASS'Y
|
2420-1225
|
| 73. |
3526-604
|
[1] |
CAP
|
|
| 74. |
3590-521
|
[1] |
SPRING
|
|
| 75. |
3510-960
|
[1] |
SPOOL
|
|
| 76. |
0824-050
|
[1] |
CAP
|
|
| 77. |
8202-005
|
[1] |
O-RING
|
|
| 78. |
3590-054
|
[1] |
SPRING
|
|
| 79. |
3508-094
|
[1] |
MANIFOLD ASS'Y
|
|
| 8. |
3590-208
|
[1] |
SPRING
|
2129-1377
|
| 80. |
3610-008
|
[1] |
SPOOL;SP
|
|
| 81. |
3526-603
|
[2] |
CAP
|
|
| 82. |
8072-123
|
[4] |
BOLT M12X1.75X40
|
|
| 83. |
3537-332
|
[2] |
FOOT RELIEF VALVE
|
|
| 84. |
3516-210
|
[1] |
SLEEVE
|
2425-1015B
|
| 85. |
8202-021
|
[10] |
O-RING
|
S8000261
|
| 86. |
0859-171
|
[2] |
RING;BACK UP MS28774-119
|
2180-1209
|
| 87. |
0201-055
|
[2] |
O-RING
|
2180-1217D55
|
| 88. |
3513-157
|
[6] |
CHECK
|
2420-1142
|
| 89. |
3526-513
|
[4] |
CAP
|
2430-1046A
|
| 9. |
3599-111
|
[1] |
STOPPER
|
2416-1020
|
| 90. |
3597-220
|
[6] |
SPACER
|
2114-1691
|
| 91. |
0859-229
|
[8] |
RING;BACK UP
|
S8060261
|
| 92. |
3590-061
|
[2] |
SPRING
|
2129-1373
|
| 93. |
3513-245
|
[1] |
CHECK ASS'Y
|
2420-1147
|
| 94. |
3526-516
|
[1] |
CAP
|
2430-1048
|
| 95. |
3597-219
|
[1] |
SPACER
|
2114-1693
|
| 96. |
3508-070
|
[1] |
MANIFOLD ASS'Y
|
|
| 97. |
3504-056
|
[1] |
COVER ASS'Y
|
|
| 98. |
0576-078
|
[4] |
BOLT;SOCKET M10X120
|
|
| 99. |
3593-023
|
[1] |
SEAT;SPRING
|
|
