斗山零件查询OPTION VALVE SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
718 次

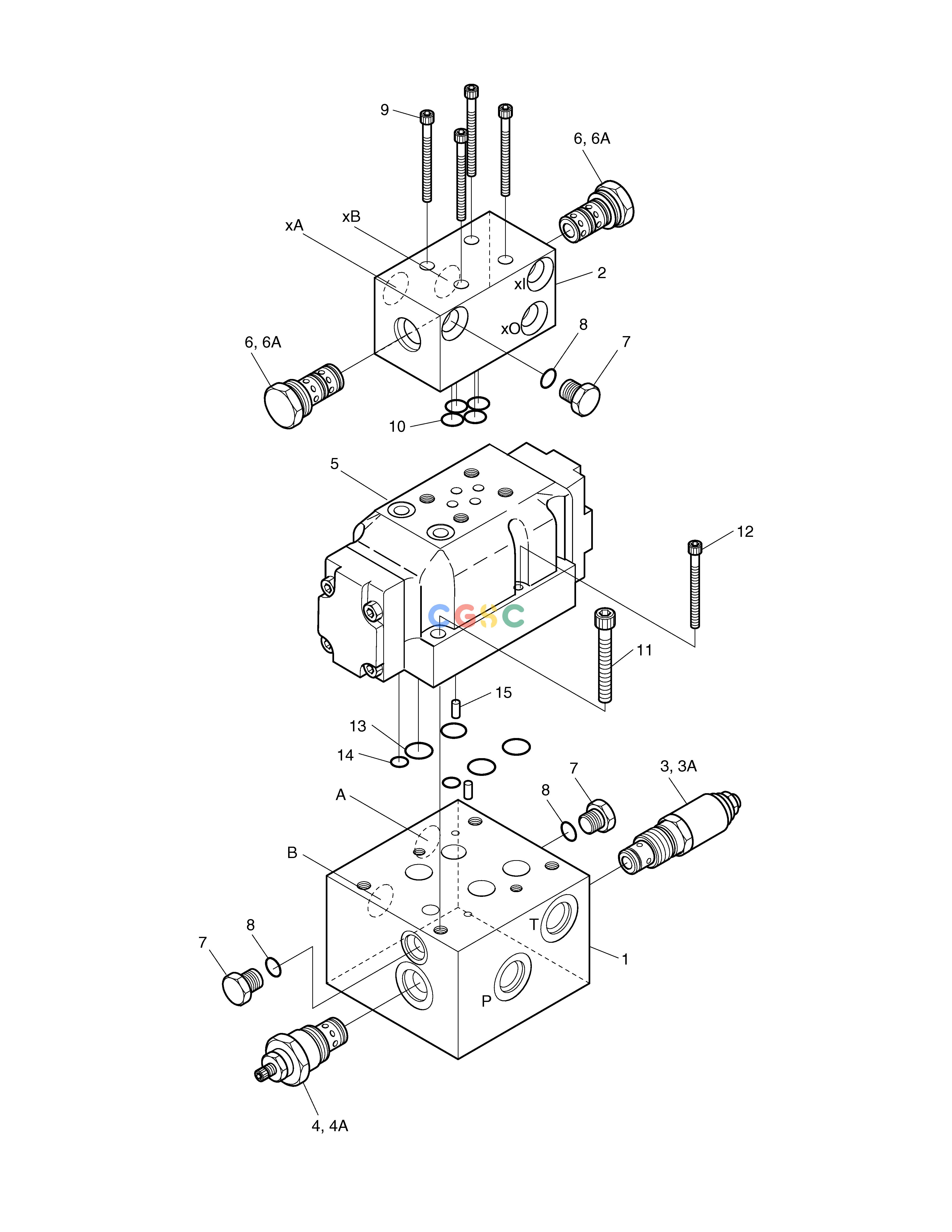

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00322
|
[1] |
OPTION VALVE
|
420-00322B
|
| -. |
420-00322B
|
[1] |
OPTION VALVE
|
420-00322C
|
| -. |
420-00322C
|
[1] |
OPTION VALVE
|
|
| 1. |
K9000439
|
[1] |
BLOCK;MAIN
|
|
| 10. |
S8000091
|
[4] |
O-RING
|
|
| 11. |
S2212861
|
[4] |
BOLT;SOCKET
|
|
| 12. |
S2205761
|
[2] |
BOLT;SOCKET
|
|
| 13. |
2180-1217D54
|
[4] |
O-RING
|
|
| 14. |
2180-1217D13
|
[2] |
. O-RING
|
|
| 15. |
S5740470
|
[2] |
PIN;SPRING
|
|
| 2. |
K9000440
|
[1] |
BLOCK;PILOT
|
|
| 3. |
K9000441
|
[1] |
VALVE;RELIEF
|
|
| 3A. |
K9000442
|
[1] |
SEAL KIT
|
|
| 4. |
K9000443
|
[1] |
VALVE;FLOW CONTROL
|
|
| 4A. |
K9000444
|
[1] |
SEAL KIT
|
|
| 5. |
K9000445
|
[1] |
VALVE;DIRE. CONT.
|
|
| 6. |
K9000446
|
[2] |
VALVE;SHUTTLE
|
|
| 6A. |
K9000447
|
[1] |
SEAL KIT
|
|
| 7. |
2181-1950D1
|
[3] |
PLUG
|
|
| 8. |
S8000111
|
[3] |
O-RING
|
|
| 9. |
K9000448
|
[4] |
BOLT;SOCKET
|
|
