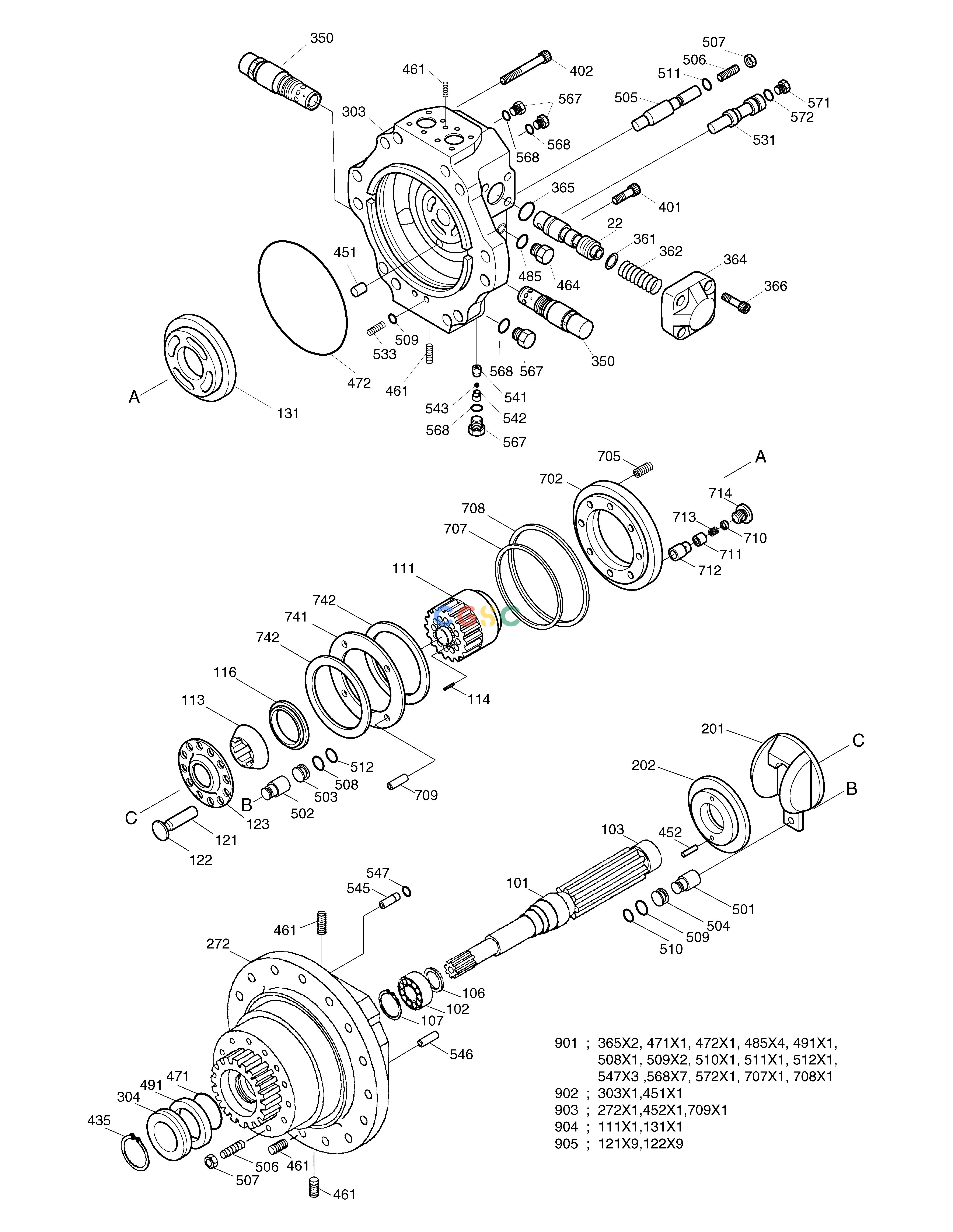

斗山零件查询TRAVEL MOTOR-DNB50B SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
422 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2401-9140K
|
[1] |
O-RING KIT
|
|
| -. |
2401-9140
|
[2] |
TRAVEL DEVICE
|
|
| 101. |
3330800106
|
[1] |
SHAFT;DRIVE
|
|
| 102. |
PNUP2210
|
[1] |
BEARING;ROLLER
|
|
| 103. |
PNK385227
|
[1] |
BEARING;NEEDLE
|
|
| 106. |
371A00AA-106
|
[1] |
SPACER;BEARING
|
|
| 107. |
OSR50
|
[1] |
RING;SNAP
|
|
| 111. |
3330800108
|
[1] |
BLOCK;CYLINDER
|
|
| 113. |
2953801840
|
[1] |
BUSH;SPHERICAL
|
113693
|
| 114. |
2953801842
|
[9] |
SPRING;CYLINDER
|
113695
|
| 116. |
2953801841
|
[1] |
SPACER
|
113694
|
| 121. |
371A00AA-121
|
[9] |
PISTON
|
|
| 122. |
371A00AA-122
|
[9] |
SHOE
|
|
| 123. |
2943800488
|
[1] |
PLATE;SET
|
113692
|
| 131. |
3330800114
|
[1] |
PLATE;VALVE
|
|
| 201. |
3330800109
|
[1] |
PLATE;SWASH
|
|
| 202. |
3330800110
|
[1] |
SUPPORT;SWASH PLATE
|
|
| 22. |
VZ40103067
|
[1] |
SUB ASS'Y;COUNTER BALANCE SPOOL
|
|
| 272. |
3320800234
|
[1] |
CASING A
|
|
| 303. |
3320800184
|
[1] |
CASING;VALVE
|
|
| 304. |
3340800109
|
[1] |
COVER;SEAL
|
|
| 350. |
V8807044983
|
[2] |
VALVE;RELIEF
|
|
| 361. |
5A250010-3310
|
[2] |
WASHER
|
|
| 362. |
3350800152
|
[2] |
SPRING;COUNTER BALANCE
|
|
| 364. |
3350800150
|
[2] |
COVER;COUNTER BALANCE
|
|
| 365. |
OORBG45
|
[2] |
O-RING G45
|
|
| 366. |
OSBM1245
|
[8] |
BOLT;SOCKET M12X1.75X45
|
|
| 401. |
OSBM1650
|
[8] |
BOLT;SOCKET M16X2.0X50
|
|
| 402. |
OSBM16120
|
[4] |
BOLT;SOCKET M16X2.0X120
|
|
| 435. |
ORR85
|
[1] |
RING;SNAP
|
|
| 451. |
PJR1014
|
[1] |
PIN;VALVE PLATE
|
113375
|
| 452. |
PJR1524
|
[2] |
PIN 1
|
|
| 461. |
PBP116-2403
|
[10] |
PLUG
|
|
| 464. |
OVP12
|
[4] |
PLUG
|
|
| 471. |
OORBG75
|
[1] |
O-RING G75
|
|
| 472. |
PCPP275
|
[1] |
O-RING
|
|
| 485. |
OORBP18
|
[4] |
O-RING
|
220015
|
| 491. |
PTCV48V
|
[1] |
SEAL;OIL
|
|
| 501. |
3340800118
|
[1] |
PISTON;TILTING
|
|
| 502. |
3350800266
|
[1] |
PISTON;TILTING
|
|
| 503. |
3350800311
|
[1] |
STOPPER
|
|
| 504. |
3350800160
|
[1] |
STOPPER;S
|
|
| 505. |
3350800148
|
[1] |
ROD;TILTING
|
|
| 506. |
PSSSM1640
|
[2] |
BOLT;SOCKET
|
|
| 507. |
ONM16C
|
[2] |
NUT M16X2.0
|
|
| 508. |
OORBP22A
|
[1] |
O-RING P22A
|
|
| 509. |
OORBP16
|
[2] |
O-RING P16
|
212029
|
| 510. |
OT2BP16
|
[1] |
RING;BACK-UP
|
208454
|
| 511. |
OORBP10A
|
[1] |
O-RING P10A
|
|
| 512. |
OT2BP22A
|
[1] |
RING;BACK-UP
|
|
| 531. |
3350800149
|
[1] |
SPOOL;TILTING
|
|
| 533. |
3350800154
|
[1] |
SPRING;TILTING
|
|
| 541. |
2953801680
|
[2] |
SEAT
|
|
| 542. |
3350800155
|
[2] |
STOPPER
|
|
| 543. |
ODW732
|
[2] |
BALL;STEEL
|
200166
|
| 545. |
OTRS116A15
|
[1] |
ORIFICE
|
|
| 546. |
OTRS116A10
|
[2] |
ORIFICE
|
|
| 547. |
OORBP10
|
[3] |
O-RING P10
|
|
| 567. |
OVP14
|
[7] |
PLUG
|
108844
|
| 568. |
OORBP11
|
[7] |
O-RING
|
201689
|
| 571. |
37DA00AA-668
|
[1] |
PLUG
|
|
| 572. |
OORBP14
|
[1] |
O-RING P14
|
201700
|
| 702. |
3330800107
|
[1] |
PISTON;BRAKE
|
|
| 705. |
3350800153
|
[10] |
SPRING;BRAKE
|
|
| 707. |
3350800174
|
[1] |
RING;PISTON 252
|
|
| 708. |
3350800151
|
[1] |
RING;PISTON 278
|
|
| 709. |
PJR1540
|
[4] |
PIN;CENTER
|
|
| 710. |
34750-00-367
|
[1] |
GUIDE;SPRING
|
|
| 711. |
37KB00AD-368
|
[1] |
SPOOL
|
|
| 712. |
34750-00-369
|
[1] |
BUSH
|
|
| 713. |
34750-00-370
|
[1] |
SPRING
|
|
| 714. |
OR038
|
[1] |
PLUG
|
|
| 741. |
3350800147
|
[1] |
PIN;SEPARATOR
|
|
| 742. |
3340800110
|
[2] |
PLATE;TRICTION
|
|
| 901. |
3350800317
|
[1] |
KIT;SEAL
|
|
| 902. |
33522-01-20
|
[1] |
VALVE CASING SUB ASS'Y
|
|
| 903. |
3350800316
|
[1] |
CASING SUB ASS'Y
|
|
| 904. |
33522-00-14
|
[1] |
CYLINDER SUB AS'Y
|
|
| 905. |
371A00A-12
|
[1] |
PISTON SUB ASS'Y
|
|
