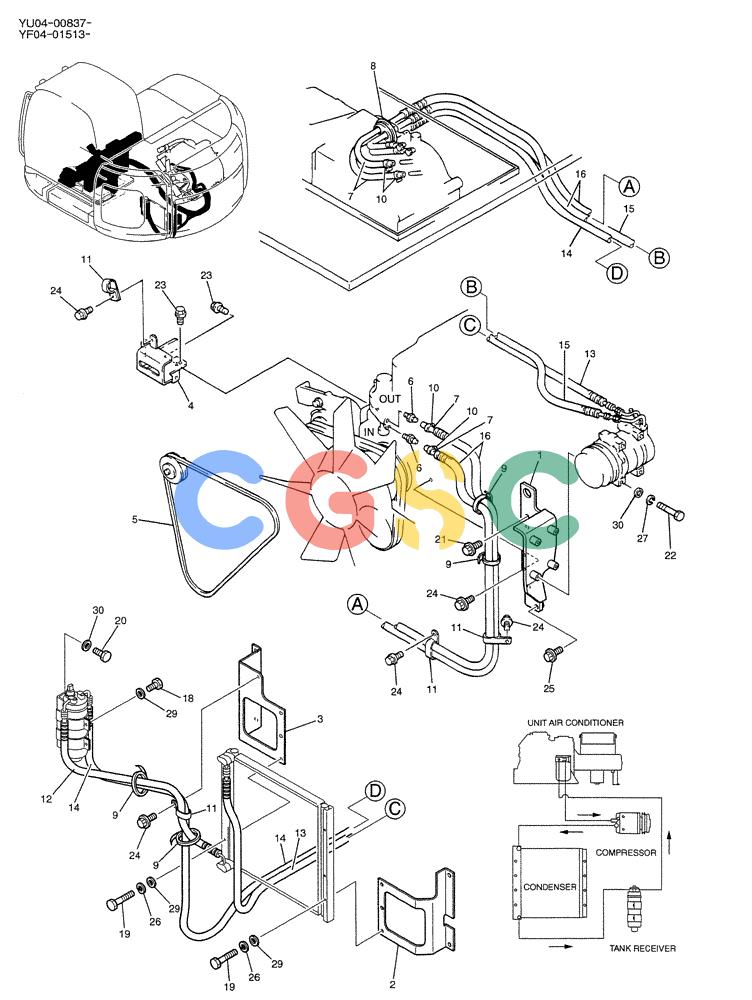

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-051) - CONDITIONER ASSY, AIR, P/N YF20M00004F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
554 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF20M00004F1 | [1] | CONDITIONER ASSY, AIR | |
| 5. | YF20M01007P1 | [1] | BELT | KOBV, (COG B63) |
| 6. | 2444T2577 | [2] | HYD CONNECTOR | KOB |
| 8. | YT20M01043P1 | [1] | GROMMET | KOB |
| 9. | PY01P01043D5 | [4] | CABLE TIE,301mm L | KOB |
| 10. | ZC16X02000 | [4] | CLIP | KOB |
| 11. | 2432R226D13 | [4] | CLIP | KOB |
| 14. | 2418Z1333D17 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 3300mm Length | KOB |
| 15. | YN20M01094DJ | [1] | RIGID TUBE,25mm ID x 30mm OD x 2450mm Length | KOB |
| 16. | YN20M01046DM | [2] | TUBE,25mm ID x 30mm OD x 4500mm Length | KOB |
| 18. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBCAP |
| 19. | ZS18C06050 | [6] | SCREW,Hex, M6 x 50mm | KOBCAP |
| 20. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBCAP |
| 21. | ZM22C08020 | [2] | BOLT | KOBSEMS |
| 23. | ZM22C10020 | [3] | BOLT | KOBSEMS |
| 24. | ZM22C10025 | [9] | BOLT | KOBSEMS |
| 25. | ZM22C10035 | [1] | BOLT | KOBSEMS |
| 26. | ZW26X06000 | [6] | LOCK WASHER | KOB |
| 27. | ZW26X08000 | [4] | LOCK WASHER | KOB Superseded by part number: 83990583 |
| 29. | ZW16X06000 | [8] | WASHER | KOB Superseded by part number: 86588450 |
| 30. | ZW16X08000 | [6] | WASHER | KOB |
