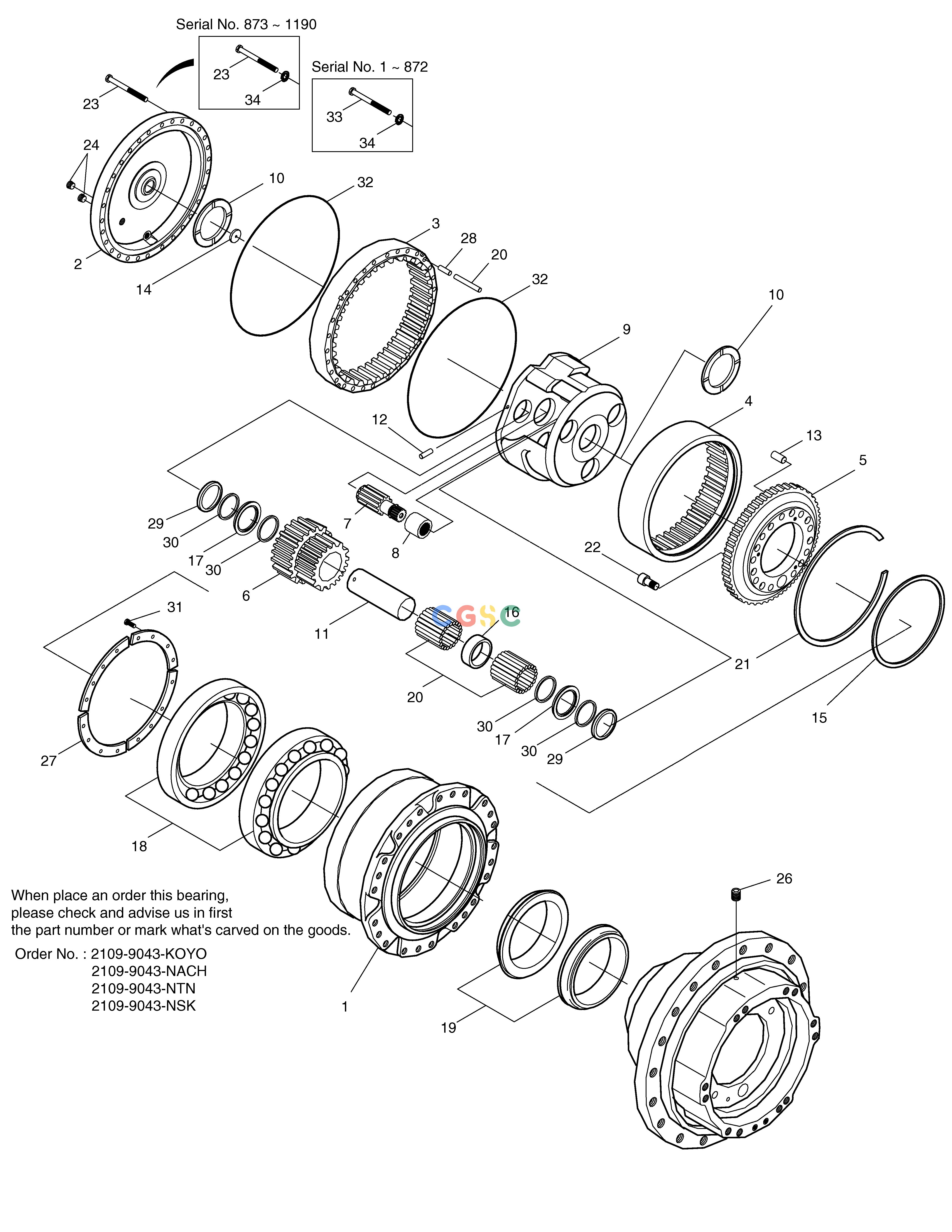

斗山零件查询TRAVEL REDUCTION GEAR-DTD283V SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
339 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-1206B
|
[2] |
TRAVEL DEVICE
|
2401-1206C
|
| -. |
2401-1206C
|
[2] |
TRAVEL DEVICE
|
2401-1206E
|
| -. |
2401-1206E
|
[2] |
TRAVEL DEVICE
|
2401-1206G
|
| -. |
2401-1206G
|
[2] |
TRAVEL DEVICE
|
2401-1206H
|
| -. |
2401-1206H
|
[2] |
TRAVEL DEVICE
|
|
| -. |
2404-1068A
|
[1] |
REDUCTION GEAR
|
|
| -. |
2404-1068B
|
[1] |
TRAVEL REDUCTION GEAR
|
|
| -. |
2404-1068C
|
[1] |
TRAVEL REDUCTION GEAR
|
|
| 1. |
2402-1036G
|
[1] |
HOUSING
|
|
| 1. |
2402-1036H
|
[1] |
HOUSING
|
|
| 1. |
2402-1036I
|
[1] |
HOUSING
|
|
| 10. |
2109-1043D1
|
[1] |
BEARING;THRUST(T=5.0)
|
|
| 10. |
2109-1043D2
|
[1] |
BEARING;THRUST(T=5.5)
|
|
| 11. |
2405-1010A
|
[3] |
SHAFT
|
|
| 12. |
2123-1801B
|
[3] |
PIN
|
|
| 13. |
2123-1802
|
[9] |
PIN
|
|
| 14. |
2144-1004C
|
[1] |
THRUST PLATE
|
|
| 15. |
2114-1647D1
|
[1] |
SHIM 1.2t
|
|
| 15. |
2114-1647D2
|
[1] |
SHIM 1.4t
|
|
| 15. |
2114-1647D3
|
[1] |
SHIM 1.6t
|
|
| 15. |
2114-1647D4
|
[1] |
SHIM 1.8t
|
|
| 15. |
2114-1647D5
|
[1] |
SHIM 2.0t
|
|
| 15. |
2114-1647D6
|
[1] |
SHIM 2.3t
|
|
| 15. |
2114-1647D7
|
[1] |
SHIM 2.5t
|
|
| 15. |
2114-1647D8
|
[1] |
SHIM 2.8t
|
|
| 16. |
2114-1648B
|
[3] |
SPACER
|
|
| 17. |
2109-1054
|
[6] |
THRUST NEEDLE BEARING
|
|
| 18. |
2109-9043
|
[2] |
ANGULAR BEARING
|
|
| 19. |
2180-9155
|
[1] |
FLOATING SEAL
|
|
| 2. |
2403-1054G
|
[1] |
COVER
|
|
| 20. |
2154-9005
|
[150] |
NEEDLE ROLLER
|
|
| 20. |
2154-9005
|
[166] |
NEEDLE ROLLER
|
|
| 21. |
2115-9009B
|
[1] |
SNAP RING
|
|
| 22. |
2120-2155
|
[8] |
BOLT;HEX.
|
|
| 23. |
S1161971
|
[30] |
BOLT
|
|
| 24. |
2181-1116D4
|
[3] |
PLUG
|
|
| 26. |
2181-1854
|
[5] |
PLUG
|
|
| 27. |
2161-2256A
|
[4] |
STOPPER
|
|
| 28. |
2114-1873
|
[16] |
SPACER
|
|
| 29. |
2114-1874
|
[6] |
COLLAR
|
|
| 3. |
2104-1008G
|
[1] |
RING GEAR No.1
|
2104-1008H
|
| 3. |
2104-1008H
|
[1] |
RING GEAR No.1
|
|
| 3. |
2104-1008I
|
[1] |
RING GEAR No.1
|
|
| 30. |
2114-1875
|
[12] |
THRUST WASHER
|
|
| 31. |
S0112061
|
[16] |
BOLT;HEX.
|
|
| 32. |
2180-1286
|
[2] |
O-RING
|
|
| 33. |
2120-2199
|
[30] |
BOLT;REAMER
|
|
| 34. |
2114-1942
|
[30] |
WASHER
|
|
| 4. |
2104-1009C
|
[1] |
RING GEAR No.2
|
2104-1009E
|
| 4. |
2104-1009E
|
[1] |
RING GEAR No.2
|
|
| 4. |
2104-1009G
|
[1] |
RING GEAR No.2
|
|
| 5. |
2101-1018A
|
[1] |
GEAR;COUPLING
|
|
| 6. |
2101-1019G
|
[3] |
GEAR;CLUSTER
|
|
| 7. |
2101-1020C
|
[1] |
SUN GEAR
|
|
| 8. |
2414-1007C
|
[1] |
COUPLING
|
|
| 9. |
2230-1022E
|
[1] |
CARRIER
|
|
