沃尔沃零件查询TAMD72P-A; TAMD72WJ-AEngineTiming Gear HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
375 次

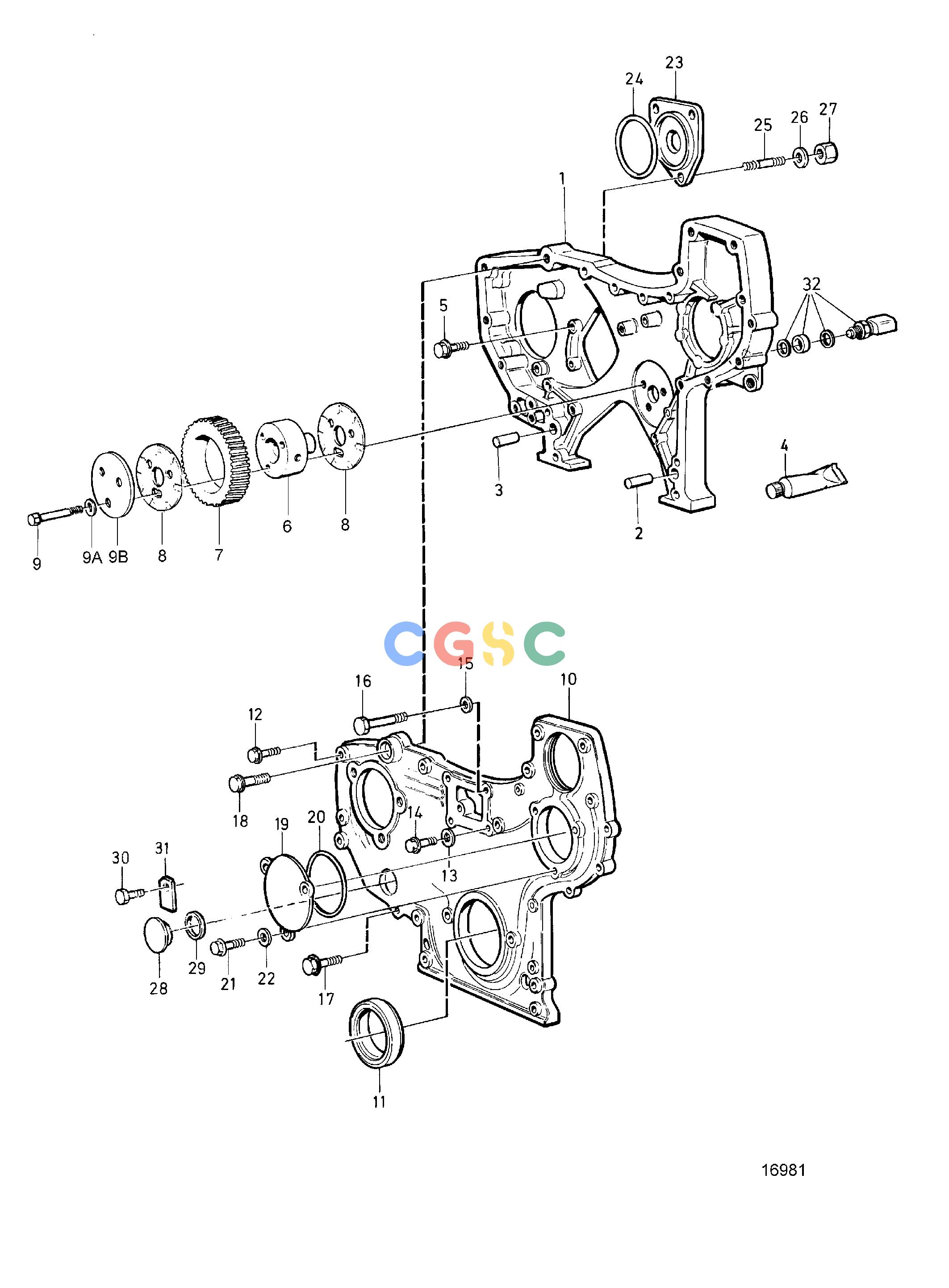

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
471505
|
[1] |
Timing gear casing
|
|
| 2. |
941511
|
[1] |
Pin
|
|
| 3. |
941510
|
[1] |
Pin
|
|
| 4. |
1161231
|
[1] |
Sealant
|
304ml
|
| 4. |
1161277
|
[1] |
Sealant
|
20g
|
| 5. |
471534
|
[2] |
Flange screw
|
L=28mm
|
| 5. |
471535
|
[2] |
Flange screw
|
L=58mm
|
| 6. |
479779
|
[1] |
Bearing spindle
|
|
| 7. |
8192578
|
[1] |
Idler gear
|
|
| 8. |
478951
|
[2] |
Thrust washer
|
|
| 9. |
8192579
|
[3] |
Flange screw
|
|
| 9A. |
942180
|
[3] |
Disc spring
|
|
| 9B. |
478954
|
[1] |
Bearing shield
|
|
| 10. |
3826306
|
[1] |
Timing gear cover
|
|
| 11. |
477118
|
[1] |
Sealing ring
|
|
| 12. |
947760
|
[7] |
Flange screw
|
M8x40mm
|
| 12. |
948217
|
[2] |
Flange screw
|
M8x45mm
|
| 12. |
965216
|
[1] |
Flange screw
|
M8x55mm
|
| 12. |
965182
|
[7] |
Flange screw
|
M8x80mm
|
| 13. |
947281
|
[2] |
Gasket
|
|
| 14. |
946471
|
[2] |
Flange screw
|
M10x16mm
|
| 15. |
955895
|
[2] |
Washer
|
|
| 16. |
100338
|
[2] |
Hexagon screw
|
M10x95mm
|
| 17. |
965220
|
[1] |
Flange screw
|
|
| 18. |
965227
|
[1] |
Flange screw
|
M12x55mm, earlier prod
|
| 18. |
970989
|
[1] |
Hexagon screw, cool. water pipe
|
M12x180mm
|
| 19. |
471559
|
[1] |
Cover
|
|
| 20. |
925257
|
[1] |
O-ring
|
|
| 21. |
945444
|
[3] |
Flange screw
|
|
| 22. |
941907
|
[3] |
Spring washer
|
|
| 23. |
420178
|
[1] |
Cover, hydraulic pump
|
|
| 24. |
975610
|
[1] |
O-ring
|
|
| 25. |
967951
|
[3] |
Stud
|
|
| 26. |
941911
|
[3] |
Spring washer
|
|
| 27. |
971073
|
[3] |
Hexagon nut
|
|
| 28. |
7738900_012
|
|
Plug
|
|
| 29. |
7738900_012
|
|
Sealing ring
|
|
| 30. |
7738900_012
|
|
Screw
|
|
| 31. |
7738900_012
|
|
Anchorage
|
|
| 32. |
|
|
|
See group 30
|
