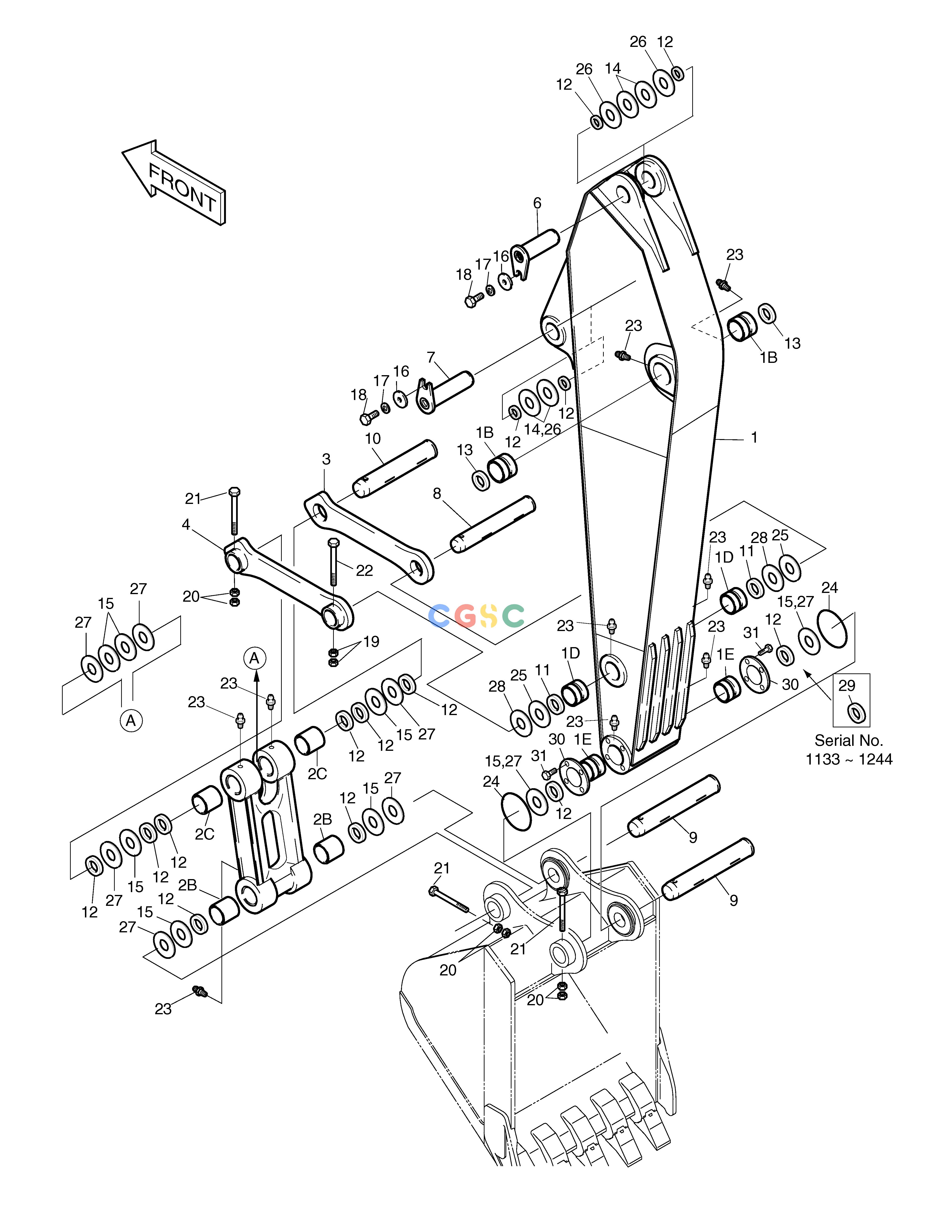

斗山零件查询ARM -3.1m(H.D)-YUDAI SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
909 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
701-00200
|
[1] |
ARM ASS'Y-3.1m(H.D)
|
|
| 1. |
701-00201
|
[1] |
ARM SUB ASS'Y-3.1m(H.D)
|
|
| 1. |
701-00201A
|
[1] |
ARM SUB ASS'Y-3.1m(H.D)
|
701-00201B
|
| 1. |
701-00201B
|
[1] |
ARM SUB ASS'Y-3.1m(H.D)
|
701-00201C
|
| 1. |
701-00201C
|
[1] |
ARM SUB ASS'Y-3.1m(H.D)
|
|
| 10. |
2123-2224B
|
[1] |
PIN
|
|
| 11. |
2180-1106BD24
|
[2] |
SEAL;DUST
|
|
| 12. |
2180-1106BD6
|
[12] |
SEAL;DUST
|
|
| 12. |
2180-1106BD6
|
[14] |
SEAL;DUST
|
|
| 13. |
2180-1106BD14
|
[2] |
SEAL;DUST
|
|
| 14. |
2114-1059D113
|
[4] |
SHIM
|
|
| 15. |
2114-1059D219
|
[8] |
SHIM
|
|
| 16. |
2116-1060D5
|
[2] |
STOPPER
|
|
| 17. |
S5102901
|
[2] |
. WASHER;SPRING
|
|
| 18. |
S0521361
|
[2] |
BOLT M16X2.0X35
|
|
| 19. |
S4012933
|
[2] |
NUT
|
|
| 1B. |
2110-1333B
|
[2] |
BUSHING
|
110-00151
|
| 1B. |
110-00151
|
[2] |
BUSHING
|
|
| 1D. |
2110-1319A
|
[2] |
BUSHING
|
110-00152
|
| 1D. |
110-00152
|
[2] |
BUSHING
|
|
| 1E. |
110-00141
|
[2] |
BUSHING
|
|
| 2. |
2155-1327E
|
[1] |
LINK;PUSH ASS'Y
|
2155-1327G
|
| 2. |
2155-1327G
|
[1] |
LINK;PUSH ASS'Y
|
|
| 20. |
S4013133
|
[6] |
NUT
|
|
| 21. |
S0571861
|
[3] |
BOLT M20X2.5X170
|
|
| 22. |
S0566961
|
[1] |
BOLT M16X2.0X140
|
|
| 23. |
S6710041
|
[9] |
NIPPLE,GREASE
|
|
| 24. |
180-00077D6
|
[2] |
O-RING
|
|
| 25. |
2114-1059D63
|
[2] |
SHIM
|
|
| 26. |
2114-1059D114
|
[4] |
SHIM
|
|
| 27. |
2114-1059D234
|
[8] |
SHIM
|
|
| 28. |
2114-1059D118
|
[2] |
SHIM
|
|
| 29. |
2180-1106BD28
|
[2] |
SEAL;DUST
|
|
| 2B. |
2110-1376A
|
[2] |
BUSHING
|
110-00141
|
| 2B. |
110-00141
|
[2] |
BUSHING
|
|
| 2C. |
2110-1358A
|
[2] |
BUSHING
|
110-00158
|
| 2C. |
110-00158
|
[2] |
BUSHING
|
|
| 3. |
2155-1310B
|
[1] |
LINK;GUIDE(R.H)
|
|
| 30. |
114-00379
|
[2] |
SPACER
|
|
| 31. |
120-00223
|
[8] |
BOLT M12X1.25X25
|
|
| 4. |
2155-1311B
|
[1] |
LINK;GUIDE(L.H)
|
|
| 6. |
2123-2220C
|
[1] |
PIN
|
|
| 7. |
2123-2215C
|
[1] |
PIN
|
|
| 8. |
2123-2222B
|
[1] |
PIN
|
|
| 9. |
2123-2223C
|
[2] |
PIN
|
|
