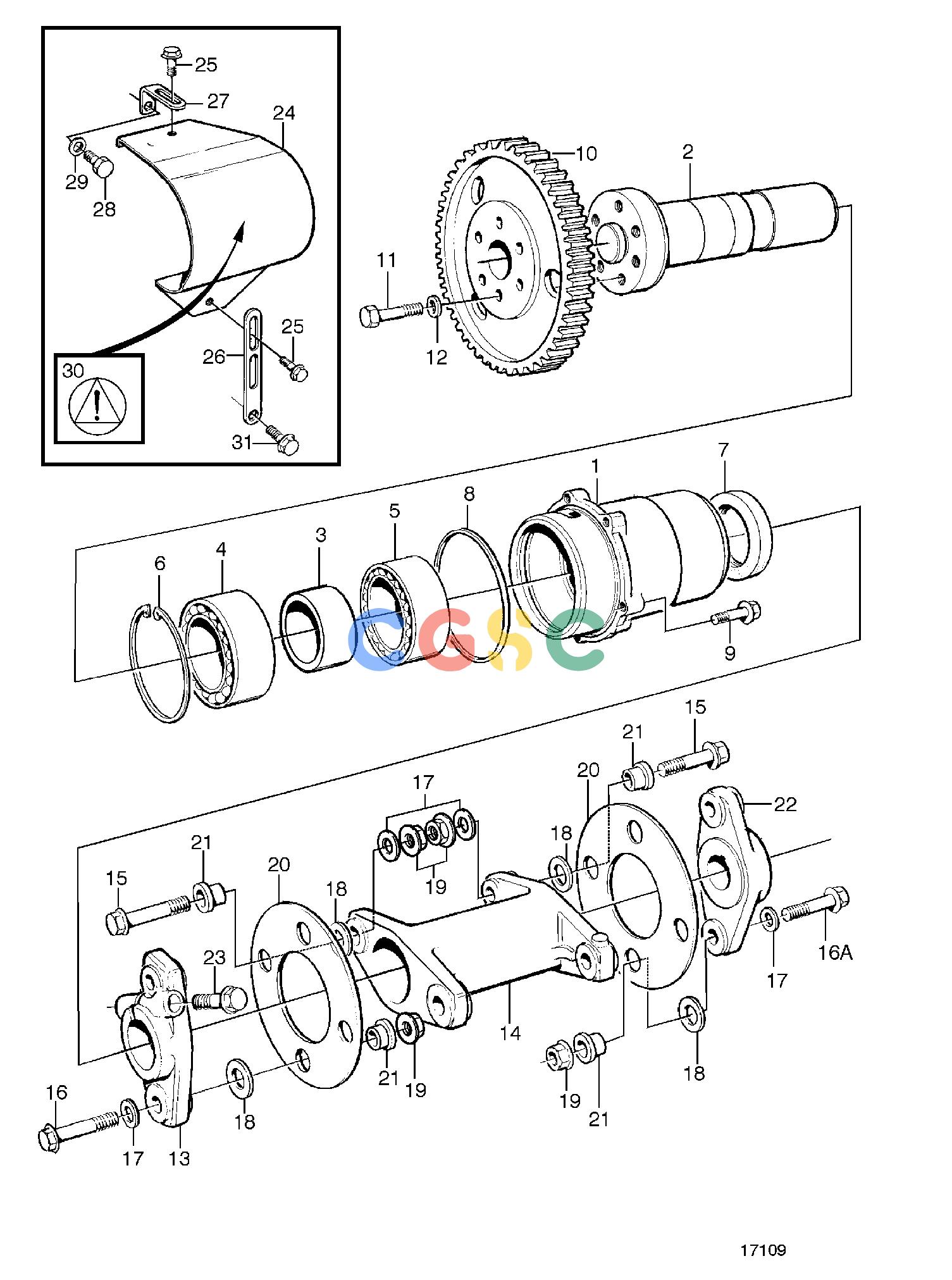

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AFuel SystemCoupling for Fuel Injection Pump with CoverEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
513 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
478799
|
[1] |
Bearing housing
|
|
| 2. |
478411
|
[1] |
Axle shaft
|
|
| 3. |
1546132
|
[1] |
Stop ring
|
|
| 4. |
184788
|
[1] |
Ball bearing
|
|
| 5. |
11014
|
[1] |
Ball bearing
|
|
| 6. |
914540
|
[1] |
Snap ring
|
|
| 7. |
1546221
|
[1] |
Sealing ring
|
|
| 8. |
423123
|
[1] |
Sealing ring
|
|
| 9. |
948336
|
[5] |
Flange screw
|
(946671)
|
| 10. |
478429
|
[1] |
Gear
|
|
| 11. |
471534
|
[6] |
Flange screw
|
|
| 12. |
942385
|
[6] |
Disc spring
|
|
| 13. |
1547352
|
[1] |
Companion flange
|
|
| 14. |
1556175
|
[1] |
Spacer
|
|
| 15. |
965185
|
[4] |
Flange screw
|
L=40mm
|
| 16. |
965220
|
[2] |
Flange screw
|
L=45mm
|
| 16A. |
965185
|
[2] |
Flange screw
|
L=40mm
|
| 17. |
960148
|
[8] |
Washer
|
10,5x22x2mm
|
| 18. |
479399
|
[8] |
Washer
|
15x28x2mm
|
| 19. |
971095
|
[8] |
Flange nut
|
|
| 20. |
479458
|
[8] |
Companion disc
|
|
| 21. |
478897
|
[8] |
Sleeve
|
|
| 22. |
478358
|
[1] |
Companion flange
|
TAMD72P-A
|
| 22. |
1547351
|
[1] |
Companion flange
|
TAMD72WJ-A
|
| 23. |
471529
|
[1] |
Flange screw
|
|
| 24. |
3825430
|
[1] |
Protecting plate
|
TAMD72P-A
|
| 24. |
865745
|
[1] |
Protecting plate
|
TAMD72WJ-A
|
| 25. |
965175
|
[2] |
Flange screw
|
|
| 26. |
965545
|
[1] |
Bracket
|
(965542)
|
| 27. |
965552
|
[1] |
Bracket
|
|
| 28. |
946440
|
[1] |
Flange screw
|
|
| 29. |
941907
|
[1] |
Spring washer
|
Early type
|
| 30. |
3827294
|
[1] |
Decal
|
|
| 31. |
|
|
|
See group 21
|
