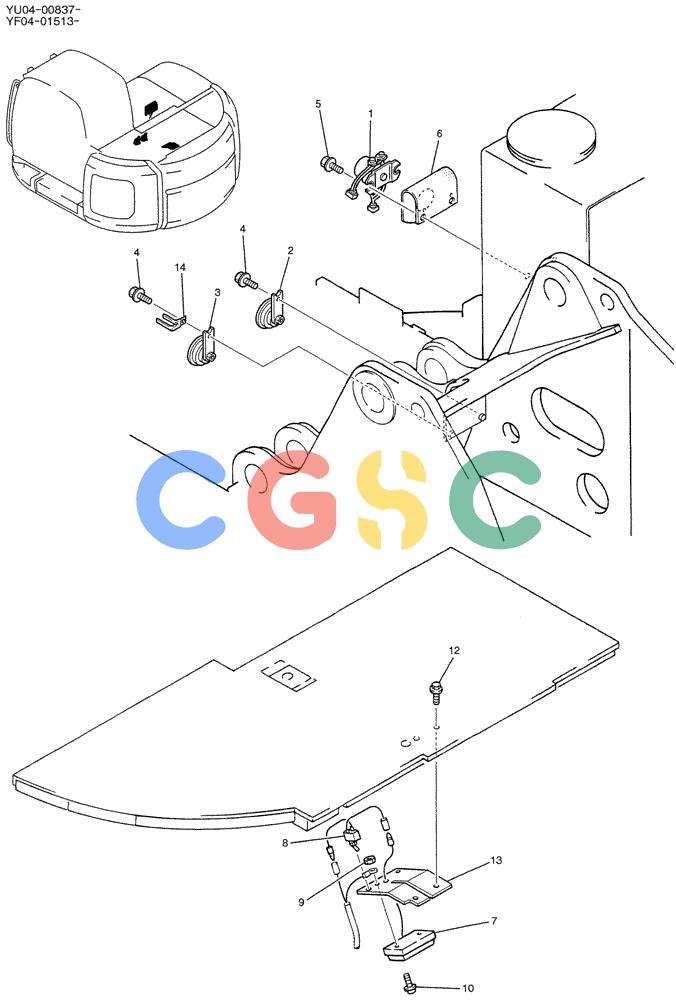

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-059) - ELEC ASSY, UPP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
938 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF03E00002F1 | [1] | ELEC ASSY, UPP | |
| 1. | YN24S00003F1 | [1] | RELAY | KOBASSY, BATTERY |
| 2. | CM53S00002F1 | [1] | HORN | KOBASSY |
| 3. | CM53S00002F2 | [1] | HORN | KOBASSY |
| 4. | ZM11C08025 | [2] | BOLT | KOBSEMS |
| 5. | ZM22C08030 | [2] | BOLT | KOBSEMS |
| 6. | YT03E01006P1 | [1] | RUBBER | KOB |
| 7. | 4056R4F1 | [1] | LAMP | KOBASSY, ROOM |
| 8. | YT50S00005P1 | [1] | SWITCH | KOB |
| 9. | ZN18C05004 | [2] | NUT | KOB |
| 12. | ZM32C12030 | [2] | BOLT | KOBSEMS |
| 14. | 2432R233D2 | [1] | CLIP | KOB37x12x40mm |
