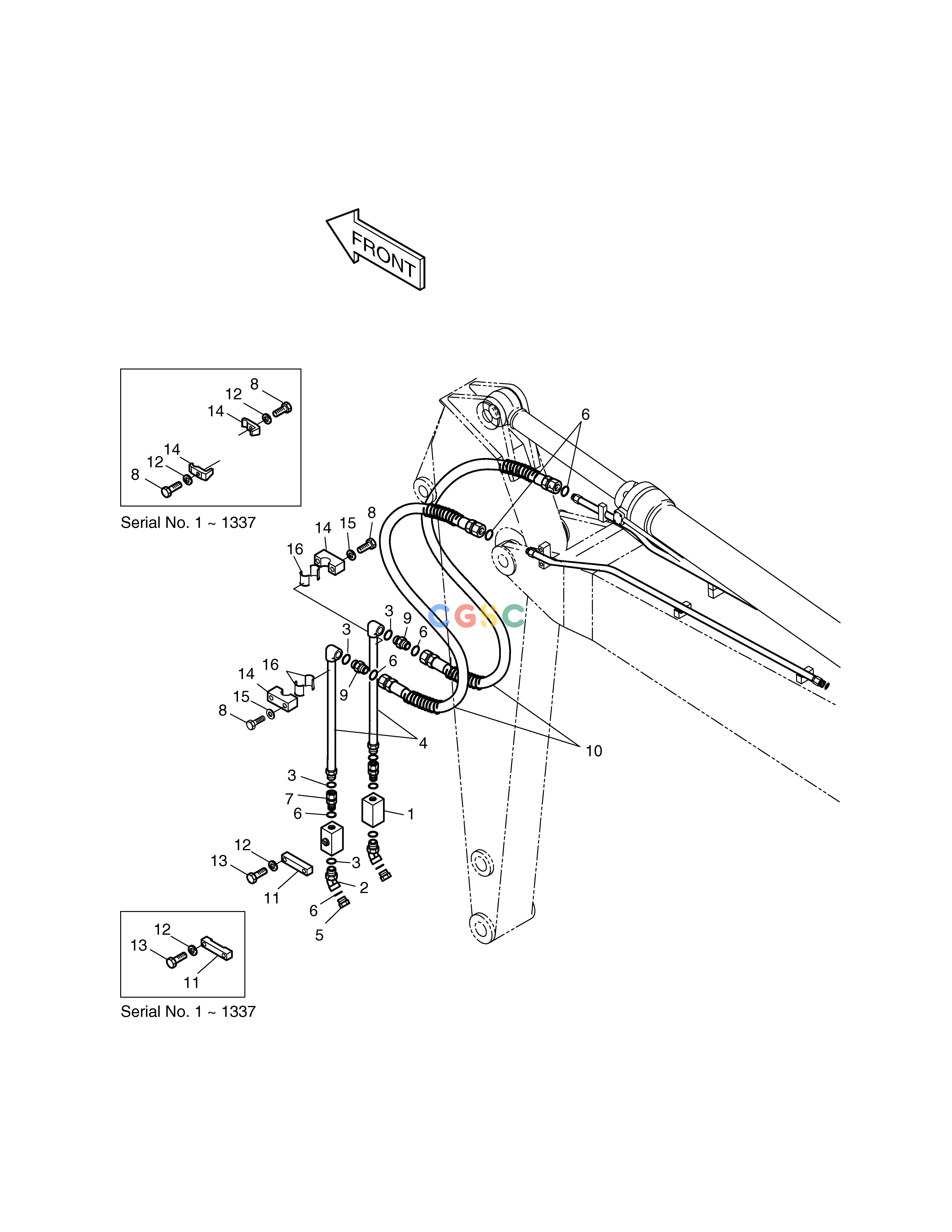

斗山零件查询ARM PIPING-ARM 3.1m(ONE & TWO WAY) SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
1030 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2141
|
[-] |
ARM PIPING-ONE & TWO WAY
|
|
| -. |
400-00569
|
[-] |
ARM PIPING-ONE & TWO WAY
|
|
| 1. |
2420-9631
|
[2] |
VALVE;STOP
|
2420-9631A
|
| 1. |
2420-9631A
|
[2] |
VALVE;STOP
|
|
| 10. |
2184-1196D83
|
[2] |
HOSE
|
|
| 10. |
2184-1196D90
|
[2] |
HOSE
|
|
| 11. |
2124-1697
|
[2] |
CLAMP
|
|
| 11. |
124-00170
|
[2] |
CLAMP
|
|
| 12. |
S5102901
|
[8] |
. WASHER;SPRING
|
|
| 12. |
S5102903
|
[4] |
WASHER
|
|
| 13. |
S0566053
|
[4] |
BOLT M16X2.0X90
|
|
| 13. |
S0566161
|
[4] |
BOLT M16X2.0X95
|
|
| 14. |
2124-1551
|
[4] |
CLAMP;PIPE
|
|
| 14. |
2124-1693
|
[4] |
CLAMP;PIPE
|
|
| 15. |
S5102703
|
[8] |
WASHER
|
|
| 16. |
2161-2505
|
[8] |
RUBBER
|
|
| 2. |
2181-2816D3
|
[2] |
ELBOW
|
|
| 2. |
DS2332013
|
[2] |
ELBOW
|
|
| 3. |
S8000381
|
[6] |
O-RING
|
|
| 4. |
2140-1681
|
[2] |
PIPE;ARM
|
|
| 4. |
140-00040
|
[2] |
PIPE
|
|
| 5. |
2181-2817D3
|
[2] |
CAP
|
|
| 5. |
2181-2820D6
|
[2] |
PLUG
|
|
| 6. |
2180-1026D37
|
[8] |
O-RING
|
|
| 7. |
2181-2566D9
|
[2] |
ADAPTER
|
|
| 8. |
S0560953
|
[8] |
BOLT M12X1.75X60
|
|
| 8. |
S0565861
|
[4] |
BOLT M16X2.0X80
|
|
| 9. |
2181-4133D35
|
[2] |
ADAPTER
|
|
