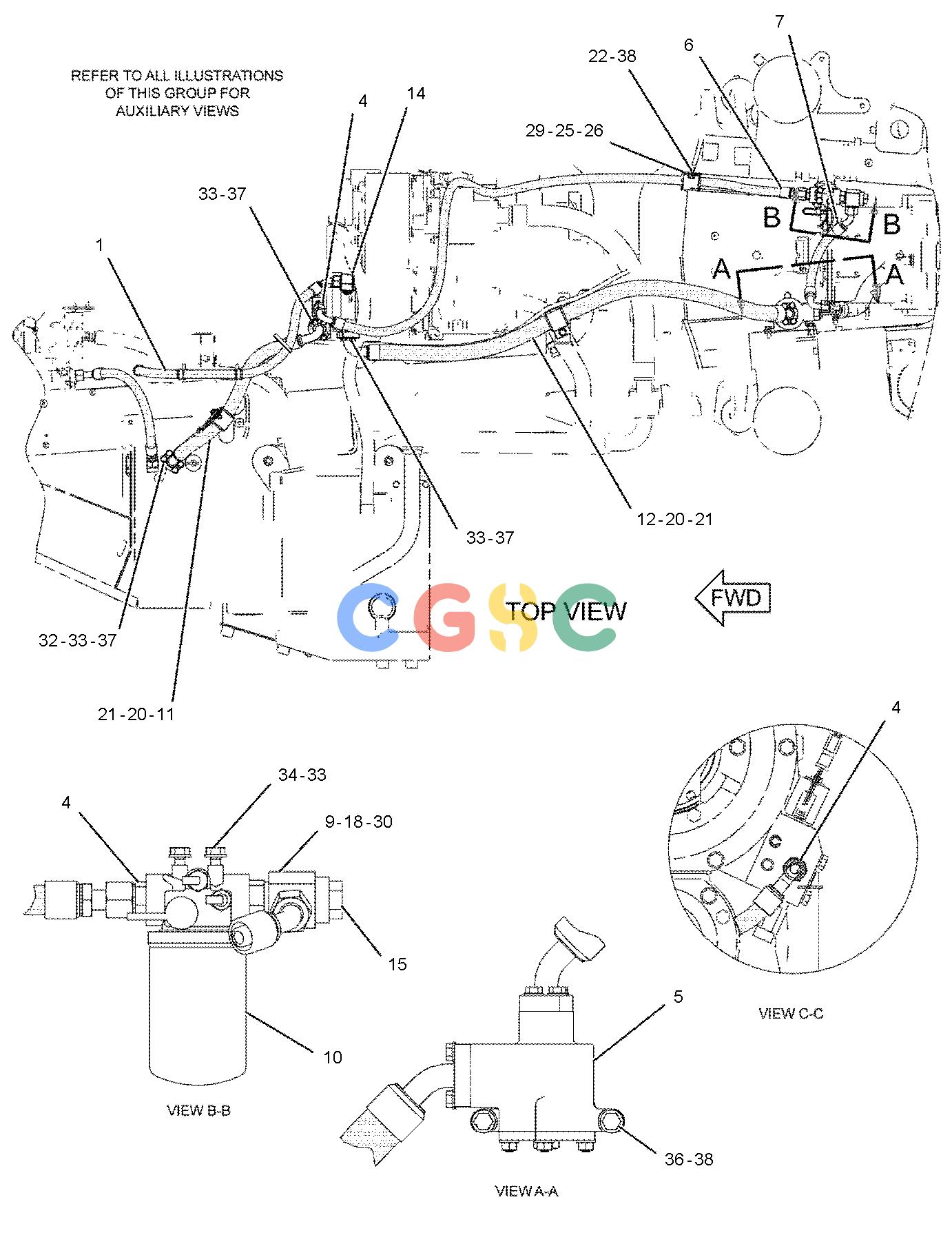

卡特零件查询（730） 150-7559: FILTER & LINES GP-POWER TRAIN
广数供应链运营团队, 15 02月, 2025，浏览：
961 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2T-1661I | [1] | HOSE AS | |
| 2. | 6U-0456 | [1] | STRAP | |
| 3. | 141-7722I | [1] | HOSE AS | |
| 4. | 148-8327 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8637 | [1] | CONNECTOR | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 148-9311Y | [1] | SCREEN GP-MAGNETIC(POWER TRAIN) | |
| 6. | 180-1693I | [1] | HOSE AS | |
| 7. | 180-1694I | [1] | HOSE AS | |
| 8. | 193-2123 | [1] | PLATE-SUPPORT | |
| 9. | 196-1203 | [1] | TEE | |
| 10. | 196-5540Y | [1] | FILTER GP-OIL(HYDRAULIC)(DIFF LOCK, OUTPUT XFR GEAR) | |
| 11. | 201-7213I | [1] | HOSE AS | |
| 12. | 205-5597I | [1] | HOSE AS | |
| 13. | 192-1747I | [1] | HOSE AS | |
| 14. | 148-8347 | [1] | ELBOW AS | |
| | 6V-9007 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 15. | | [1] | PLUG AS |
| | 9S-4183 | [1] | PLUG(1-1/16-12-THD) | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| 16. | 153-6237 | [1] | ELBOW AS | |
| | 6V-9004 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 17. | 1P-4578 | [4] | FLANGE-HALF | |
| 18. | 3D-2824 | [1] | SEAL-O-RING | |
| 19. | 3U-2755 | [2] | CLIP(LOOP) | |
| 20. | 4J-0520 | [4] | SEAL-O-RING | |
| 21. | 4J-0522 | [2] | SEAL-O-RING | |
| 22. | 8T-4956M | [2] | BOLT(M12X1.75X35-MM) | |
| 23. | 5C-7261M | [3] | NUT(M8X1.25-THD) | |
| 24. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 25. | 5P-7468 | [3] | CLIP(SLOT) | |
| 26. | 5P-7469 | [3] | CLIP(TAB) | |
| 27. | 5P-8444 | [1] | GROMMET(37-MM ID) | |
| 28. | 6V-0545 | [1] | GROMMET | |
| 29. | 6V-4349 | [1] | GROMMET | |
| 30. | 6V-9746 | [1] | SEAL-O-RING | |
| 31. | 7X-2537M | [1] | BOLT(M8X1.25X35-MM) | |
| 32. | 8C-3206 | [2] | FLANGE-HALF | |
| 33. | 8T-4121 | [18] | WASHER-HARD(11X21X2.5-MM THK) | |
| 34. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 35. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 36. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 37. | 8T-4196M | [12] | BOLT(M10X1.5X35-MM) | |
| 38. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 39. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 40. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 41. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
