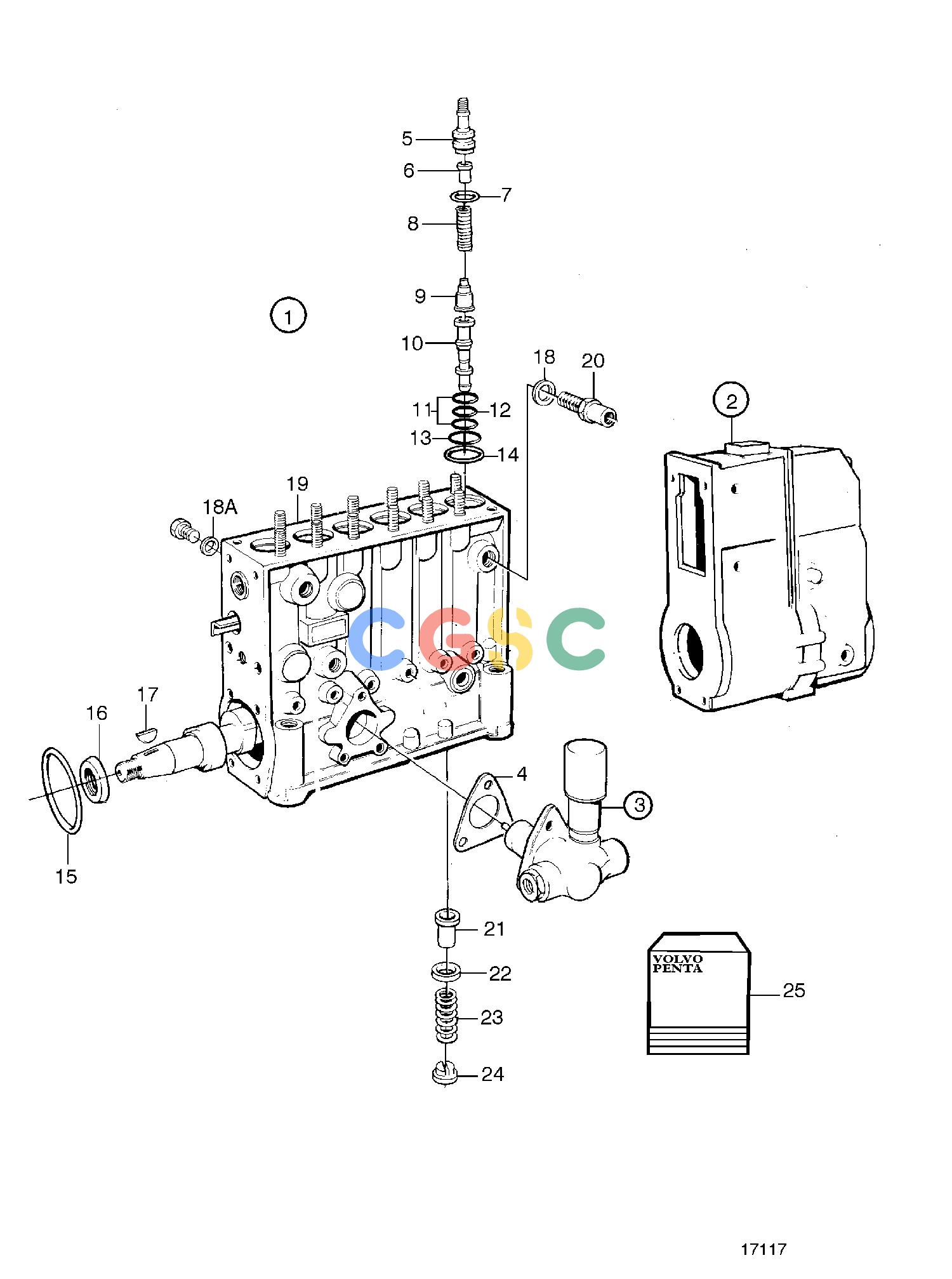

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AFuel SystemFuel Injection Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825439
|
[1] |
Injection pump
|
|
| 1. |
3803734
|
[1] |
Injection pump
|
|
| 2. |
3825500
|
[1] |
Governor
|
|
| 2. |
|
|
|
|
| 3. |
863474
|
[1] |
Feed pump
|
|
| 3. |
|
|
|
|
| 4. |
863370
|
[1] |
Gasket
|
(6232208)
|
| 5. |
|
|
|
|
| 6. |
1699453
|
[6] |
Peg
|
|
| 7. |
862400
|
[6] |
O-ring
|
|
| 8. |
1699454
|
[6] |
Compression spring
|
|
| 9. |
|
|
|
|
| 10. |
3097195
|
[6] |
Pump element
|
|
| 11. |
|
|
|
|
| 12. |
240422
|
[6] |
O-ring
|
|
| 13. |
11996307
|
[6] |
O-ring
|
|
| 14. |
862402
|
[1] |
O-ring
|
|
| 15. |
862423
|
[1] |
O-ring
|
|
| 16. |
1699474
|
[1] |
Sealing ring
|
|
| 17. |
35168
|
[1] |
Key
|
|
| 18. |
969011
|
[1] |
Gasket
|
|
| 18A. |
11996
|
[1] |
Gasket
|
|
| 19. |
|
|
|
|
| 20. |
11996309
|
[1] |
Overflow valve
|
|
| 21. |
862406
|
[6] |
Control sleeve
|
|
| 22. |
239984
|
[6] |
Spring disc
|
|
| 23. |
1699465
|
[6] |
Compression spring
|
|
| 24. |
862408
|
[6] |
Spring disc
|
|
| 25. |
11998401
|
[1] |
Small parts kit
|
|
