斗山零件查询BUCKET-0.55㎥-LONG FRONT SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
156 次

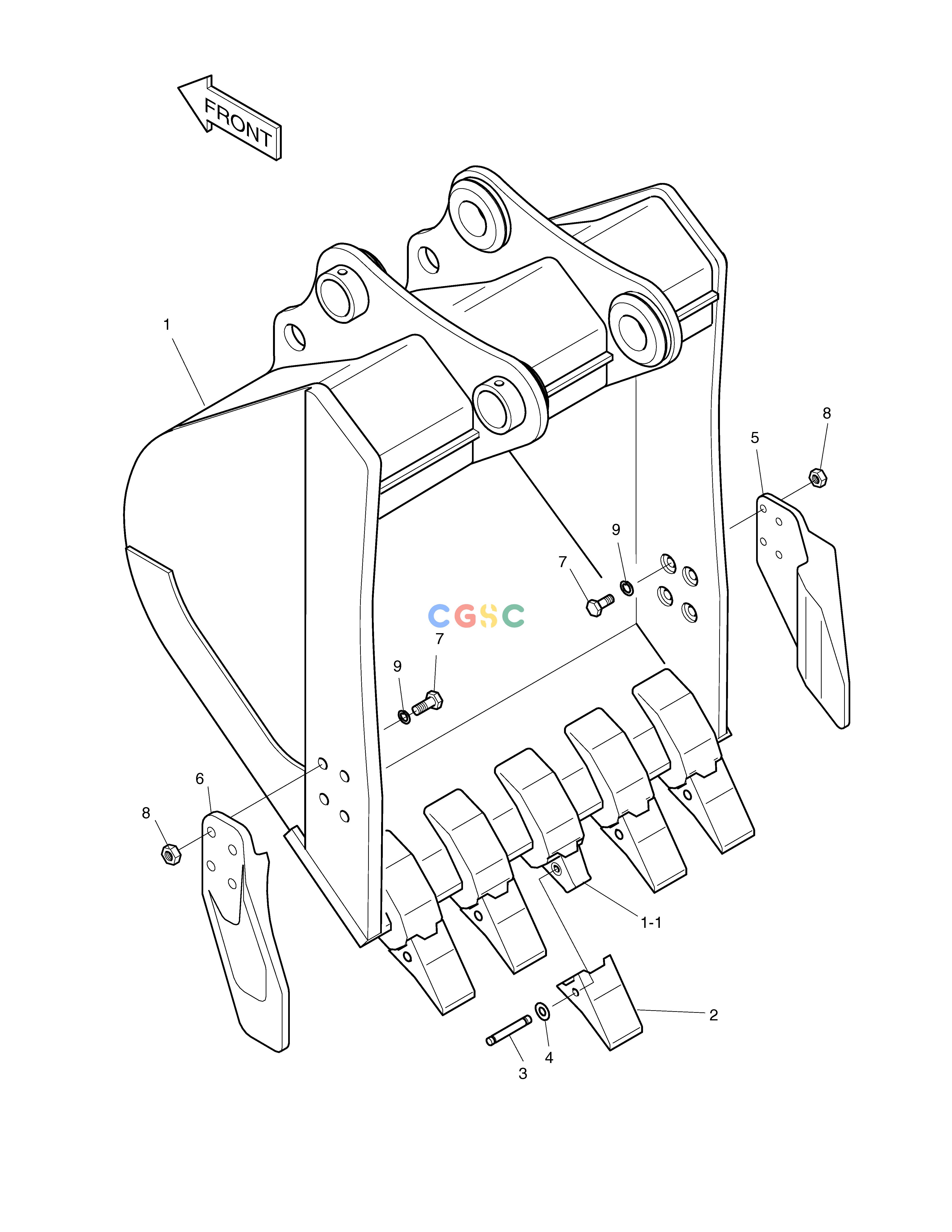

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2704-1382G
|
[1] |
BUCKET ASS'Y-0.63m³
|
2704-1382H
|
| -. |
2704-1382H
|
[1] |
BUCKET ASS'Y-0.63m³
|
|
| 1. |
NA03003
|
[1] |
|
|
| 1-1. |
2713-1222A
|
[5] |
ADAPTER;TOOTH
|
|
| 2. |
2713-1221A
|
[5] |
POINT;TOOTH
|
|
| 3. |
2705-1022
|
[5] |
. PIN,LOCKING
|
|
| 4. |
2114-1859
|
[5] |
. WASHER,LOCKING
|
|
| 5. |
2713-1228
|
[1] |
CUTTER;SIDE(R)
|
|
| 5. |
2713-1228A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 6. |
2713-1229
|
[1] |
CUTTER;SIDE(L)
|
|
| 6. |
2713-1229A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 7. |
S0570061
|
[8] |
BOLT M20X2.5X60
|
|
| 7. |
S0574561
|
[8] |
BOLT M24X3.0X60
|
|
| 8. |
S4013133
|
[8] |
NUT
|
|
| 8. |
S4013333
|
[8] |
. NUT
|
|
| 9. |
2114-9012
|
[8] |
WASHER;HARDEN
|
|
| 9. |
2114-1831
|
[8] |
WASHER;HARDEN
|
|
