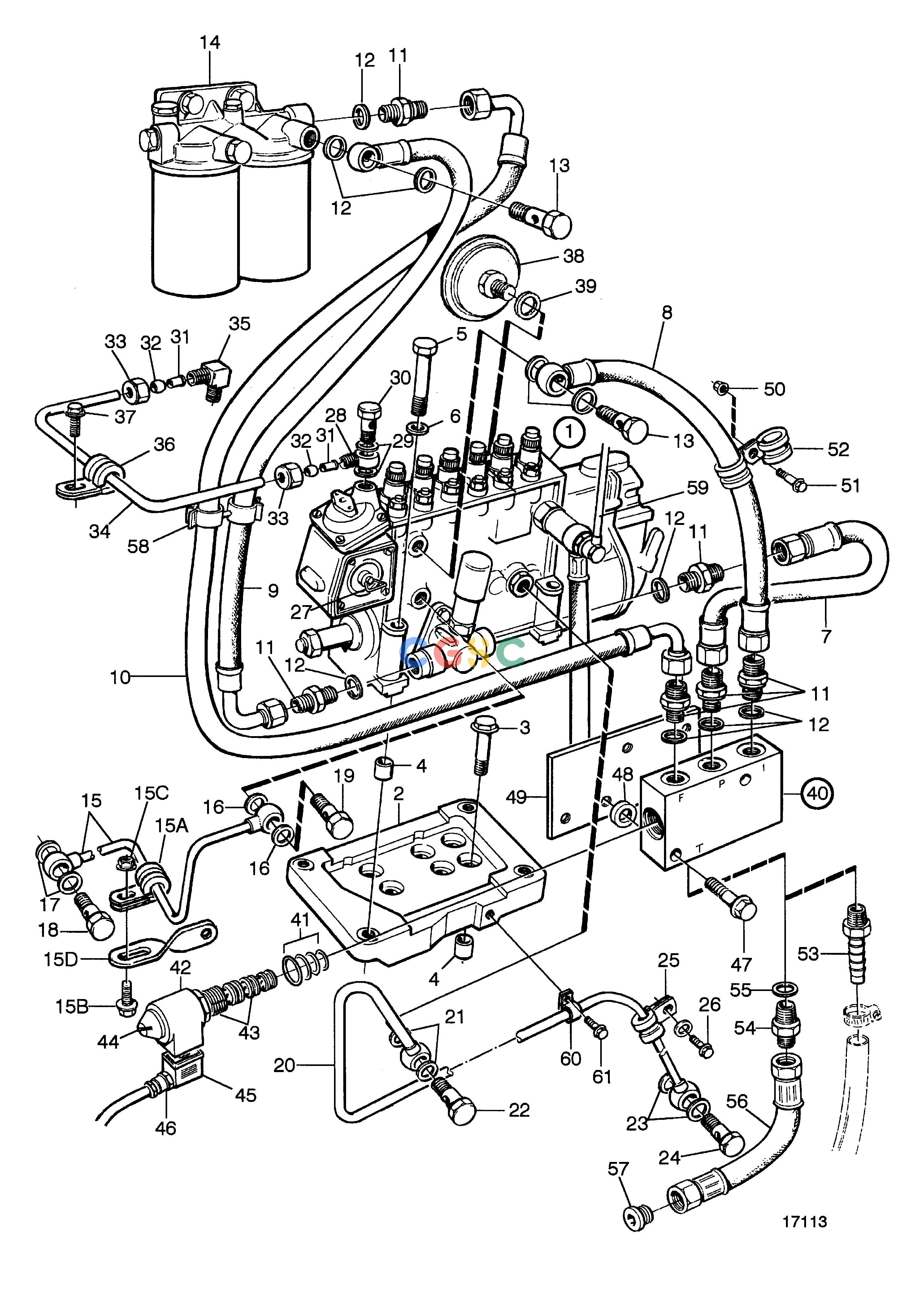

沃尔沃零件查询TAMD72P-A; TAMD72WJ-AFuel SystemInjection Pump, Fuel Filter and Shut-off ValveEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
168 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825155
|
[1] |
Injection pump
|
|
| 1. |
3803782
|
[1] |
Injection pump
|
|
| 1. |
|
|
|
|
| 2. |
477773
|
[1] |
Shelf
|
|
| 3. |
965185
|
[4] |
Flange screw
|
|
| 4. |
417588
|
[2] |
Guide sleeve
|
|
| 5. |
965189
|
[4] |
Flange screw
|
|
| 6. |
941908
|
[4] |
Spring washer
|
|
| 7. |
866700
|
[1] |
Hose
|
L=175mm
|
| 8. |
866701
|
[1] |
Hose
|
L=405mm
|
| 9. |
866702
|
[1] |
Hose
|
L=460mm
|
| 10. |
866703
|
[1] |
Hose
|
L=660mm
|
| 11. |
941754
|
[6] |
Nipple
|
|
| 12. |
969011
|
[10] |
Gasket
|
|
| 13. |
25167
|
[2] |
Hollow screw
|
|
| 14. |
7738900_030
|
|
Fuel filter, with installation comps.
|
|
| 15. |
477986
|
[1] |
Oil pressure pipe
|
|
| 15A. |
952623
|
[1] |
Clamp
|
|
| 15B. |
945407
|
[1] |
Flange nut
|
|
| 15C. |
945407
|
[1] |
Flange nut
|
|
| 15D. |
1136551
|
[1] |
Anchorage
|
|
| 16. |
947281
|
[2] |
Gasket
|
|
| 17. |
11994
|
[2] |
Gasket
|
|
| 18. |
969299
|
[1] |
Hollow screw
|
|
| 19. |
48634
|
[1] |
Hollow screw
|
|
| 20. |
865251
|
[1] |
Oil return pipe
|
|
| 21. |
907132
|
[2] |
Gasket
|
|
| 22. |
48634
|
[1] |
Hollow screw
|
|
| 23. |
969011
|
[2] |
Gasket
|
|
| 24. |
25167
|
[1] |
Hollow screw
|
|
| 25. |
947191
|
[1] |
Clamp
|
|
| 26. |
946471
|
[1] |
Flange screw
|
|
| 27. |
422525
|
[1] |
Attaching lug
|
|
| 28. |
945417
|
[1] |
Banjo nipple
|
|
| 29. |
11994
|
[2] |
Gasket
|
|
| 30. |
969299
|
[1] |
Hollow screw
|
|
| 31. |
944717
|
[2] |
Support sleeve
|
|
| 32. |
954364
|
[2] |
Sleeve
|
|
| 33. |
954356
|
[2] |
Fitting nut
|
|
| 34. |
945460
|
[1] |
Tube
|
L=760mm
|
| 35. |
954385
|
[1] |
Elbow nipple
|
|
| 36. |
940374
|
[1] |
Clamp
|
|
| 37. |
946440
|
[1] |
Flange screw
|
|
| 38. |
477173
|
[1] |
Pressure equalizer
|
|
| 39. |
969011
|
[1] |
Gasket
|
|
| 40. |
866698
|
[1] |
Valve
|
12V
|
| 40. |
866699
|
[1] |
Valve
|
24V
|
| 41. |
3825238
|
[1] |
Gasket
|
|
| 42. |
3825239
|
[1] |
Magnet
|
12V
|
| 42. |
3825240
|
[1] |
Magnet
|
24V
|
| 43. |
3825235
|
[1] |
Valve
|
12V
|
| 44. |
|
|
|
|
| 45. |
866664
|
[1] |
Housing
|
|
| 46. |
844576
|
[1] |
Grommet
|
|
| 47. |
947760
|
[2] |
Flange screw
|
|
| 48. |
191172
|
[2] |
Washer
|
|
| 49. |
7738900_051
|
|
Bracket
|
|
| 50. |
949278
|
[1] |
Flange lock nut
|
|
| 51. |
946544
|
[1] |
Flange screw
|
|
| 52. |
952631
|
[2] |
Clamp
|
|
| 53. |
3825000
|
[2] |
Hose nipple
|
Alt
|
| 54. |
977677
|
[1] |
Nipple
|
Included in kit 866997.
|
| 55. |
969011
|
[1] |
Gasket
|
Included in kit 866997.
|
| 56. |
866963
|
[1] |
Hose
|
Included in kit 866997.
|
| 57. |
22753
|
[2] |
Nipple
|
Included in kit 866997.
|
| 58. |
866663
|
[2] |
Retainer
|
|
| 59. |
7738900_036
|
|
Leak-off line, fuel hose connection
|
|
| 60. |
940374
|
[1] |
Clamp
|
|
| 61. |
946440
|
[1] |
Flange screw
|
|
