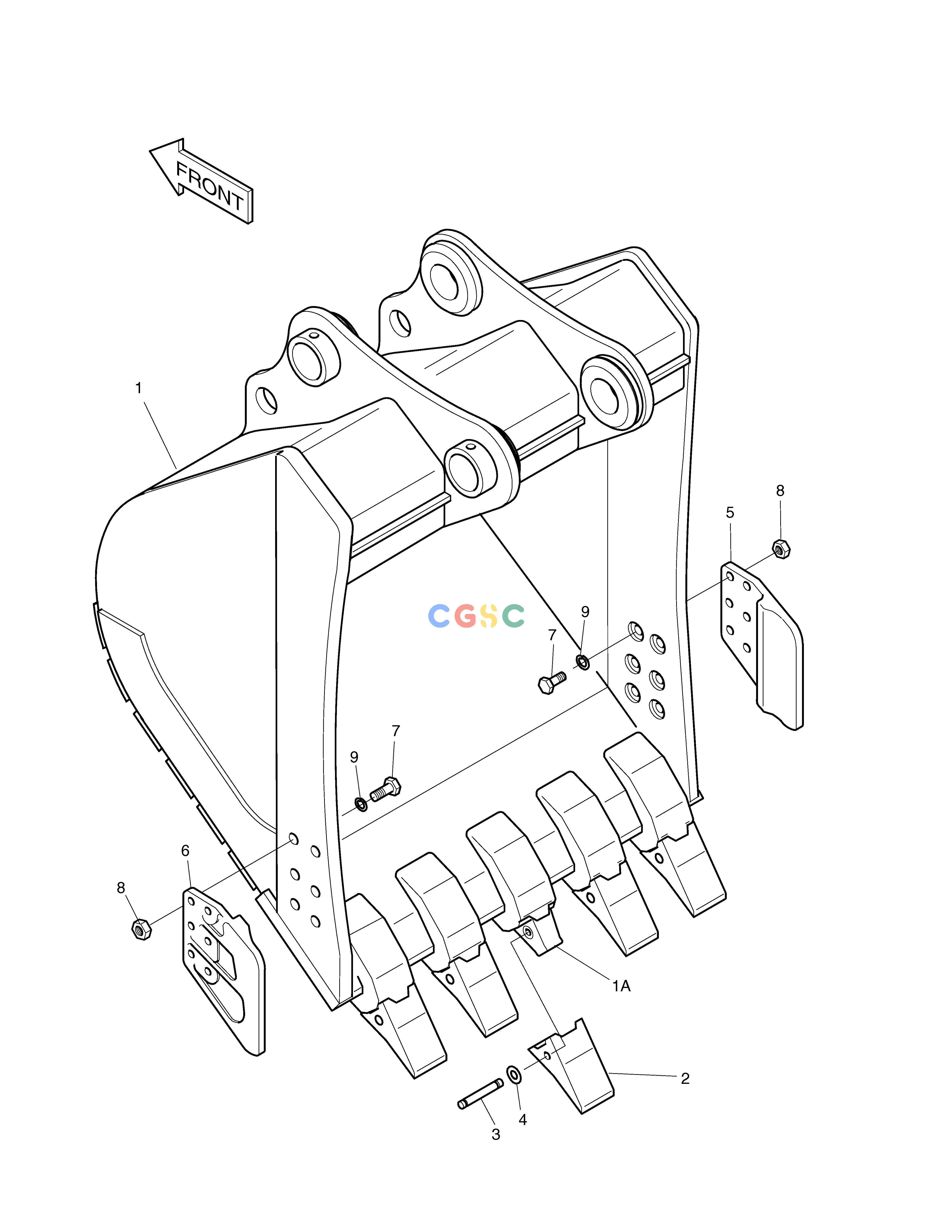

斗山零件查询BUCKET-1.1m³-H.D TYPE SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
151 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
704-00120A
|
[1] |
BUCKET ASSY-1.27㎥ HD TYPE
|
704-00120B
|
| -. |
704-00120B
|
[1] |
BUCKET-1.1㎥ HD TYPE
|
704-00120C
|
| -. |
704-00120C
|
[1] |
BUCKET ASSY-1.27㎥ HD TYPE
|
|
| 1. |
NA00207
|
[1] |
|
|
| 1A. |
2713-1220
|
[5] |
ADAPTER;TOOTH
|
|
| 2. |
2713-1219
|
[5] |
POINT;TOOTH
|
|
| 2. |
713-00054
|
[5] |
POINT;TOOTH
|
713-00054A
|
| 2. |
713-00054A
|
[5] |
POINT;TOOTH
|
|
| 3. |
2705-1021
|
[5] |
PIN;LOCKING
|
|
| 4. |
2114-1849A
|
[5] |
WASHER;LOCKING
|
|
| 5. |
2713-6034A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 6. |
2713-6035A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 7. |
S0574761
|
[12] |
BOLT M24X3.0X70
|
|
| 8. |
S4013333
|
[12] |
. NUT
|
|
| 9. |
2114-1831
|
[12] |
WASHER;HARDEN
|
2114-1831A
|
| 9. |
2114-1831A
|
[12] |
. WASHER
|
|
