| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

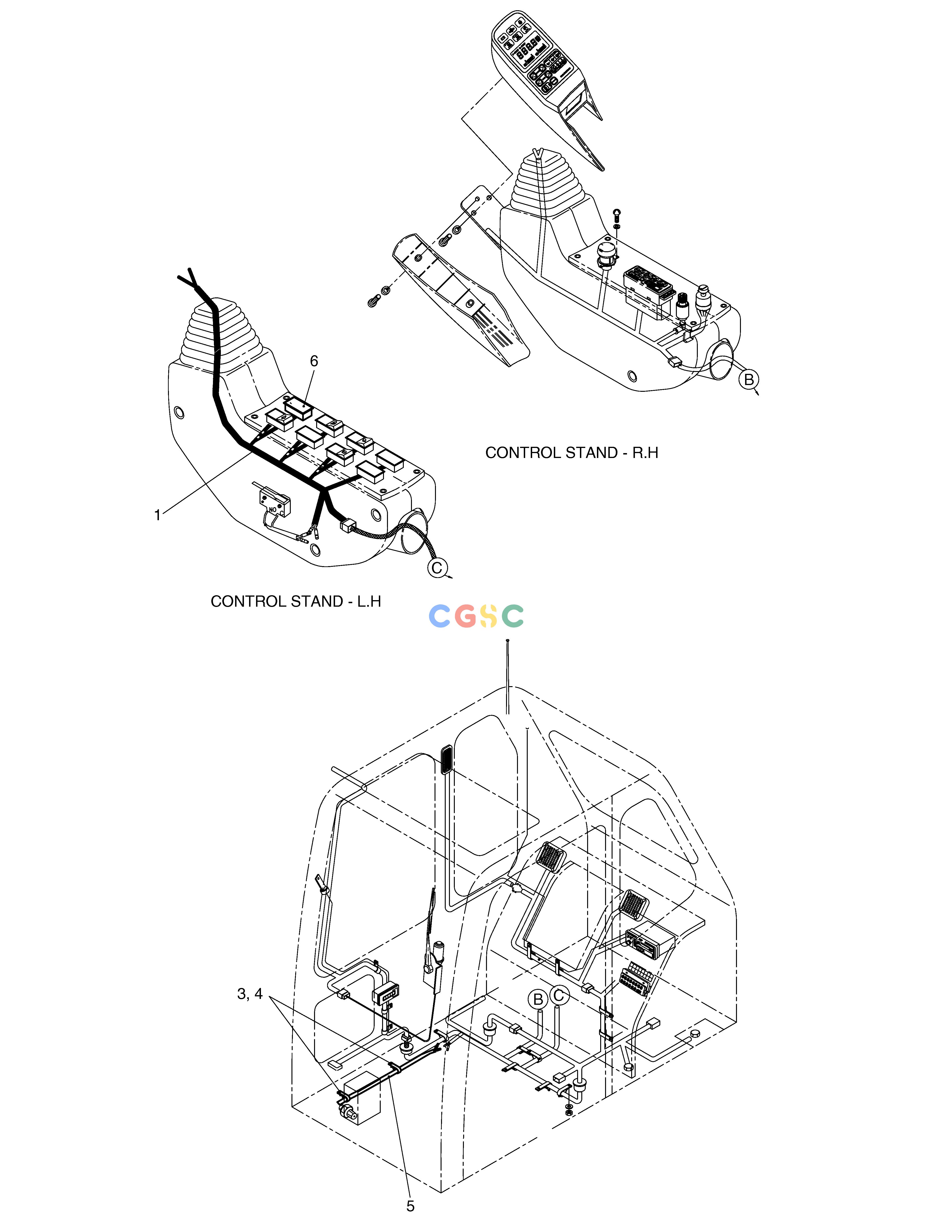

| -. | 500-00070 | [-] | ELECTRIC ASS'Y-PEDAL(BREAKER) | |
| 1. | 530-00124A | [1] | HARNESS;STAND(L.H) | |
| 3. | 2124-1509D1 | [2] | CLIP | |
| 4. | 2121-1305 | [2] | NUT | |
| 5. | 530-00126 | [1] | HARNESS;PRESSUSE SWITCH | |
| 6. | 2621-9002 | [1] | COVER |
广数供应链运营团队, 15 02月, 2025，浏览： 747 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 500-00070 | [-] | ELECTRIC ASS'Y-PEDAL(BREAKER) | |
| 1. | 530-00124A | [1] | HARNESS;STAND(L.H) | |
| 3. | 2124-1509D1 | [2] | CLIP | |
| 4. | 2121-1305 | [2] | NUT | |
| 5. | 530-00126 | [1] | HARNESS;PRESSUSE SWITCH | |
| 6. | 2621-9002 | [1] | COVER |
