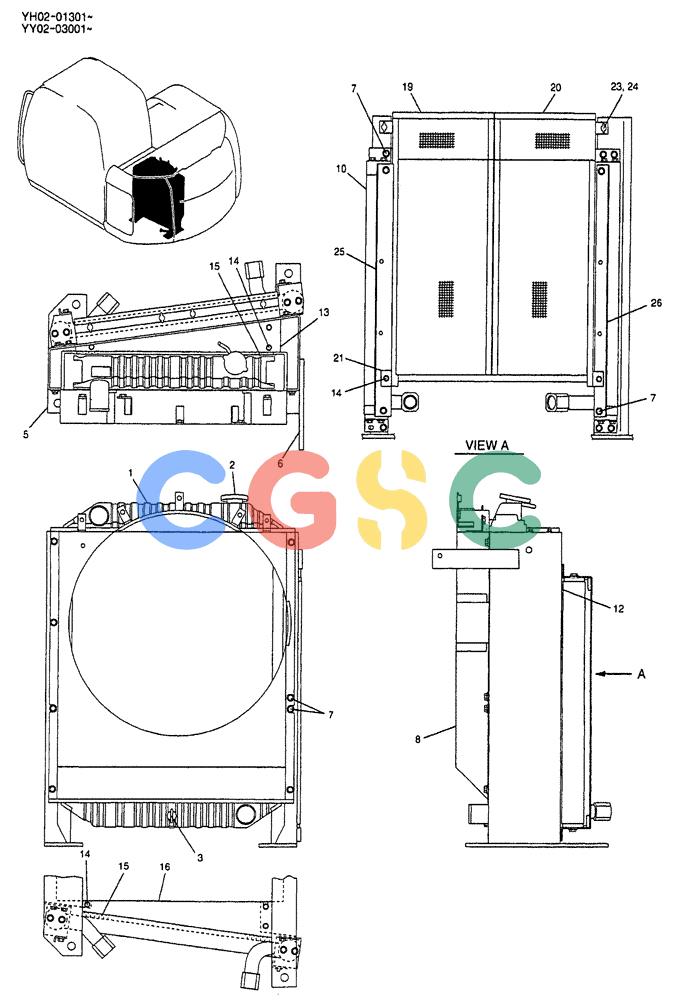

神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-006) - RADIATOR ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
575 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY05P00004F1 | [1] | RADIATOR | KOBASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCORE, RADIATOR |
| 2. | YT05P00001S002 | [1] | CAP | KOB |
| 3. | 2452U183S5 | [1] | PLUG | KOB |
| 5. | YY05P00004S005 | [1] | BRACKET | KOBASSY |
| 6. | YY05P00004S006 | [1] | BRACKET | KOBASSY |
| 7. | YW05P00009S010 | [18] | BOLT | KOB |
| 8. | YX05P00001S017 | [1] | SHROUD | KOB |
| 10. | YY05P00004S010 | [1] | OIL COOLER | KOB |
| 12. | YY05P00004S012 | [2] | PACKING | KOB |
| 13. | YY05P00004S013 | [1] | COVER | KOB |
| 14. | YW05P00009S003 | [8] | BOLT | KOB |
| 15. | YY05P00004S015 | [2] | PACKING | KOB |
| 16. | YY05P00004S016 | [1] | COVER | KOB |
| 19. | YY05P00004S019 | [1] | NET | KOB |
| 20. | YY05P00004S020 | [1] | NET | KOB |
| 21. | YY05P00004S021 | [1] | BRACKET | KOB |
| 23. | 2452U202S5 | [6] | BOLT | KOBM06x1.0 |
| 24. | 2452U412S20 | [6] | WASHER | KOB |
| 25. | YY05P00004S025 | [1] | BRACKET | KOB |
| 26. | YY05P00004S026 | [1] | BRACKET | KOB |
| . . | YY05P00004R100 | [1] | RADIATOR | KOBSERVICE KIT CONSISTS OF ITEM 1,2,3 |
