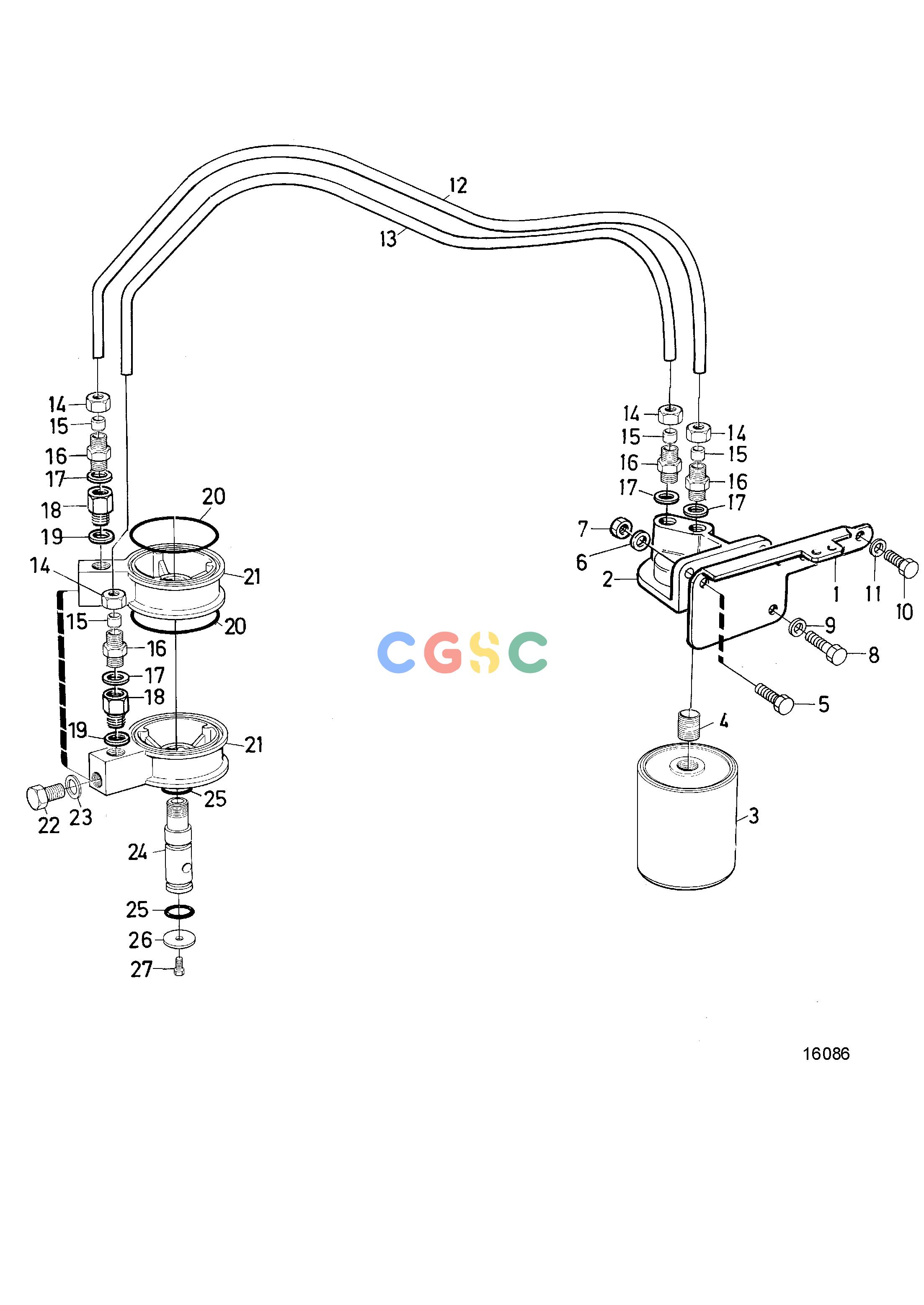

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ALubricating SystemBy-pass Filter, Front Mounting. Alt.EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025,浏览:
553 次


| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825375
|
[1] |
Bracket
|
(848510)
|
| 2. |
848511
|
[1] |
Housing
|
|
| 3. |
3827069
|
[1] |
Oil filter
|
(829390)
|
| 4. |
829160
|
[1] |
Nipple
|
|
| 5. |
970949
|
[2] |
Hexagon screw
|
(955319)
|
| 6. |
960148
|
[2] |
Washer
|
|
| 7. |
955783
|
[2] |
Hexagon nut
|
|
| 8. |
946173
|
[2] |
Flange screw
|
|
| 9. |
941907
|
[2] |
Spring washer
|
|
| 10. |
970944
|
[1] |
Hexagon screw
|
|
| 11. |
862692
|
[1] |
Washer
|
|
| 12. |
848514
|
[1] |
Tube
|
|
| 13. |
848515
|
[1] |
Tube
|
|
| 14. |
956984
|
[4] |
Fitting nut
|
|
| 15. |
1677898
|
[4] |
Ferrule
|
(956970)
|
| 16. |
963948
|
[4] |
Nipple
|
|
| 17. |
948883
|
[4] |
Gasket
|
(11996)
|
| 18. |
949620
|
[2] |
Reduction nipple
|
|
| 19. |
948885
|
[2] |
Gasket
|
(18677)
|
| 20. |
949647
|
[2] |
O-ring
|
|
| 21. |
|
|
|
|
| 21. |
848502
|
[2] |
Cap
|
|
| 22. |
960632
|
[2] |
Plug
|
|
| 23. |
948884
|
[2] |
Gasket
|
|
| 24. |
848505
|
[1] |
Tube
|
|
| 25. |
949658
|
[2] |
O-ring
|
|
| 26. |
862692
|
[1] |
Washer
|
|
| 27. |
970944
|
[1] |
Hexagon screw
|
|
