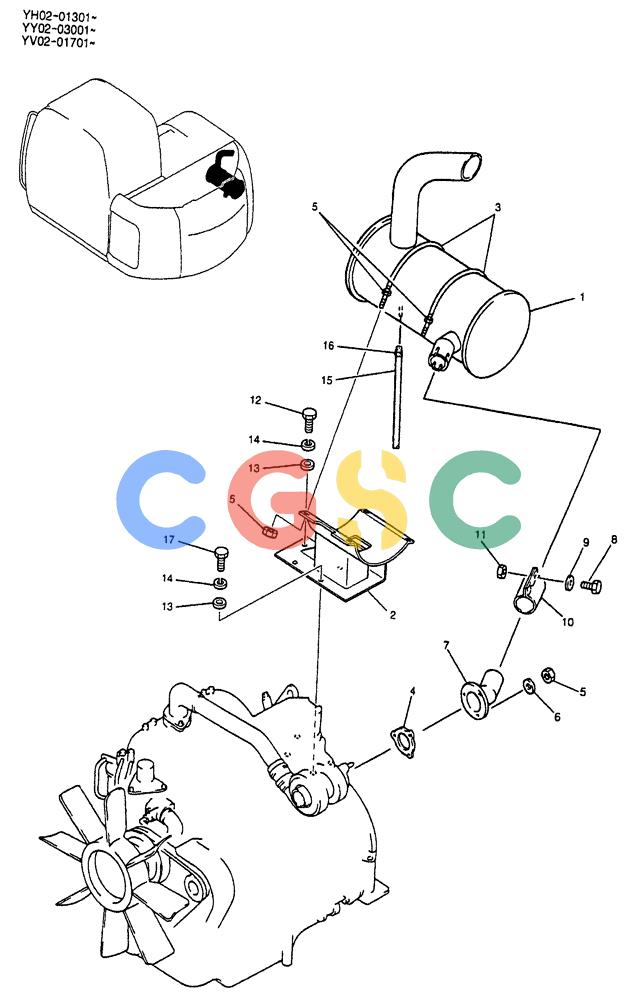

神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-009) - MUFFLER ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY12P00003F1 | [1] | MUFFLER | KOBASSY |
| 1. | YX12P00006P3 | [1] | MUFFLER | KOB |
| 2. | YY12P01001P1 | [1] | BRACKET | KOB |
| 3. | HR91C08000GK | [2] | CLAMP | KOB |
| 5. | ZN18C08007 | [11] | NUT | KOBM08x1.25mm |
| 6. | ZW16K08000 | [3] | WASHER,8mm ID x 15.5mm OD x 1.6mm Thk | KOBID 08 x OD 15.5 x Th 1.6mm |
| 7. | YX12P01003P1 | [1] | TUBE | KOBEXHAUST |
| 8. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 9. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 10. | YX12P01004P1 | [1] | CLAMP | KOBASSY |
| 11. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 12. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 13. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 14. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 15. | HX11Y07076DX | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 16. | ZC16X01400 | [1] | CLIP | KOBClamp, Hose -- Min 10 x Max 17mm |
| 17. | ZS28C10025 | [2] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm |
| 4. | VI8943690210 | [1] | GASKET | KOB(EXHAUST) |
