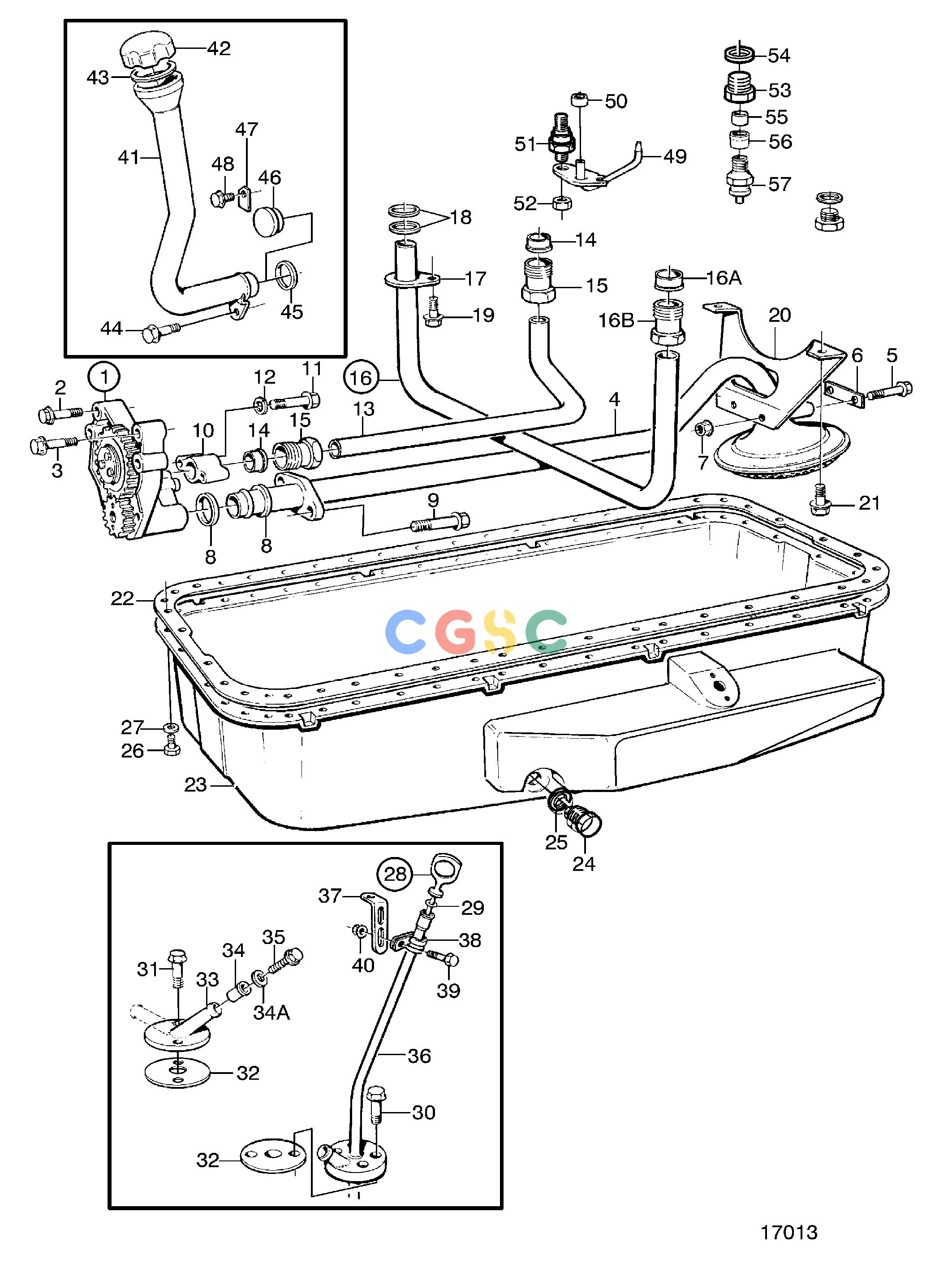

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ALubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1008 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864760
|
[1] |
Oil pump
|
|
| 1. |
|
|
|
|
| 2. |
471513
|
[4] |
Flange nut
|
|
| 3. |
471734
|
[2] |
Flange screw
|
|
| 4. |
864538
|
[1] |
Suction pipe
|
|
| 5. |
965218
|
[2] |
Flange screw
|
|
| 6. |
421750
|
[1] |
Square washer
|
|
| 7. |
945408
|
[1] |
Flange nut
|
|
| 8. |
470383
|
[2] |
Sealing ring
|
|
| 9. |
965184
|
[2] |
Flange screw
|
For 864760
|
| 10. |
465846
|
[1] |
Spacer
|
|
| 11. |
955310
|
[2] |
Hexagon screw
|
For 864760
|
| 12. |
941907
|
[2] |
Spring washer
|
|
| 13. |
477948
|
[1] |
Oil pressure pipe, incl 1 nut and ferrule
|
|
| 14. |
956972
|
[1] |
Ferrule
|
For 477948
|
| 15. |
471588
|
[1] |
Oil feed pipe
|
For 477948
|
| 16. |
420996
|
[1] |
Oil pressure pipe, piston cooling
|
|
| 16A. |
980786
|
[1] |
Ferrule
|
|
| 16B. |
471588
|
[1] |
Oil feed pipe
|
|
| 17. |
471746
|
[2] |
Clamp
|
|
| 18. |
471956
|
[1] |
Gasket
|
|
| 19. |
946440
|
[1] |
Flange screw
|
|
| 20. |
847698
|
[1] |
Bracket
|
|
| 21. |
946440
|
[2] |
Flange screw
|
|
| 22. |
865342
|
[1] |
Gasket
|
|
| 23. |
3827987
|
[1] |
Crankcase
|
Later version of the oil sump has no hole for oil draining., (847809)
|
| 24. |
960634
|
[1] |
Plug
|
Later version of the oil sump has no hole for oil draining.
|
| 25. |
18677
|
[1] |
Gasket
|
Later version of the oil sump has no hole for oil draining.
|
| 26. |
940142
|
[36] |
Hexagon screw
|
|
| 27. |
941907
|
[36] |
Spring washer
|
|
| 28. |
848058
|
[2] |
Oil dipstick
|
1 pc is used on WJ., Std
|
| 28. |
863166
|
[2] |
Oil dipstick
|
For engine inclination over 5°.
|
| 29. |
949187
|
[2] |
O-ring
|
1 pc is used on WJ.
|
| 30. |
947542
|
[2] |
Flange screw
|
L=25mm
|
| 31. |
946544
|
[2] |
Flange screw
|
L=16mm
|
| 32. |
865385
|
[2] |
Gasket
|
|
| 33. |
864707
|
[1] |
Flange
|
|
| 34. |
843108
|
[1] |
Bushing
|
|
| 34A. |
940090
|
[1] |
Washer
|
|
| 35. |
965200
|
[1] |
Flange screw
|
|
| 36. |
864710
|
[2] |
Tube
|
1 pc is used on WJ.
|
| 37. |
965558
|
[2] |
Bracket
|
1 pc is used on WJ.
|
| 38. |
952627
|
[2] |
Clamp
|
1 pc is used on WJ.
|
| 39. |
946544
|
[2] |
Flange screw
|
1 pc is used on WJ.
|
| 40. |
945407
|
[2] |
Flange nut
|
1 pc is used on WJ.
|
| 41. |
848581
|
[1] |
Oil filler pipe
|
Oil filler pipe 848581, cap 421753 and gasket 940096 are not standard equipment from SNXXXXXXXXXX/66
|
| 42. |
421753
|
[1] |
Oil filler cap
|
Oil filler pipe 848581, cap 421753 and gasket 940096 are not standard equipment from SNXXXXXXXXXX/66
|
| 43. |
940096
|
[1] |
Gasket
|
Oil filler pipe 848581, cap 421753 and gasket 940096 are not standard equipment from SNXXXXXXXXXX/66
|
| 44. |
946173
|
[1] |
Flange screw
|
|
| 45. |
421629
|
[1] |
Rubber moulding
|
|
| 46. |
848319
|
[1] |
Plug
|
Alt
|
| 47. |
848318
|
[1] |
Anchorage
|
Alt
|
| 48. |
946440
|
[1] |
Flange screw
|
Alt, L=16mm
|
| 49. |
420628
|
[6] |
Piston cooling jet, piston cooling
|
|
| 50. |
466874
|
[6] |
Sealing ring
|
|
| 51. |
471596
|
[6] |
Stud
|
|
| 52. |
948570
|
[6] |
Lock nut
|
|
| 53. |
966146
|
[1] |
Plug
|
SN-XXXXXXXXXX/41796
|
| 54. |
947629
|
[1] |
Gasket
|
SN-XXXXXXXXXX/41796
|
| 55. |
864531
|
[1] |
Tube
|
|
| 56. |
956972
|
[1] |
Ferrule
|
|
| 57. |
864533
|
[1] |
Reduction valve, piston cooling
|
|
