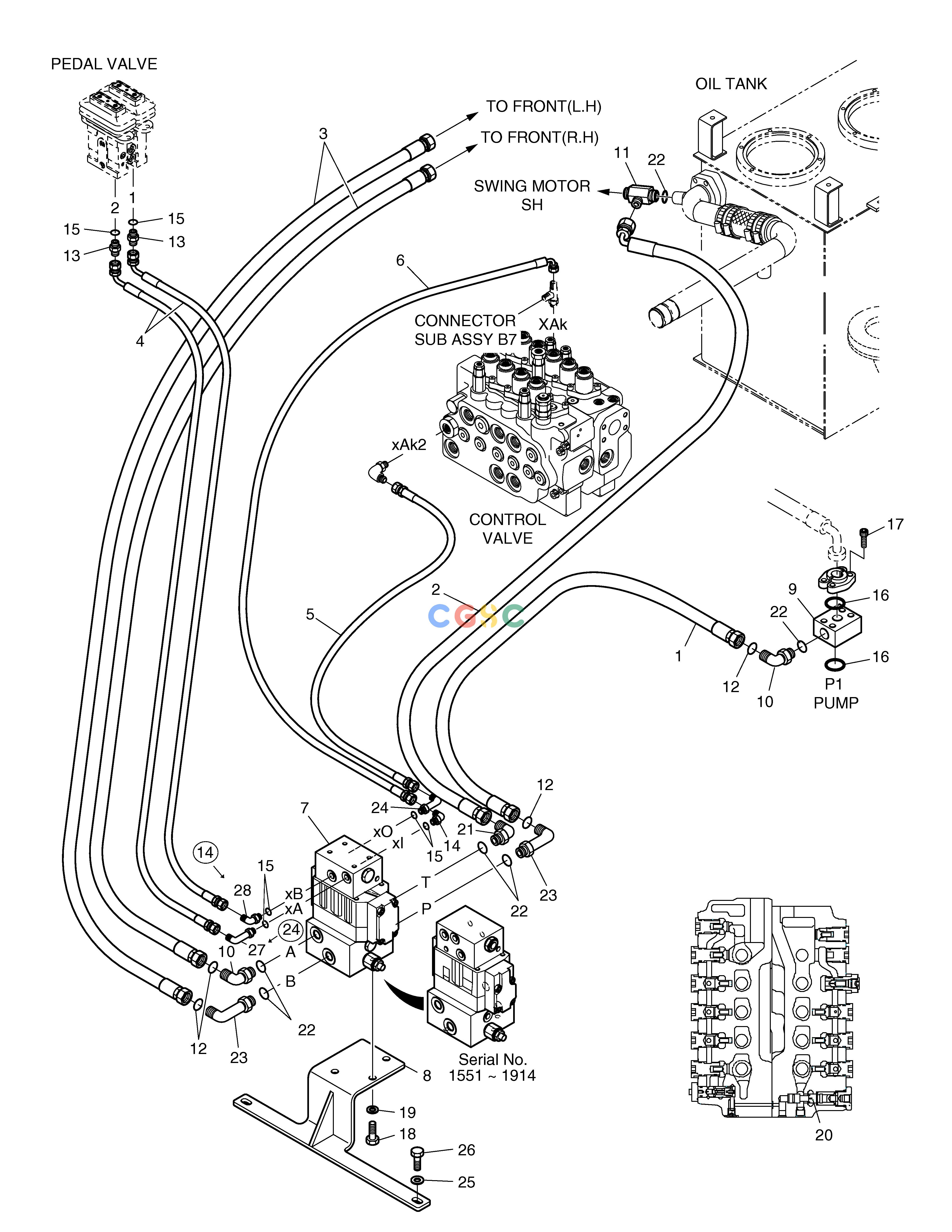

斗山零件查询MAIN PIPING-ROTATION&TILTING SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
550 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00842
|
[-] |
MAIN PIPING
|
|
| 1. |
DS2011302
|
[1] |
HOSE ORS1/2-3100L
|
|
| 10. |
2181-2815D3
|
[2] |
ELBOW
|
|
| 11. |
2181-1951D5
|
[1] |
TEE
|
|
| 12. |
S8030081
|
[4] |
O-RING
|
|
| 13. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 13. |
2181-1126D89
|
[2] |
ADAPTER PFO1/4-PF3/8
|
|
| 14. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 14. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 15. |
S8000111
|
[6] |
O-RING
|
|
| 16. |
2180-1026D19
|
[2] |
O-RING
|
|
| 17. |
S2216466
|
[4] |
BOLT
|
|
| 18. |
S0515253
|
[3] |
. BOLT
|
|
| 18. |
S0515053
|
[3] |
BOLT M12X1.75X25
|
|
| 19. |
S5102703
|
[3] |
WASHER
|
|
| 2. |
2184-1250D94
|
[1] |
HOSE PF 1/2-2700L
|
|
| 20. |
2424-1140
|
[1] |
SPOOL;BC
|
|
| 21. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 22. |
S8000181
|
[6] |
O-RING
|
|
| 23. |
2181-2815D11
|
[2] |
ELBOW
|
|
| 24. |
2181-1702D56
|
[2] |
ELBOW
|
|
| 24. |
2181-1702D56
|
[1] |
ELBOW
|
|
| 25. |
2114-1058D30
|
[2] |
. WASHER
|
|
| 26. |
S0515353
|
[2] |
BOLT M12X1.75X35
|
|
| 27. |
DS2281093
|
[1] |
ELBOW;LONG
|
|
| 28. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 3. |
DS2011303
|
[2] |
HOSE ORS1/2-4300L
|
|
| 4. |
DS2055651
|
[2] |
HOSE PF1/4-3650L
|
|
| 4. |
2184-1046D22
|
[2] |
HOSE PF3/8-3700L
|
|
| 5. |
2184-1045D127
|
[1] |
HOSE PF1/4-2600L
|
|
| 6. |
2184-1046D219
|
[1] |
HOSE PF1/4-2100L
|
|
| 7. |
420-00322
|
[1] |
OPTION VALVE
|
420-00322B
|
| 7. |
420-00322B
|
[1] |
OPTION VALVE
|
420-00322C
|
| 7. |
420-00322C
|
[1] |
OPTION VALVE
|
|
| 8. |
195-01817A
|
[1] |
BRACKET
|
|
| 9. |
423-00132
|
[1] |
BLOCK
|
|
