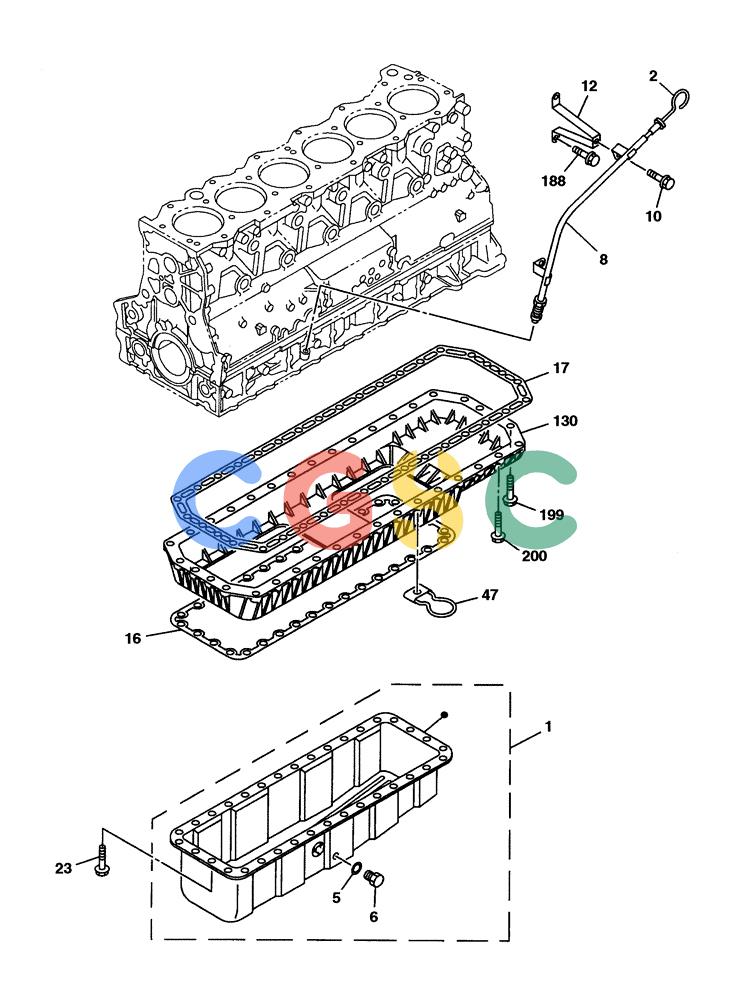

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (02-031-00[01]) - OIL PAN New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
795 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 437895A1 | [1] | PAN, ENGINE OIL | ISU |
| 2. | 288600A1 | [1] | DIPSTICK | ISU |
| 5. | 289081A1 | [1] | GASKET | ISU Superseded by part number: 87380148 |
| 6. | 289820A1 | [1] | PLUG | ISU |
| 8. | 288601A1 | [1] | TUBE | ISU |
| 10. | 87405522 | [2] | BOLT | ISU Superseded by part number: 289023A1 |
| 12. | 288602A1 | [1] | SUPPORT | ISU |
| 16. | 288603A1 | [1] | OIL PAN GASKET SET | ISU Superseded by part number: 87422293 |
| 17. | 288604A2 | [1] | GASKET | ISU |
| 23. | 288996A1 | [34] | BOLT | ISUM8 x 25; 10,9 Superseded by part number: 71456307 |
| 47. | 288605A1 | [1] | HOSE CLIP | ISU |
| 130. | 288606A2 | [1] | SPACER | ISU Superseded by part number: 84167524 |
| 188. | 289004A1 | [2] | BOLT | ISU Superseded by part number: 76610052 |
| 199. | 426461A1 | [4] | BOLT | ISUM10 x 50 |
| 200. | 289005A1 | [32] | BOLT | ISU |
