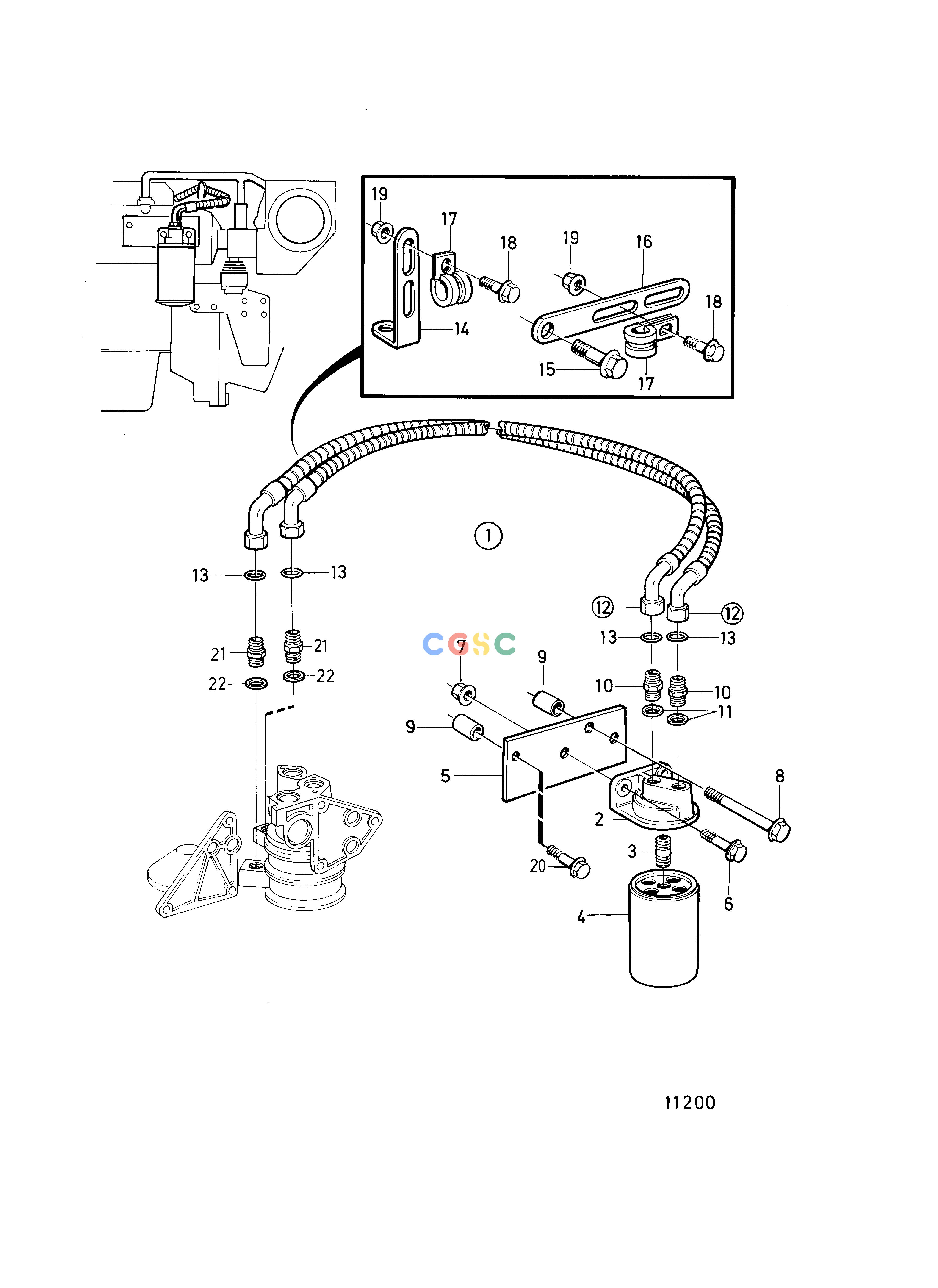

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ALubricating SystemOil Filter, Alternative LocationEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
184 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
848509
|
[1] |
Housing
|
|
| 3. |
466623
|
[1] |
Nipple
|
|
| 4. |
847741
|
[1] |
Oil filter
|
|
| 5. |
865043
|
[1] |
Bracket
|
|
| 6. |
946329
|
[2] |
Flange screw
|
(946329)
|
| 7. |
971095
|
[2] |
Flange nut
|
|
| 8. |
970964
|
[1] |
Hexagon screw
|
M10x140mm
|
| 9. |
843028
|
[2] |
Spacer sleeve
|
|
| 10. |
947554
|
[2] |
Nipple
|
M26x1,5
|
| 11. |
948885
|
[2] |
Gasket
|
|
| 12. |
863613
|
[2] |
Oil hose
|
|
| 13. |
4880663
|
[4] |
O-ring
|
|
| 14. |
965564
|
[1] |
Bracket
|
|
| 15. |
946671
|
[1] |
Flange screw
|
|
| 16. |
965542
|
[1] |
Bracket
|
|
| 17. |
952636
|
[4] |
Clamp
|
|
| 18. |
946544
|
[4] |
Flange screw
|
|
| 19. |
945407
|
[4] |
Flange nut
|
|
| 20. |
948217
|
[1] |
Flange screw
|
M8x45mm
|
| 21. |
947554
|
[2] |
Nipple
|
M26x1,5
|
| 22. |
948885
|
[2] |
Gasket
|
|
