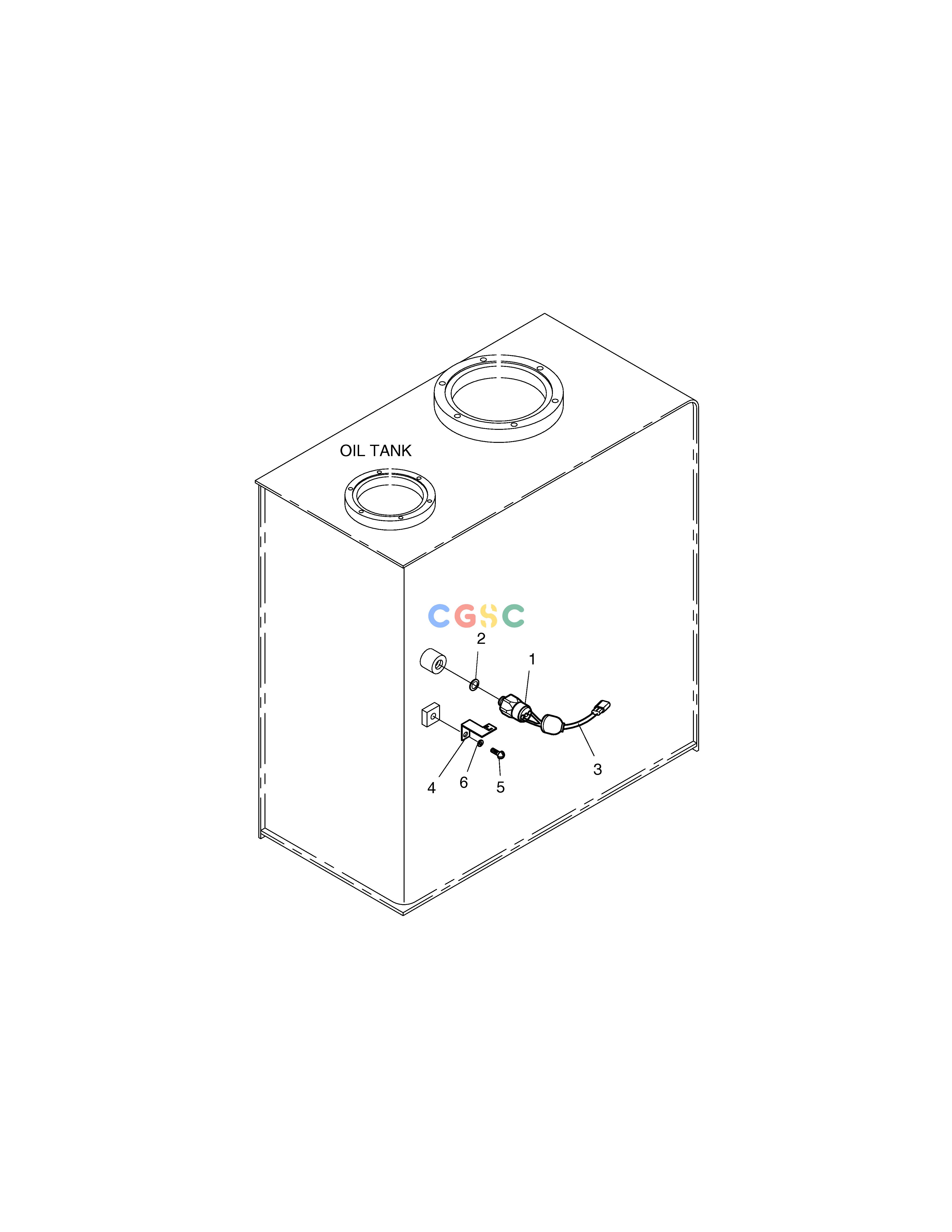

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 500-00086 | [-] | RETURN FILTER PRESS. S/W | |
| 1. | 2549-1135D7 | [1] | SWITCH;PRESSURE | |
| 2. | S8180221 | [1] | RING;SEAL | |
| 3. | 2530-1400 | [1] | HARNESS;PRESS SWITCH | |
| 4. | 2195-3500 | [1] | BRACKET | |
| 5. | S3450943 | [1] | SCREW | |
| 6. | S5102303 | [1] | . WASHER |
广数供应链运营团队, 15 02月, 2025，浏览： 577 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 500-00086 | [-] | RETURN FILTER PRESS. S/W | |
| 1. | 2549-1135D7 | [1] | SWITCH;PRESSURE | |
| 2. | S8180221 | [1] | RING;SEAL | |
| 3. | 2530-1400 | [1] | HARNESS;PRESS SWITCH | |
| 4. | 2195-3500 | [1] | BRACKET | |
| 5. | S3450943 | [1] | SCREW | |
| 6. | S5102303 | [1] | . WASHER |
