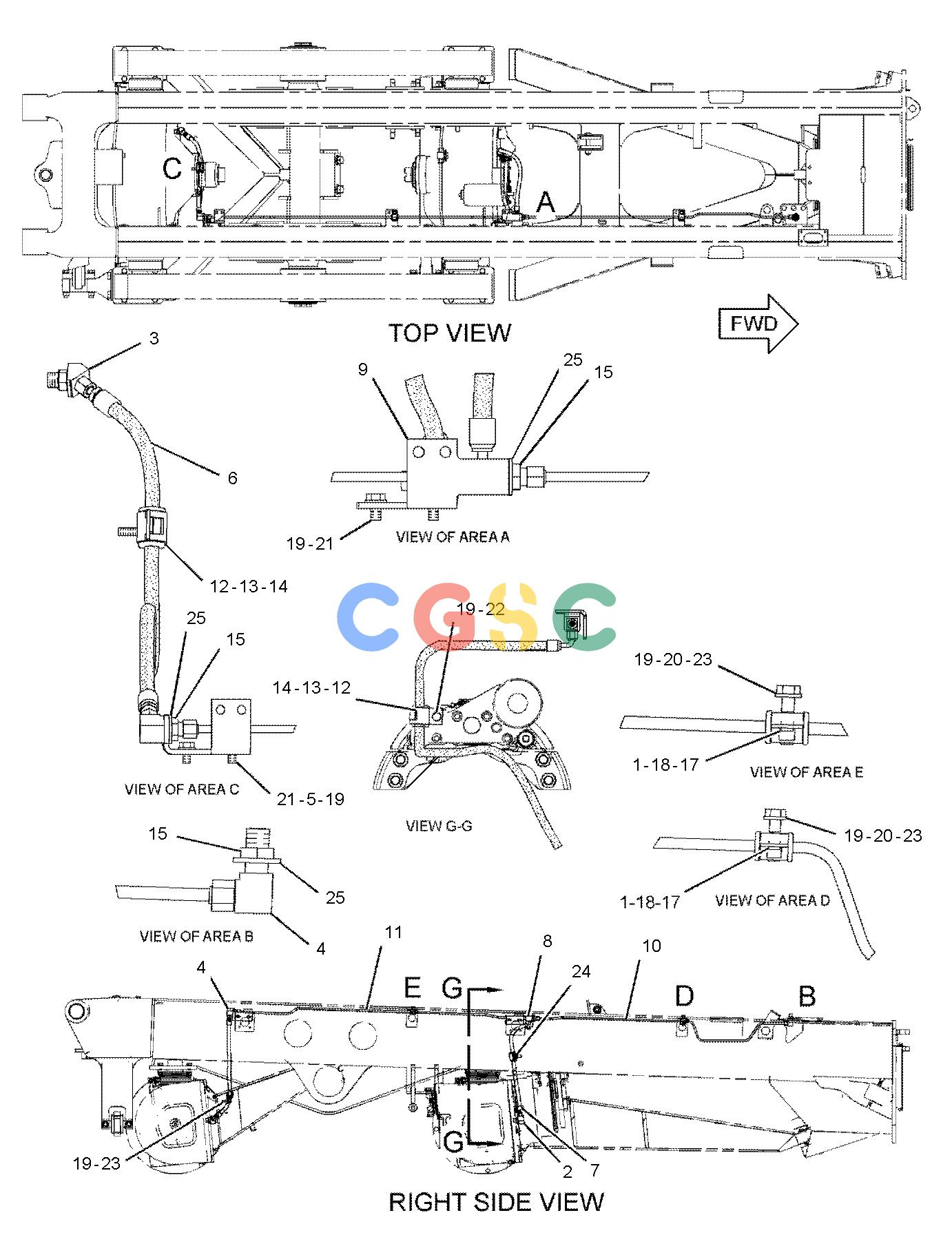

卡特零件查询（730） 149-0012: LINES GP-DIFFERENTIAL LOCK
广数供应链运营团队, 15 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 148-8374 | [1] | ELBOW AS | |
| | 6V-8723 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 2. | 148-8378 | [1] | ELBOW AS | |
| | 6V-8724 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 3. | 148-8435 | [1] | TEE AS | |
| | 6V-8724 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| 4. | 152-2698Y | [1] | VALVE & MTG GP-SOLENOID(DIFFERENTIAL LOCK) | |
| 5. | 178-3305I | [1] | HOSE AS | |
| 6. | 178-3306I | [1] | HOSE AS | |
| 7. | 178-3308I | [1] | HOSE AS | |
| 8. | 180-7315I | [1] | HOSE AS | |
| 9. | 188-9225 | [1] | TUBE AS | |
| 10. | 148-8368 | [1] | ELBOW AS | |
| | 6V-8627 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 11. | 149-5452 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 12. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 13. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 14. | 8T-6869M | [2] | BOLT(M8X1.25X60-MM) | |
| 15. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
