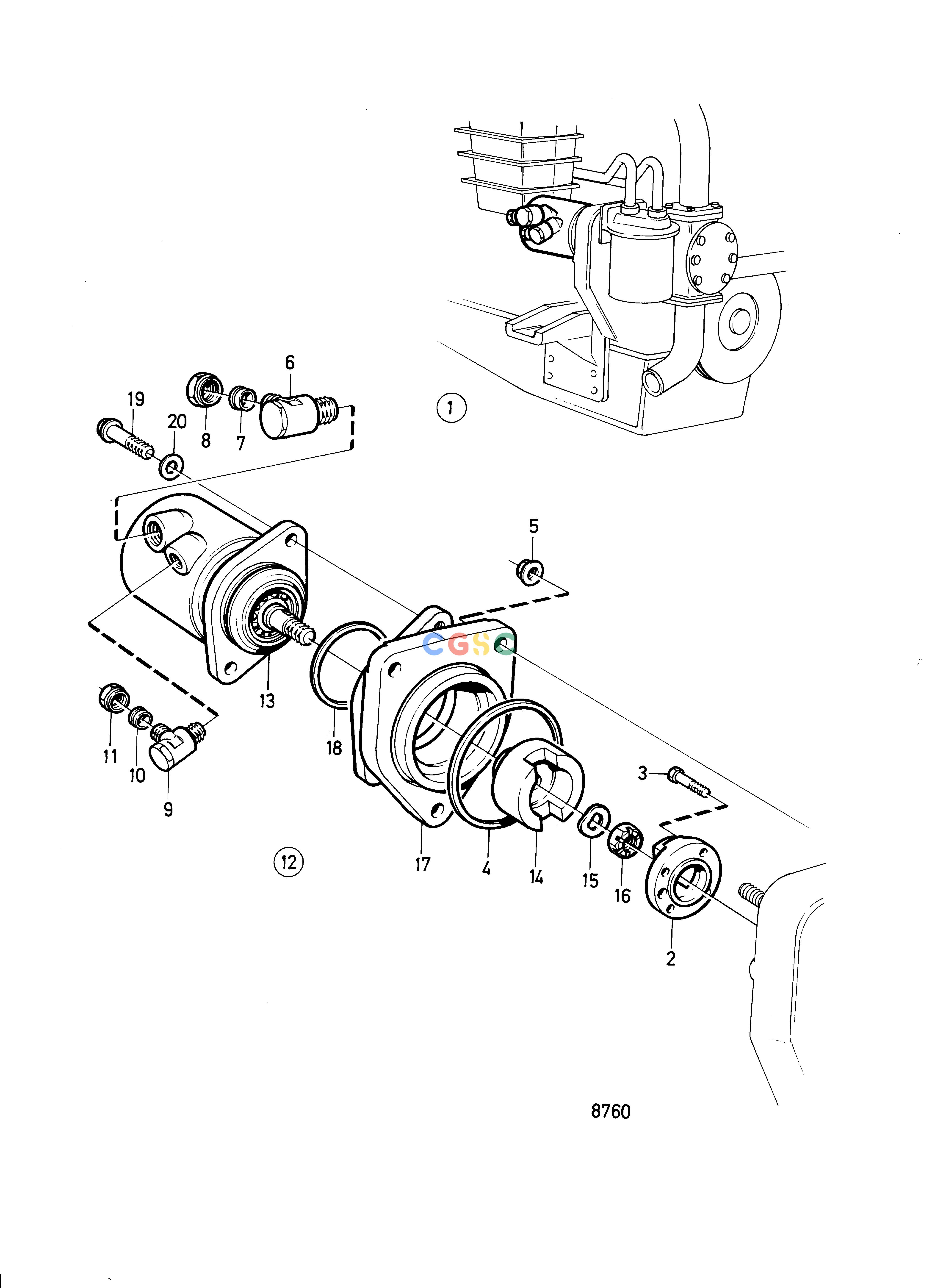

沃尔沃零件查询TAMD72P-A; TAMD72WJ-ASteering SystemServo Pump HCEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
819 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
821071
|
[1] |
Companion flange
|
|
| 3. |
955513
|
[4] |
Hexagon screw
|
|
| 4. |
975610
|
[1] |
O-ring
|
(413619)
|
| 5. |
971097
|
[3] |
Flange nut
|
(965484)
|
| 6. |
948350
|
[1] |
Banjo fitting
|
|
| 7. |
956974
|
[1] |
Ferrule
|
|
| 8. |
956988
|
[1] |
Fitting nut
|
M30x2
|
| 9. |
948348
|
[1] |
Banjo fitting
|
|
| 10. |
1677898
|
[1] |
Ferrule
|
(956970)
|
| 11. |
956984
|
[1] |
Fitting nut
|
|
| 12. |
|
|
|
|
| 13. |
364642
|
[1] |
Oil pump
|
|
| 14. |
848724
|
[1] |
Dog clutch
|
|
| 15. |
941914
|
[1] |
Spring washer
|
|
| 16. |
1589593
|
[1] |
Nut retainer
|
|
| 17. |
848725
|
[1] |
Spacer
|
|
| 18. |
925094
|
[1] |
O-ring
|
|
| 19. |
946472
|
[1] |
Flange screw
|
|
| 20. |
941908
|
[1] |
Spring washer
|
|
