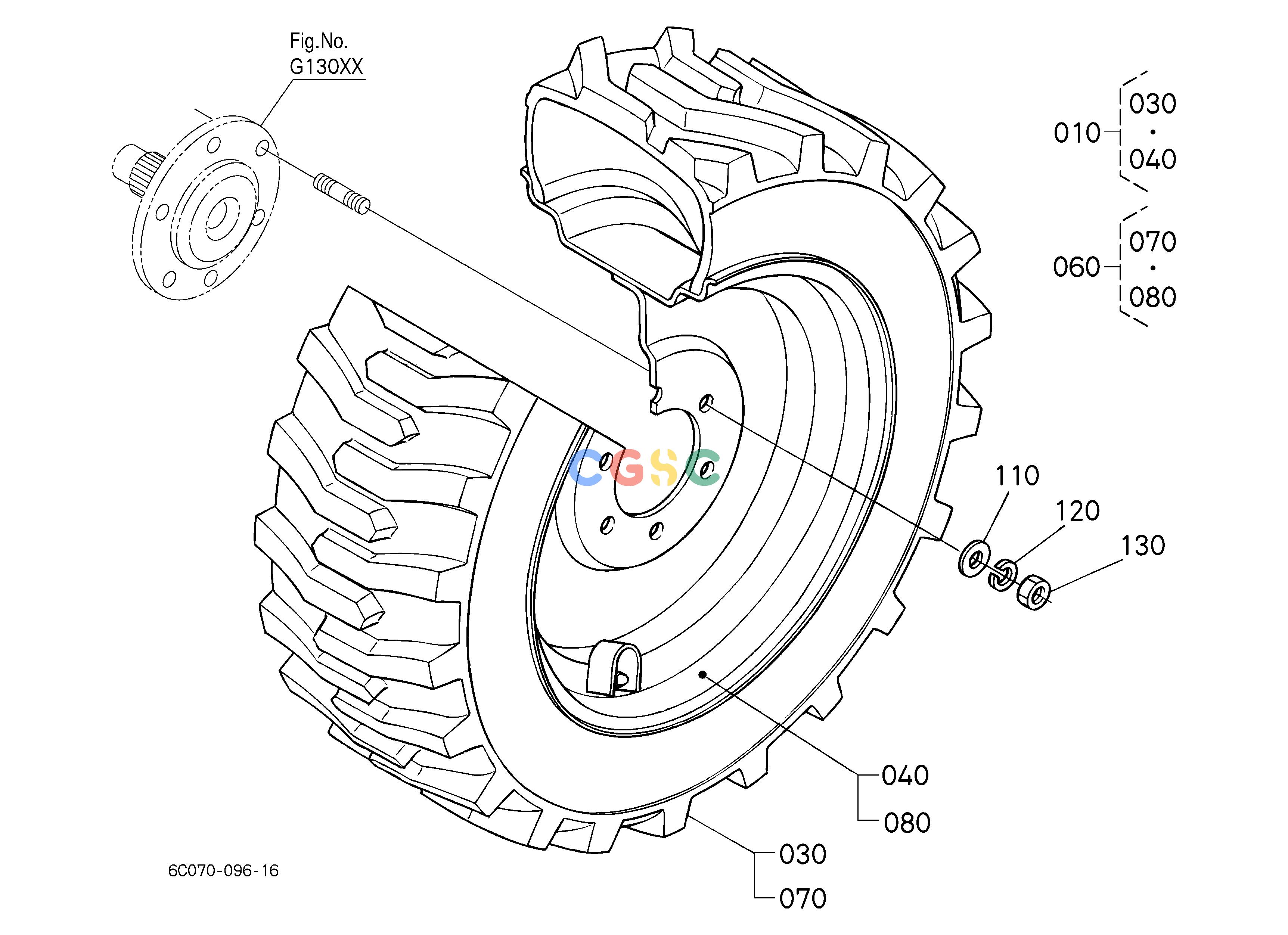

久保田零件查询R10102 FRONT WHEEL(23 8.50-14R4) FRONT TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
525 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272150510
|
[1] |
ASSY TIRE LH
|
0.0000(lbs); 0.000
|
| 030. |
3272150530
|
[1] |
TIRE(23X8.50-14 R4)
|
24.2000(lbs); 11.000
|
| 040. |
3272150540
|
[1] |
WHEEL(14X7KB)
|
24.2000(lbs); 11.000
|
| 060. |
3272150520
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 070. |
3272150530
|
[1] |
TIRE(23X8.50-14 R4)
|
24.2000(lbs); 11.000
|
| 080. |
3272150540
|
[1] |
WHEEL(14X7KB)
|
24.2000(lbs); 11.000
|
| 110. |
0401350120
|
[12] |
WASHER,PLAIN
|
0.0154(lbs); 0.007
|
| 120. |
0451250120
|
[12] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 130. |
0217650120
|
[12] |
HEX.NUT
|
0.0220(lbs); 0.010
|
