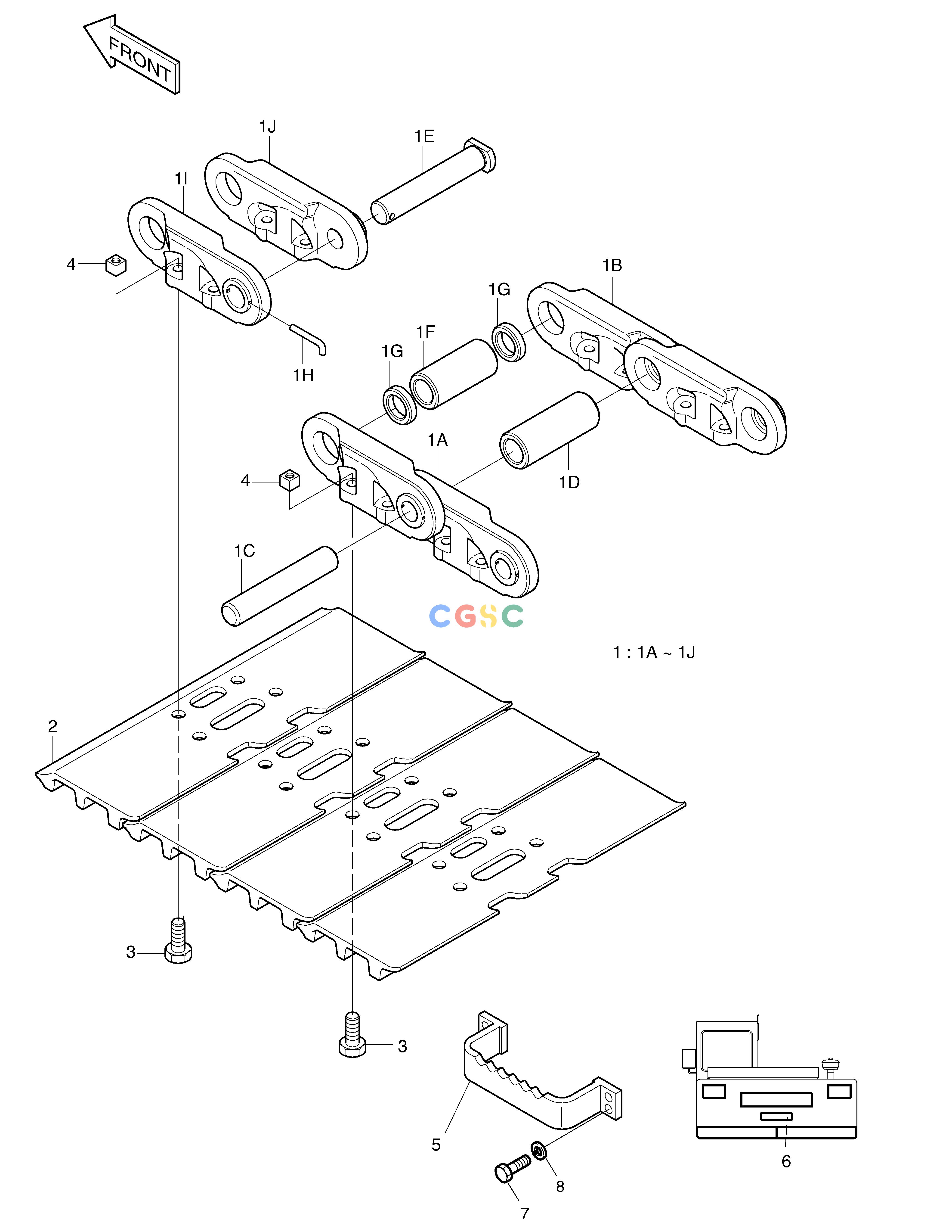

斗山零件查询TRACK SHOE-850G SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2273-1042A
|
[2] |
TRACK SHOE ASS'Y;850G
|
|
| 1. |
2272-1074
|
[1] |
TRACK LINK ASS'Y
|
|
| 1A. |
2272-9009
|
[50] |
LINK(L.H)
|
|
| 1B. |
2272-9008
|
[50] |
LINK(R.H)
|
|
| 1C. |
2123-1320
|
[50] |
PIN
|
|
| 1D. |
2110-1104
|
[50] |
BUSHING
|
|
| 1E. |
2123-1628A
|
[1] |
PIN;MASTER
|
|
| 1F. |
2110-1105
|
[1] |
BUSHING;MASTER
|
|
| 1G. |
2114-1552
|
[2] |
SPACER
|
|
| 1H. |
2123-1629
|
[1] |
PIN
|
|
| 1I. |
2272-1057
|
[1] |
LINK;MASTER(L.H)
|
|
| 1J. |
2272-1056
|
[1] |
LINK;MASTER(R.H)
|
|
| 2. |
2273-9017A
|
[51] |
SHOE;850G
|
|
| 3. |
2120-1212A
|
[204] |
BOLT
|
|
| 4. |
2121-1203
|
[204] |
NUT
|
|
| 5. |
2625-1155D3
|
[4] |
STEP
|
|
| 5. |
2625-1220D10
|
[4] |
BRACKET
|
|
| 6. |
2190-1330D31
|
[2] |
PLATE;NAME
|
|
| 7. |
S0558253
|
[16] |
BOLT M10X1.5X35
|
|
| 8. |
S5102603
|
[16] |
. WASHER
|
|
