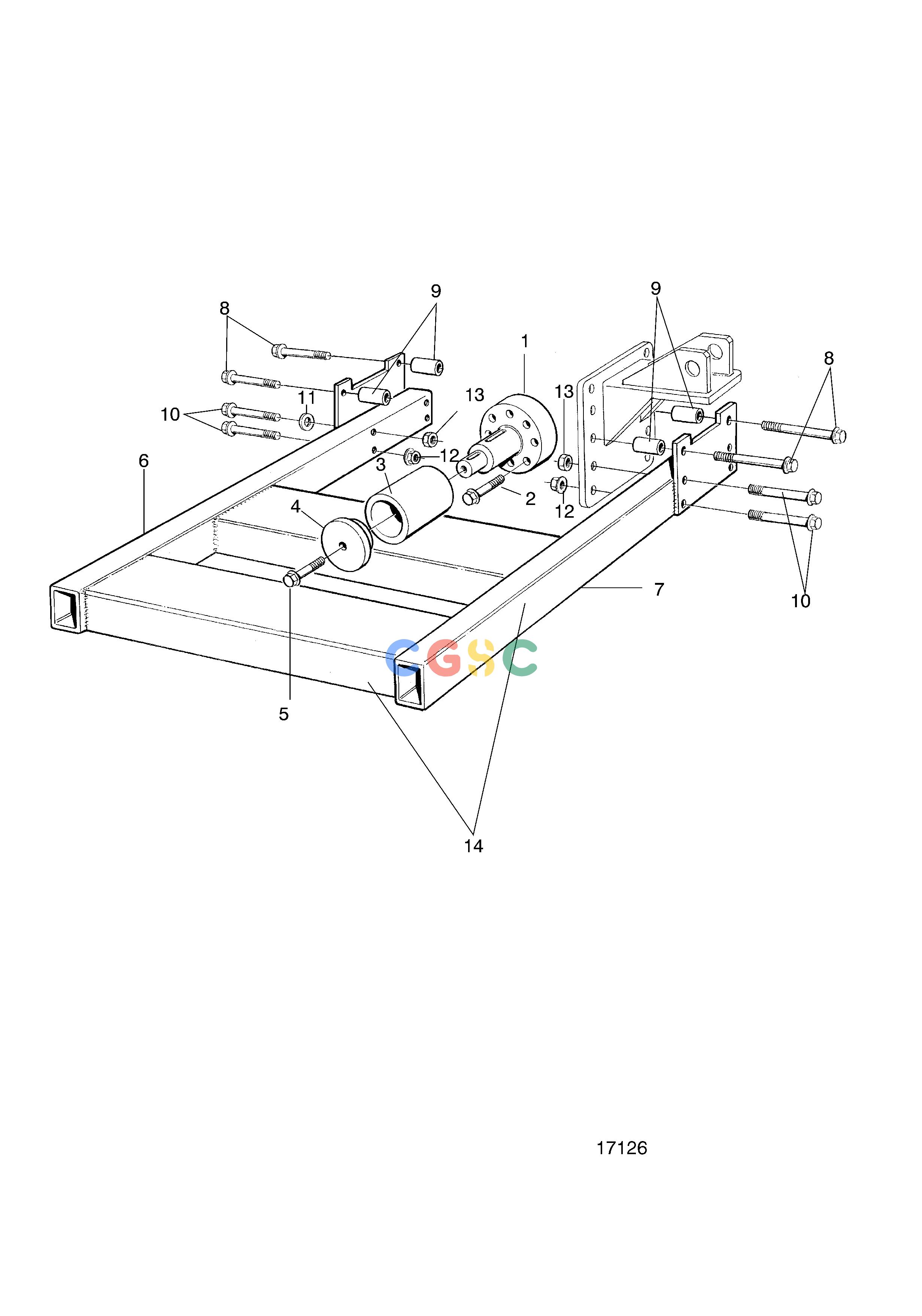

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-AClutch, Elastic CouplingPower Take off and Universal BracketEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3826718
|
[1] |
Axle shaft
|
|
| 2. |
471529
|
[8] |
Flange screw
|
|
| 3. |
3826711
|
[1] |
Sleeve
|
|
| 4. |
3826710
|
[1] |
Washer
|
|
| 5. |
965191
|
[1] |
Flange screw
|
|
| 6. |
3826095
|
[1] |
Bracket
|
|
| 7. |
3826146
|
[1] |
Bracket
|
|
| 8. |
965197
|
[4] |
Flange screw
|
|
| 9. |
824334
|
[4] |
Spacer sleeve
|
|
| 10. |
965188
|
[8] |
Flange screw
|
|
| 11. |
960143
|
[2] |
Washer
|
|
| 12. |
971098
|
[4] |
Flange lock nut
|
|
| 13. |
971080
|
[4] |
Hexagon nut
|
|
