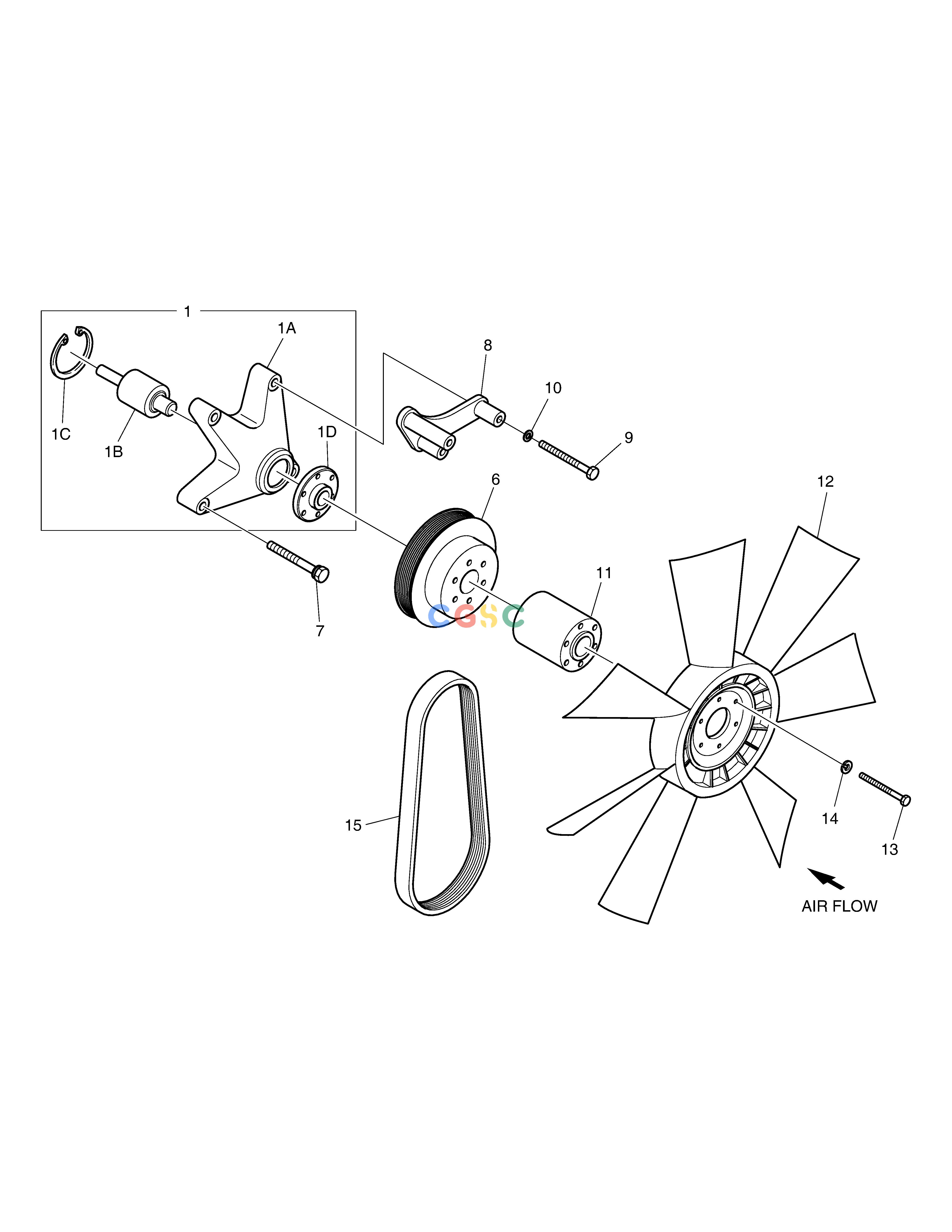

斗山零件查询COOLING FAN SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
186 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06650-6016
|
[1] |
FAN DRIVE ASS'Y
|
210101-00083
|
| 1. |
210101-00083
|
[1] |
|
|
| 10. |
06.16731-2108
|
[2] |
WASHER;SPRING
|
|
| 11. |
65.06611-0125
|
[1] |
FLANGE;FAN
|
65.06611-0125A
|
| 11. |
65.06611-0125A
|
[1] |
FLANGE;FAN
|
430215-00024
|
| 11. |
430215-00024
|
[1] |
|
|
| 12. |
65.06601-5067
|
[1] |
FAN;COOLING
|
|
| 13. |
06.01013-9142
|
[6] |
BOLT;HEX. M8X135
|
|
| 14. |
06.16731-2107
|
[6] |
WASHER
|
|
| 15. |
65.96801-0130
|
[1] |
BELT;POLY
|
65.96801-0130A
|
| 15. |
65.96801-0130A
|
[1] |
V-BELT
|
65.96801-0226
|
| 15. |
65.96801-0226
|
[1] |
|
|
| 1A. |
65.06651-0005
|
[1] |
HOUSING;FAN DRIVE
|
|
| 1B. |
65.93410-0024
|
[1] |
BEARING;UNIT
|
|
| 1C. |
06.29020-0132
|
[1] |
. SNAP RING
|
|
| 1D. |
65.06504-0013
|
[1] |
HUB;FAN DRIVE
|
|
| 6. |
65.06606-0057
|
[1] |
PULLEY;FAN
|
|
| 7. |
06.01943-3332
|
[2] |
BOLT ASS'Y M12X1.5X110
|
|
| 8. |
65.19103-5035
|
[1] |
BRACKET
|
|
| 9. |
06.01013-9226
|
[2] |
BOLT;HEX. M10X1.5X110
|
|
