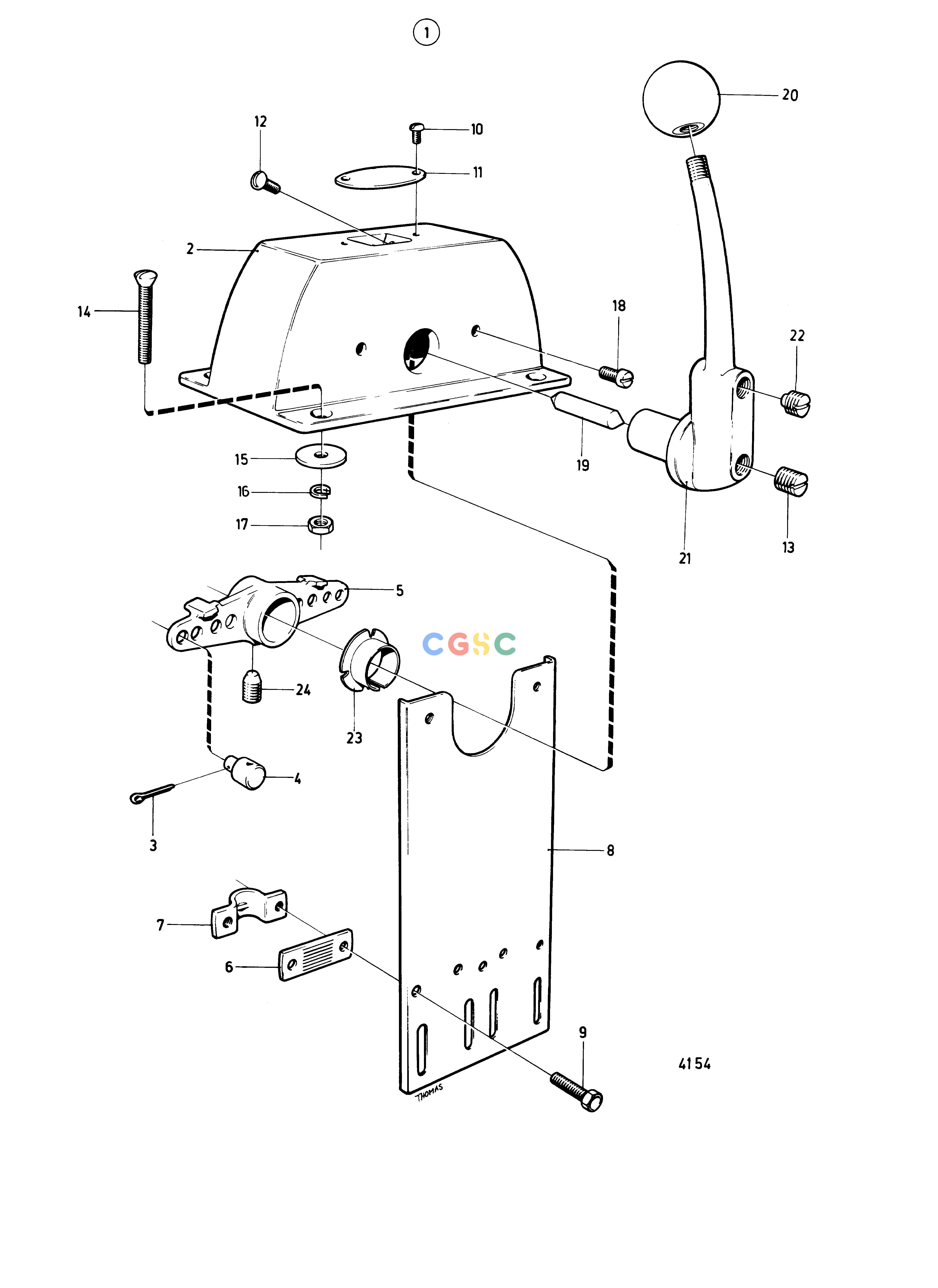

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-AControlsControl for top Installation, Morse Model SEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
345 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
825627
|
[1] |
Control system
|
|
| 2. |
|
|
|
|
| 3. |
17276
|
[1] |
Split pin
|
|
| 4. |
3852329
|
[1] |
Cube
|
(804312)
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
192245
|
[2] |
Screw
|
|
| 10. |
950001
|
[2] |
Cross recessed screw
|
|
| 11. |
|
|
|
|
| 12. |
192010
|
[2] |
Cross recessed screw
|
|
| 13. |
|
|
|
|
| 14. |
940269
|
[4] |
Screw
|
|
| 15. |
960138
|
[4] |
Washer
|
|
| 16. |
941905
|
[4] |
Spring washer
|
|
| 17. |
955844
|
[4] |
Hexagon nut
|
|
| 18. |
940204
|
[2] |
Cross recessed screw
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
827756
|
[1] |
Lock screw
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
