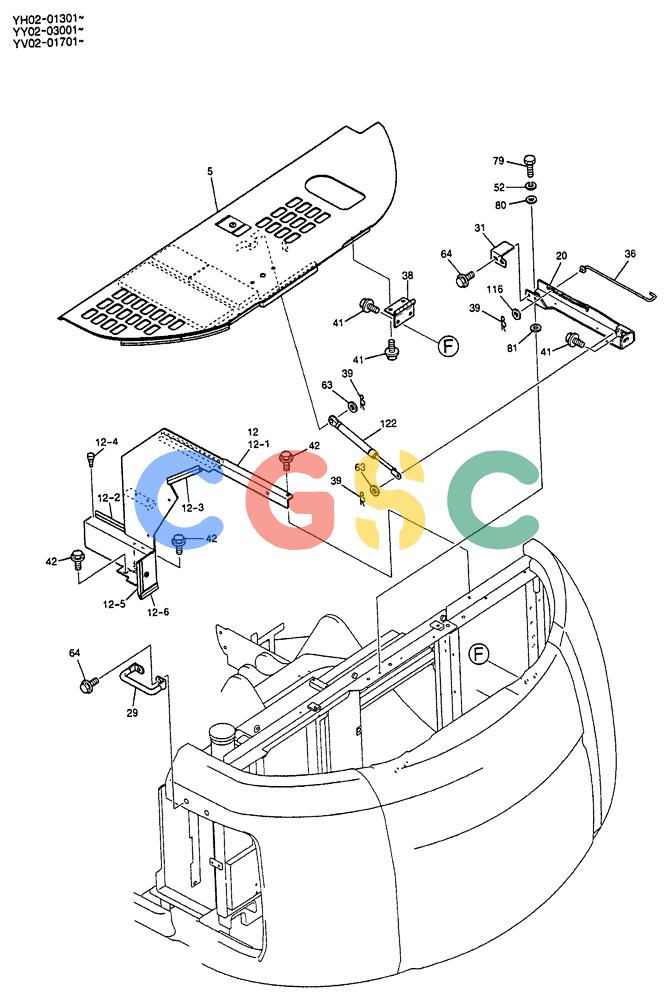

神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-040[03]) - GUARD INSTAL, P/N YY21C00010F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
548 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY21C00010F1 | [1] | GUARD ASSY. | KOB |
| 1. | YY21C01114F1 | [1] | COVER ASSY | KOB |
| 2. | YY21C01042F1 | [1] | PANEL | KOB |
| 2-1. | YY21C01043P1 | [1] | PANEL | KOB |
| 2-1A. | YT21C01340P1 | [2] | HINGE | KOB |
| 2-2. | YT21C01039D6 | [1] | WEATHERSTRIP | KOB730mm Long (28-3/4 in) |
| 2-3. | 2427P1836D19 | [1] | WEATHERSTRIP | KOB385mm Long (15-5/32 in) |
| 2-4. | YT21C01039D7 | [1] | WEATHERSTRIP | KOB330mm Long (13 in) |
| 2-5. | YY21C01059P1 | [2] | GROMMET | KOB |
| 2-6. | YY21C01070P1 | [4] | CLIP | KOB |
| 5. | YY22C00004F5 | [1] | COVER ASSY | KOB |
| 11. | YY21C01147P1 | [1] | COVER | KOB |
| 12. | YY21C01116F1 | [1] | BRACKET | KOB |
| 12-1. | YY21C01140P1 | [1] | BRACKET | KOB |
| 12-2. | YT21C01159D4 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 12-3. | YT21C01164DB | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 12-4. | YT21C01143P1 | [1] | RUBBER SLEEVE | KOB |
| 12-5. | LE21C01070DK | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 12-6. | YT21C01163DG | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 14. | YY21C01141P1 | [1] | BRACKET | KOB |
| 15. | YY21C01121F2 | [1] | BRACKET | KOB |
| 15-2. | YT21C01164D9 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 15-3. | YY21C01242P1 | [1] | BRACKET | KOB Superseded by part number: YY21C01242P2 |
| 15-4. | YT21C01164DB | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 16. | YY21C01239P1 | [1] | BRACKET | KOB |
| 18. | YY21C01133P1 | [1] | GUARD | KOB |
| 19. | YY21C01126P1 | [1] | GUARD | KOB |
| 20. | YY21C01129P3 | [1] | BRACKET | KOB |
| 26. | YY21C01096F1 | [1] | GUARD ASSY. | KOB |
| 26-1. | YY21C01159P1 | [1] | GUARD | KOB |
| 26-2. | YY21C01092P1 | [1] | INDICATOR | KOB |
| 26-3. | YY21C01093P1 | [1] | INDICATOR | KOB |
| 26-4. | YY21C01094P1 | [1] | INDICATOR | KOB |
| 26-5. | PY01P01019DA | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 26-6. | 2427P1836D15 | [1] | INSULATING PANEL | KOB |
| 27. | YY21C01149F1 | [1] | BRACKET | KOB |
| 27-1. | YY21C01148P1 | [1] | BRACKET | KOB |
| 27-2. | YT21C01163DC | [1] | WEATHERSTRIP | KOB |
| 27-3. | YY21C01143P1 | [1] | INDICATOR | KOB |
| 27-4. | YY21C01152D1 | [1] | RUBBER | KOB |
| 27-5. | YY21C01153D1 | [1] | RUBBER | KOB |
| 27-6. | YT21C01164D8 | [1] | WEATHERSTRIP | KOB |
| 27-7. | YY21C01154D1 | [1] | RUBBER | KOB |
| 28. | YY21C01091F1 | [1] | PLATE ASSY. | KOB |
| 28-1. | YY21C01090P1 | [1] | PLATE | KOB |
| 28-2. | YT21C01164DA | [2] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 28-3. | YA21C01036D4 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 28-4. | YT21C01143P1 | [2] | RUBBER SLEEVE | KOB |
| 28-5. | YT21C01183P1 | [1] | BRACKET | KOB |
| 28-6. | YR21C01161P1 | [2] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOBID 09 x OD 22 x Th 2.3mm |
| 28-7. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 28-8. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 29. | YX21C01166P1 | [1] | HANDLE | KOB |
| 31. | YY21C01128P2 | [1] | STRIKER PLATE | KOB |
| 32. | PY06C01040P1 | [1] | STOP | KOB |
| 33. | YX21C01204P1 | [1] | STAY | KOBSTAY |
| 34. | YT21C01323P1 | [1] | STRIKER PLATE | KOB |
| 35. | YY21C01157P1 | [1] | STAY | KOBSTAY |
| 36. | YX21C01130P1 | [1] | STAY | KOBSTAY |
| 37. | YW21C01181P1 | [1] | GAS STRUT | KOB |
| 38. | YX21C01102P1 | [2] | HINGE | KOB |
| 39. | 2419R9D2 | [6] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| 41. | ZM32C12025 | [27] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) |
| 42. | ZM32C12030 | [13] | BOLT | KOBM12x1.75x30mm (Incls. Washer & Lockwasher) |
| 45. | YR21C01159P1 | [4] | BOLT | KOBSEMS-BOLT |
| 46. | YN21C01703P1 | [3] | SCREW | KOB |
| 48. | 2418T10357 | [6] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 50. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 52. | ZW26X12000 | [7] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 53. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 56. | ZN18C12010 | [6] | NUT | KOBM12x1.75mm |
| 57. | YN21C01175D2 | [2] | SHIM | KOB(2.3) |
| 60. | YY21C01077P1 | [2] | CLAMP | KOB |
| 61. | ZS28C10055 | [2] | SCREW,Hex Socket Head, M10 x 55mm | KOBM10x1.50x55mm |
| 62. | YN21C01321P1 | [2] | STOP | KOB Superseded by part number: YN21C03212P1 |
| 63. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 64. | ZM32C10025 | [5] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) |
| 71. | ZN18F10008 | [3] | NUT | KOBM10x1.25mm |
| 72. | HY25X10027G1 | [1] | WASHER,10mm ID x 27mm OD x 3.2mm Thk | KOBID 10 x OD 27 x Th 3.2mm |
| 73. | YY21C01118F1 | [1] | COVER ASSY | KOB |
| 73-1. | YY21C01117P1 | [1] | COVER | KOB |
| 73-2. | YN21C01710D3 | [1] | WEATHERSTRIP | KOB |
| 73-3. | YY21C01168D1 | [1] | WEATHERSEAL STRIP | KOBSTRIP, WEATHER |
| 74. | YT21C01179D1 | [1] | SHIM | KOB(1.2) |
| 79. | ZS18C12030 | [1] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 80. | 2418T21942 | [1] | WASHER | KOBID 13 x OD 45 x Th 4.5mm |
| 81. | YX21C01165D2 | [1] | SPACER | KOB |
| 85. | YY21C01099F1 | [1] | GUARD ASSY. | KOB |
| 85-1. | YY21C01137P1 | [1] | GUARD | KOB |
| 85-2. | YY21C01098P1 | [1] | INDICATOR | KOB |
| 95. | YT21C01321P2 | [1] | RUBBER | KOB |
| 96. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 98. | YT21C01322P2 | [1] | RUBBER | KOB |
| 99. | YT21C01319P1 | [1] | SPACER | KOB |
| 100. | 2419R9D4 | [1] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| 101. | YT21C01179D2 | [1] | SHIM | KOB(3.2) |
| 102. | YN21C01757D2 | [1] | SHIM,2mm Thk | KOB(2.0) |
| 103. | YN21C01757D3 | [1] | SHIM,3.2mm Thk | KOB(3.2) |
| 116. | PB06C01059P1 | [1] | WASHER | KOB |
| 118. | YY21C01078P1 | [1] | STAY | KOBSTAY |
| 119. | ZS18C10055 | [4] | SCREW,Hex, M10 x 55mm | KOBM10x1.50x55mm |
| 120. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 121. | YY21C01268P1 | [1] | BRACKET | KOB Superseded by part number: YY21C01716P1 |
| 122. | YW21C01302P1 | [1] | GAS STRUT | KOBGAS |
