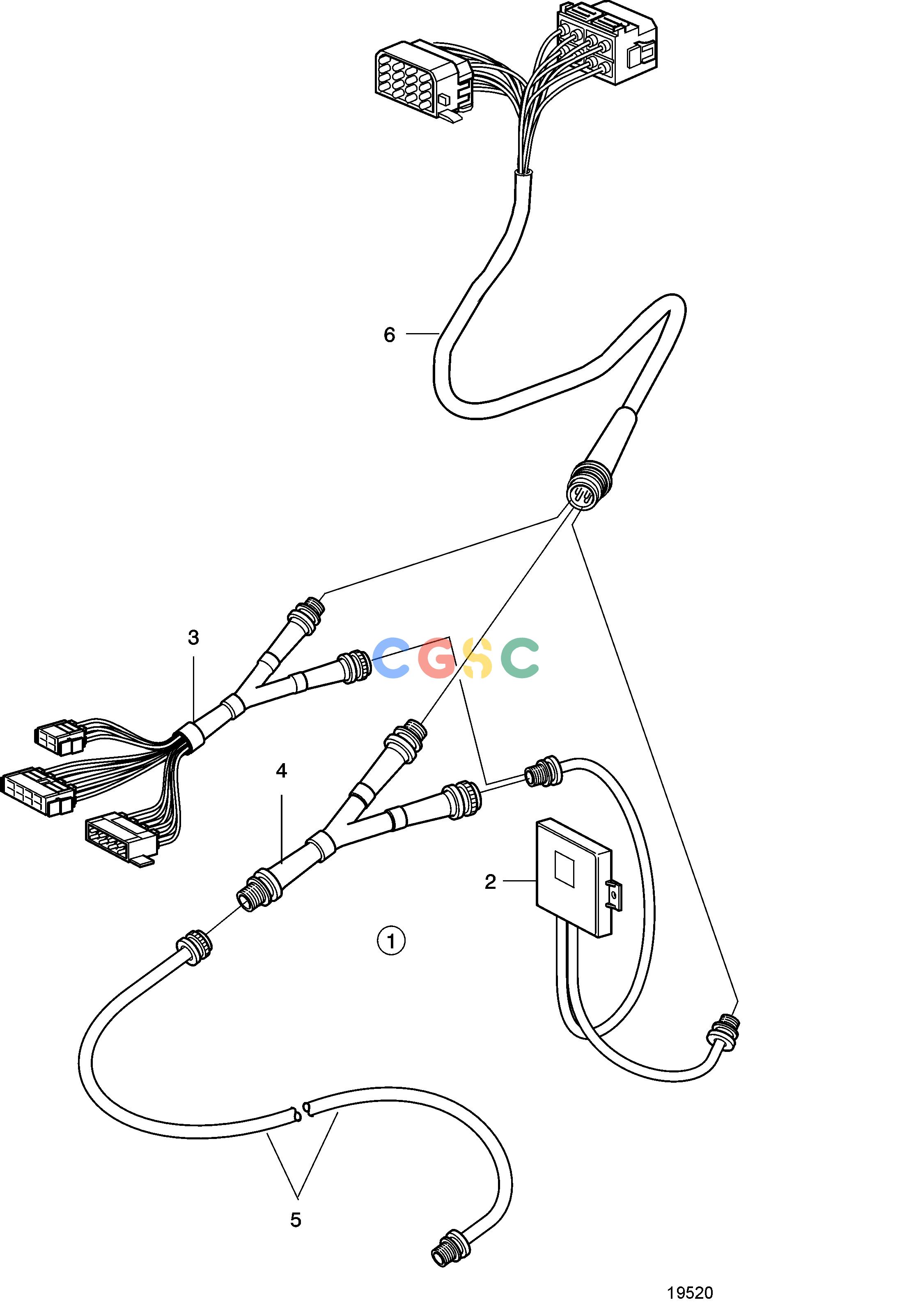

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-AControlsMS UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
484 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
874317
|
[1] |
Spare parts kit
|
Nb! also avaible as 2x8-pole system., (873873)
|
| 2. |
874125
|
[1] |
Electronic unit
|
|
| 3. |
874664
|
[1] |
Adapter
|
|
| 4. |
873637
|
[1] |
Wiring harness
|
|
| 5. |
846648
|
[1] |
Extension cable
|
L=3000mm, 16-pole
|
| 5. |
846649
|
[1] |
Extension cable
|
L=5000mm, 16-pole
|
| 5. |
846650
|
[1] |
Extension cable
|
L=7000mm, 16-pole
|
| 5. |
873838
|
[1] |
Extension cable
|
|
| 5. |
873839
|
[1] |
Extension cable
|
L=11000mm, 16-pole
|
| 6. |
873912
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=3000mm, 2x8-pole
|
| 6. |
873861
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=5000mm, 2x8-pole
|
| 6. |
873905
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=7000mm, 2x8-pole
|
| 6. |
873906
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=9000mm, 2x8-pole
|
| 6. |
873907
|
[1] |
Extension cable
|
Matched connection from 16-pole to 2x8-pole., L=11000mm, 2x8-pole
|
