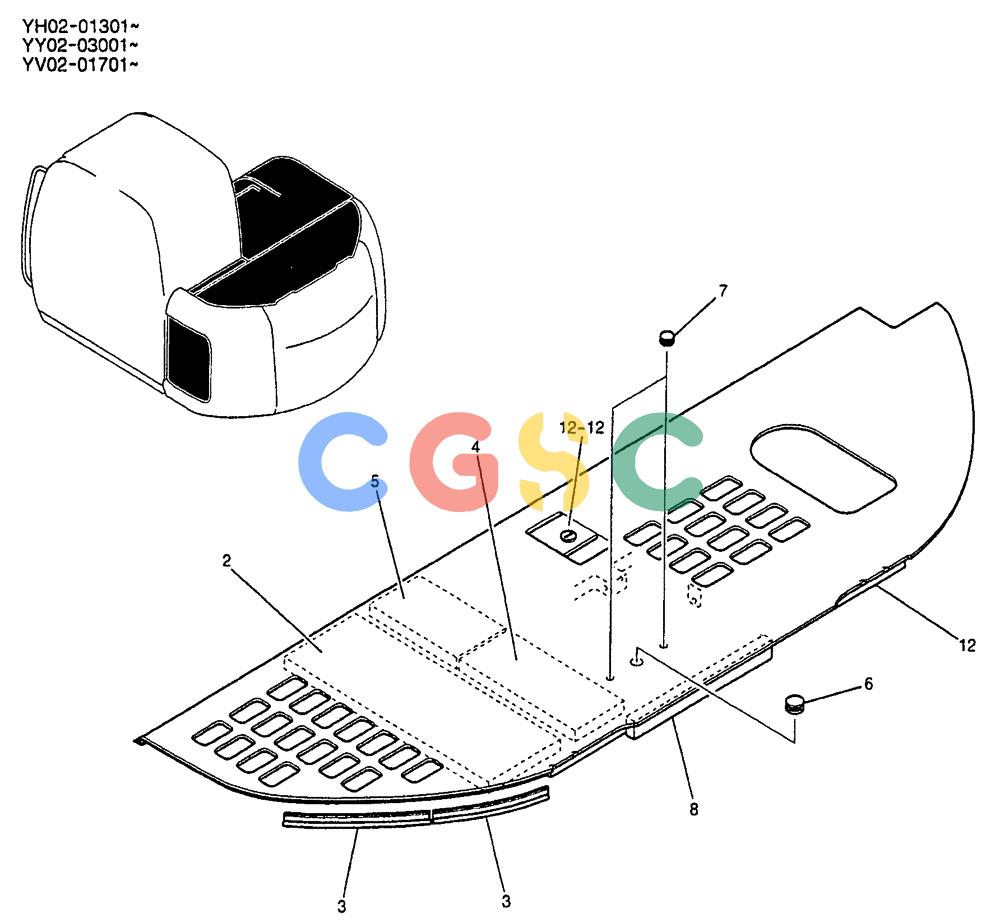

神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-044) - BONNET ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
472 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY22C00004F5 | [1] | COVER ASSY | KOBGUARD INSTAL |
| 2. | YY22C01006P1 | [1] | INDICATOR | KOB |
| 3. | YT21C01163DD | [2] | WEATHERSEAL STRIP | KOBSTRIP. WEATHER |
| 4. | YY22C01007P1 | [1] | INDICATOR | KOB |
| 5. | YY22C01008P1 | [1] | INDICATOR | KOB |
| 6. | 2420R603D4 | [1] | RUBBER | KOBGROMMET |
| 7. | 2420Z1386 | [2] | GROMMET | KOB |
| 8. | YX22C01011D1 | [1] | RUBBER | KOB |
| 12. | YY22C01025P1 | [1] | COVER | KOBASSY Superseded by part number: YY22C01025P2 |
| 12-12. | 2427R703F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
