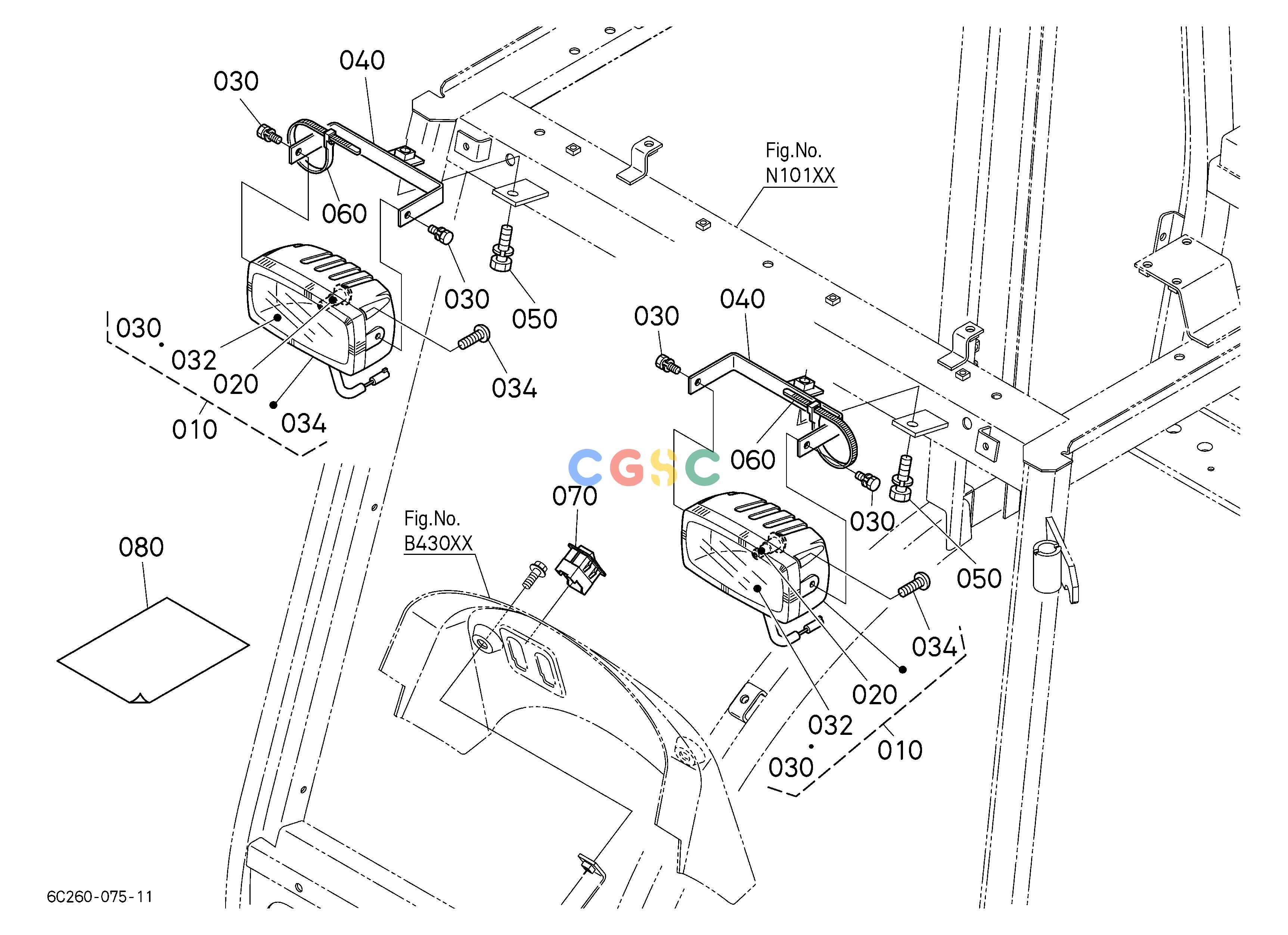

久保田零件查询U80501 WORKING LIGHT KIT (FRONT) (W/G No.B7359) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
877 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T127575302
|
[2] |
LIGHT,WORK
|
0.5500(lbs); 0.250
|
| 020. |
T127591060
|
[2] |
BULB
|
0.0220(lbs); 0.010
|
| 030. |
T127591070
|
[4] |
BOLT
|
0.0154(lbs); 0.007
|
| 032. |
T127575340
|
[2] |
LENS
|
0.0990(lbs); 0.045
|
| 034. |
T127575350
|
[8] |
SCREW
|
0.0022(lbs); 0.001
|
| 040. |
6C23074420
|
[2] |
STAY,WORKING LIGHT
|
0.2970(lbs); 0.135
|
| 050. |
0113351020
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 060. |
5358164150
|
[2] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 070. |
T106575360
|
[1] |
SWITCH,F WORKING LIGHT
|
0.0440(lbs); 0.020
|
| 080. |
99999-99999
|
[1] |
MANUAL(ASSEMBLY)
|
0.0000(lbs); 0.000
|
