神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-052[01]) - CONDITIONER INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
677 次

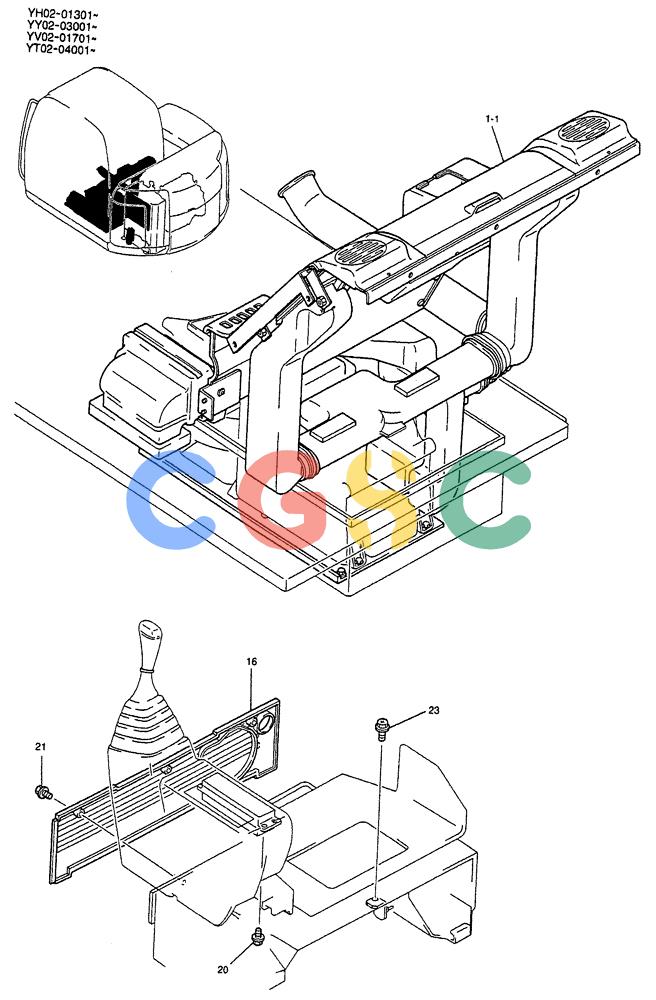

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT20M00010F1 | [1] | AIR CONDITIONER | KOBINSTAL |
| 1. | YT20M01073F1 | [1] | COVER ASSY | KOB |
| 1-1. | YT20M01035F1 | [1] | COVER | KOB |
| 1-1A. | YT20M01087P1 | [1] | COVER | KOB |
| 1-1B. | YT20M01088P1 | [1] | COVER | KOB |
| 1-1C. | YT20M01089P1 | [1] | COVER | KOB |
| 1-1D. | YT20M01090P1 | [1] | COVER | KOB |
| 1-1E. | YT20M01095P1 | [1] | COVER | KOB |
| 1-16. | YT20M01094P1 | [1] | PIN | KOB |
| 1-1L. | YT20M01035S011 | [2] | CATCH | KOB |
| 1-1M. | YT20M01035S012 | [4] | SCREW | KOB Superseded by part number: ZS32T50010 |
| 1-1N. | YT20M01035S013 | [16] | SCREW | KOB |
| 1-2. | YN20M01055P1 | [2] | GRILLE | KOB |
| 1-3. | YN20M01024P1 | [2] | SUPPORT | KOB |
| 1-4. | YN17M01033D1 | [4] | SCREW | KOBM05x25mm |
| 1-5. | ZW16P05000 | [4] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 1-6. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 1-7. | ZN18C05004 | [4] | NUT | KOBM05x0.8mm |
| 1-8. | PY03M01102P1 | [1] | GROMMET | KOB |
| 1-9. | YT20M01040P1 | [5] | BOLT | KOB |
| 1-10. | YT20M01041P1 | [5] | GROMMET | KOB |
| 1-13. | YN60C01036P1 | [1] | GROMMET | KOB |
| 2. | YT03M01004P1 | [1] | SUPPORT | KOB |
| 3. | YT03M01038P1 | [1] | SUPPORT | KOB |
| 4. | YT20M01082P1 | [1] | SUPPORT | KOB |
| 5. | YT20M01083P1 | [1] | SUPPORT | KOB |
| 6. | YT20M01080P1 | [1] | RUBBER | KOB |
| 7. | YT20M01048P2 | [1] | DUCT | KOB |
| 8. | YT20M01049P1 | [1] | DUCT | KOB Superseded by part number: YT20M01049P2 |
| 9. | YT20M01050P1 | [1] | DUCT | KOB Superseded by part number: YT20M01050P2 |
| 10. | YT20M01051P1 | [1] | DUCT | KOB |
| 11. | YT20M01052P2 | [1] | DUCT | KOB |
| 12. | YT20M01053P1 | [1] | DUCT | KOB |
| 13. | YT20M01054P1 | [1] | DUCT | KOB |
| 14. | YT20M01103P1 | [1] | BRACKET | KOB |
| 16. | YT03M01061P1 | [1] | COVER | KOB |
| 18. | YT20M01099P1 | [1] | FOAM INSULATION | KOB |
| 19. | YT20M01042P1 | [5] | CATCH | KOB |
| 20. | ZM46C05012 | [4] | BOLT | KOBM05x0.8x12mm (Incls. Washer & Lockwasher) |
| 21. | ZM46C05016 | [3] | BOLT,Phillip, M5 x 0.8 x 15mm | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) |
| 22. | ZM61C06012 | [4] | BOLT | KOBM06x1.0x12mm (Incls. Washer & Lockwasher) |
| 23. | ZM61C06016 | [1] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 24. | ZM61C06020 | [1] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) |
| 25. | ZM22C08020 | [19] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
