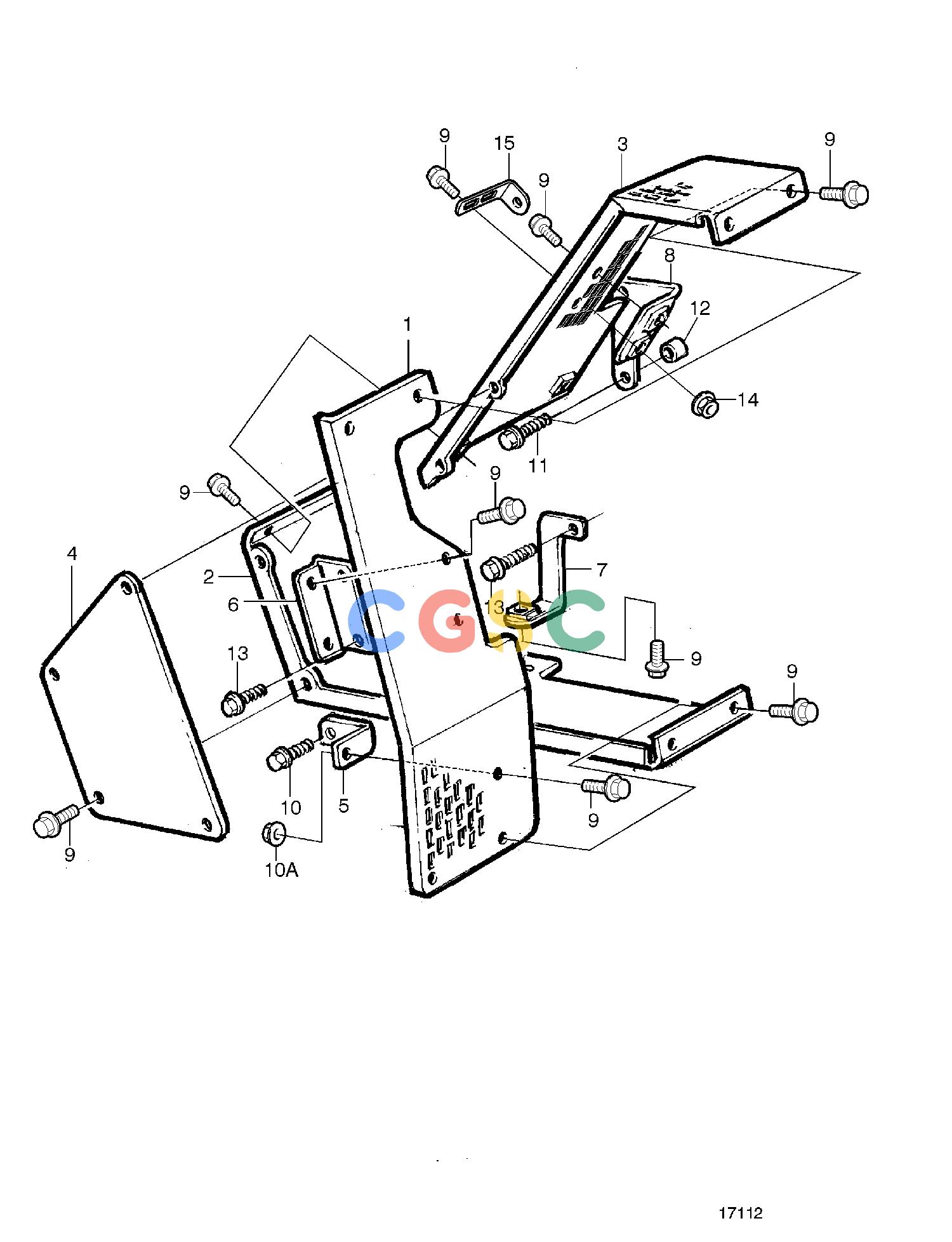

沃尔沃零件查询TAMD74A; TAMD74A-A; TAMD74A-B; TAMD74C-A; TAMD74C-B; TAMD74L-A; TAMD74L-B; TAMD74P-A; TAMD74P-B; TAMD75P-ACooling SystemBelt Guard for Engine with Radiator CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3826375
|
[1] |
Belt protector
|
|
| 2. |
3825631
|
[1] |
Belt protector
|
|
| 3. |
3825632
|
[1] |
Belt protector
|
|
| 4. |
3825633
|
[1] |
Protecting plate
|
|
| 5. |
965556
|
[1] |
Bracket
|
(3825634)
|
| 6. |
3825635
|
[1] |
Bracket
|
|
| 7. |
3825636
|
[1] |
Bracket
|
|
| 8. |
3827541
|
[1] |
Bracket
|
|
| 9. |
967949
|
[16] |
Flange screw
|
(965175)
|
| 10. |
946440
|
[1] |
Flange screw
|
M8x16mm
|
| 10A. |
945407
|
[1] |
Flange nut
|
M6
|
| 11. |
965216
|
[2] |
Flange screw
|
M8x55mm
|
| 12. |
843075
|
[2] |
Spacer sleeve
|
|
| 13. |
|
|
|
See group 21
|
| 14. |
949278
|
[1] |
Flange lock nut
|
|
| 15. |
965558
|
[1] |
Bracket
|
|
