斗山零件查询INJECTION PUMP DRIVE SOLAR 340LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
737 次

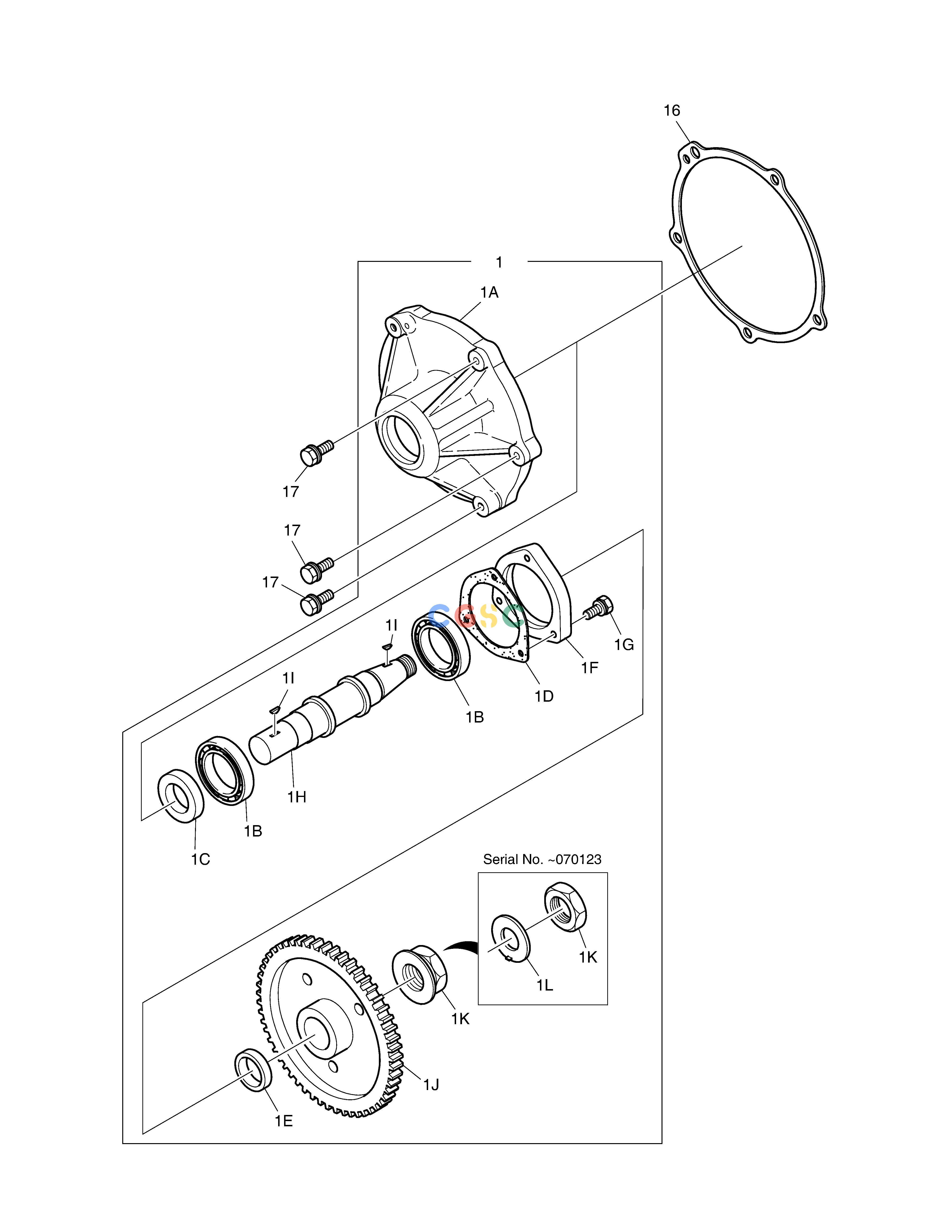

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.11301-7010F
|
[1] |
INJECTION DRIVE ASS'Y
|
65.11301-7010G
|
| 1. |
65.11301-7010G
|
[1] |
INJECTION DRIVE ASS'Y
|
|
| 1. |
65.11301-7019A
|
[1] |
INJECTION DRIVE ASS'Y
|
|
| 16. |
65.11902-0017
|
[1] |
GASKET
|
|
| 17. |
06.01913-3218
|
[3] |
BOLT ASS'Y M10X35
|
65.90020-0079
|
| 17. |
65.90020-0079
|
[3] |
BOLT;HEX ASS'Y M10X35
|
|
| 1A. |
65.11309-0007A
|
[1] |
HOUSING;INJECTION DRIVE
|
|
| 1A. |
65.11309-0011C
|
[1] |
HOUSING;INJECTION DRIVE
|
|
| 1B. |
06.32092-0307
|
[2] |
. BEARING;TAPER ROLLER
|
|
| 1B. |
06.32092-0308
|
[2] |
BEARING;TAPER ROLLER
|
|
| 1C. |
65.01510-0039
|
[1] |
. SEAL;OIL
|
|
| 1C. |
65.01510-0038
|
[1] |
SEAL;OIL
|
|
| 1D. |
65.11308-0001
|
[1] |
SHIM 0.50mm
|
|
| 1D. |
65.11308-0002
|
[1] |
. SHIM 0.20mm
|
|
| 1D. |
65.11308-0003
|
[1] |
. SHIM 0.15mm
|
|
| 1D. |
65.11308-0004
|
[1] |
. SHIM 0.10mm
|
|
| 1D. |
65.11308-0050
|
[1] |
|
|
| 1D. |
65.11308-0049
|
[1] |
|
|
| 1D. |
65.11308-0048
|
[1] |
|
|
| 1E. |
65.91701-0219
|
[1] |
SPACER
|
|
| 1F. |
65.11312-0007
|
[1] |
COVER
|
|
| 1F. |
65.11312-0008
|
[1] |
COVER
|
|
| 1G. |
06.01913-3115
|
[3] |
BOLT ASS`Y M8X25
|
|
| 1H. |
65.11302-0009A
|
[1] |
SHAFT
|
65.11302-0009B
|
| 1H. |
65.11302-0009B
|
[1] |
SHAFT
|
|
| 1H. |
65.11302-0019A
|
[1] |
SHAFT
|
|
| 1I. |
06.29141-0215
|
[2] |
KEY;WOODRUFF
|
|
| 1J. |
65.11301-0013C
|
[1] |
GEAR;INJECTION PUMP DRIVE
|
65.11301-0013D
|
| 1J. |
65.11301-0013D
|
[1] |
GEAR;INJECTION PUMP DRIVE
|
|
| 1J. |
65.11301-0026A
|
[1] |
GEAR;INJECTION PUMP DRIVE
|
|
| 1K. |
06.11250-4329
|
[1] |
NUT;HEX M24X1.5
|
|
| 1K. |
65.90640-0021
|
[1] |
NUT;HEX. M24X1.5
|
|
| 1L. |
06.16050-0316
|
[1] |
. WASHER;LOCK
|
|
