神钢零件查询(ED150) - BLADE RUNNER EXCAVATOR/DOZER BTW YL04-00501 - YL04-00554 (4/03-10/03) (01-054) - CONDITIONER ASSEMBLY, AIR P/N YT20M00009F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
963 次

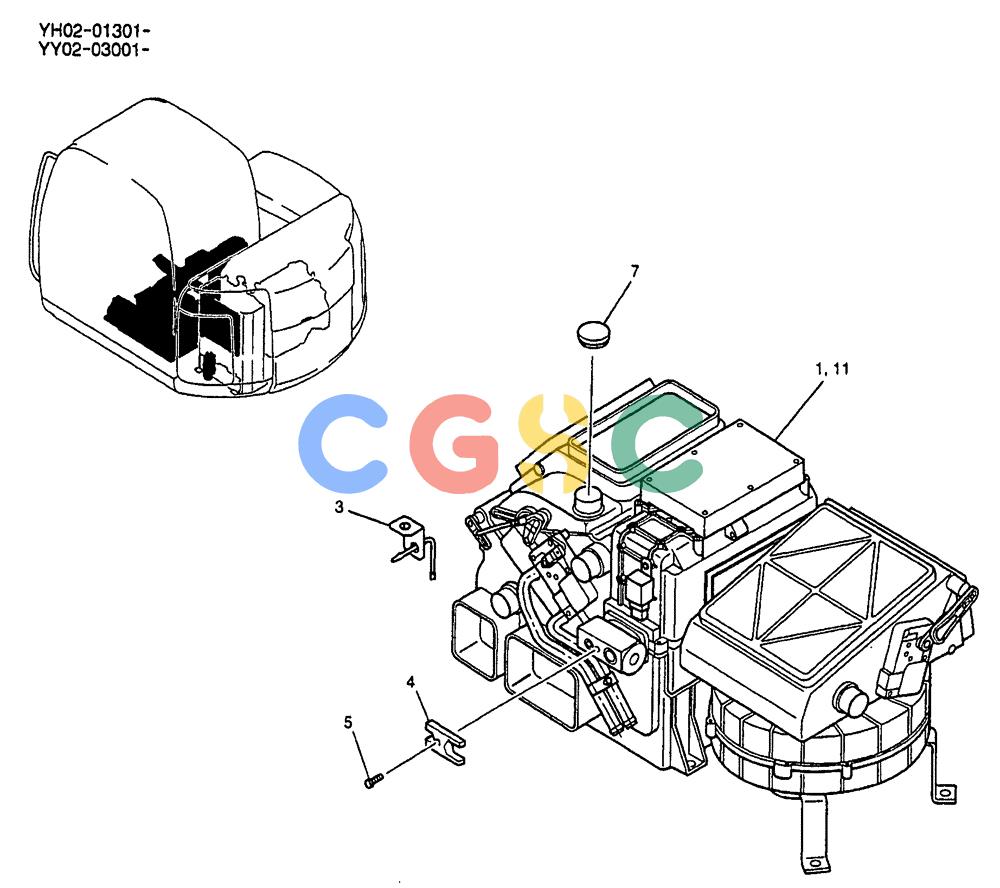

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT20M00009F1 | [1] | AIR CONDITIONER | KOB |
| 1. | YT20M00004F1 | [1] | CONDITIONING UNIT | KOBSEE FIG 01-058 Superseded by part number: YT20M00004F2 |
| 3. | YT52S00003F1 | [1] | SENSOR | KOB |
| 4. | YT20M01077P1 | [1] | PLATE | KOB |
| 5. | YT20M00009S005 | [1] | BOLT | KOB |
| 7. | YT20M00009S006 | [1] | CAP | KOB |
| 11. | YT20M00004F2 | [1] | AIR CONDITIONER,Assembly | KOBSEE FIG 01-058 |
