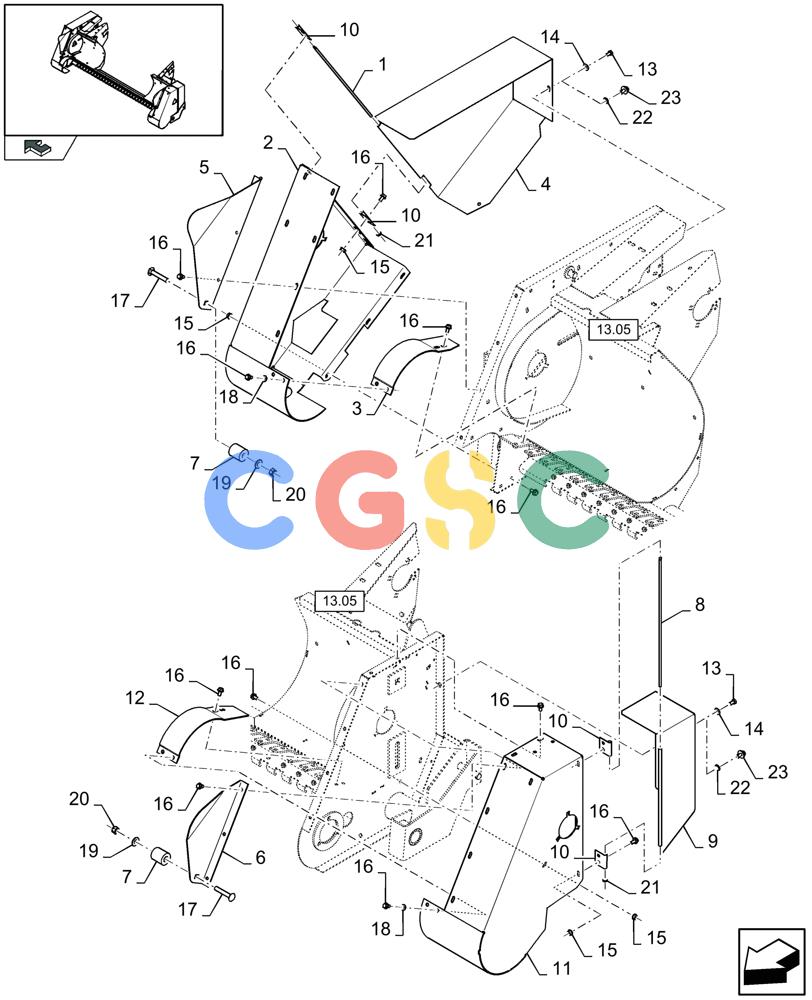

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (08.22[01]) - PICK UP SHIELDINGS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
696 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84137917
|
[1] |
CLEVIS PIN
|
ZED
|
| 2. |
87628487
|
[1] |
SHIELD
|
ZED
|
| 3. |
84607744
|
[1] |
SHIELD
|
ZED
|
| 4. |
84137914
|
[1] |
SHIELD
|
ZED
, Serial Range: -C799
|
| 4. |
84199034
|
[1] |
SHIELD
|
ZED
, Start Serial: D800
|
| 5. |
84607742
|
[1] |
COVER PLATE
|
ZED
|
| 6. |
84607741
|
[1] |
COVER PLATE
|
ZED
|
| 7. |
395087
|
[2] |
INSULATOR BLOCK
|
ZED
|
| 8. |
9837915
|
[1] |
ROD
|
ZED
|
| 9. |
87658117
|
[1] |
DOOR
|
ZED
, Serial Range: -C799
|
| 9. |
84199033
|
[1] |
SHIELD
|
ZED
, Start Serial: D800
|
| 10. |
84607734
|
[4] |
HINGE
|
ZED
|
| 11. |
87628491
|
[1] |
SHIELD
|
ZED
|
| 12. |
84607745
|
[1] |
SHIELD
|
ZED
|
| 13. |
120103
|
[2] |
BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
, Serial Range: -C799 Superseded by part number: 16043224
|
| 14. |
378243
|
[2] |
WASHER,8.4mm ID x 21mm OD x 1.6mm Thk
|
NH
, Serial Range: -C799 Superseded by part number: 63707, 63707, 86625263
|
| 15. |
86505868
|
[13] |
SERRATED NUT,Hex, M8 x 1.25, Cl 8
|
ZED
|
| 16. |
86511478
|
[31] |
BOLT,Hex Serr, M8 x 1.25 x 16mm
|
ZED
|
| 17. |
338263
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8
|
ZED
|
| 18. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 19. |
378245
|
[2] |
WASHER,13mm ID x 28.5mm OD x 2.7mm Thk
|
NH
|
| 20. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 21. |
84429041
|
[2] |
LOCKING RING
|
ZED
|
| 22. |
9514605
|
[2] |
LOCK WASHER,9.8mm ID x 18.5mm OD x 1.5mm Thk
|
ZED
, Start Serial: D800
|
| 23. |
9514603
|
[2] |
LOCK,1/4 Turn, 28.8mm OAL
|
CUR
, Start Serial: D800
|
